Beschreibung

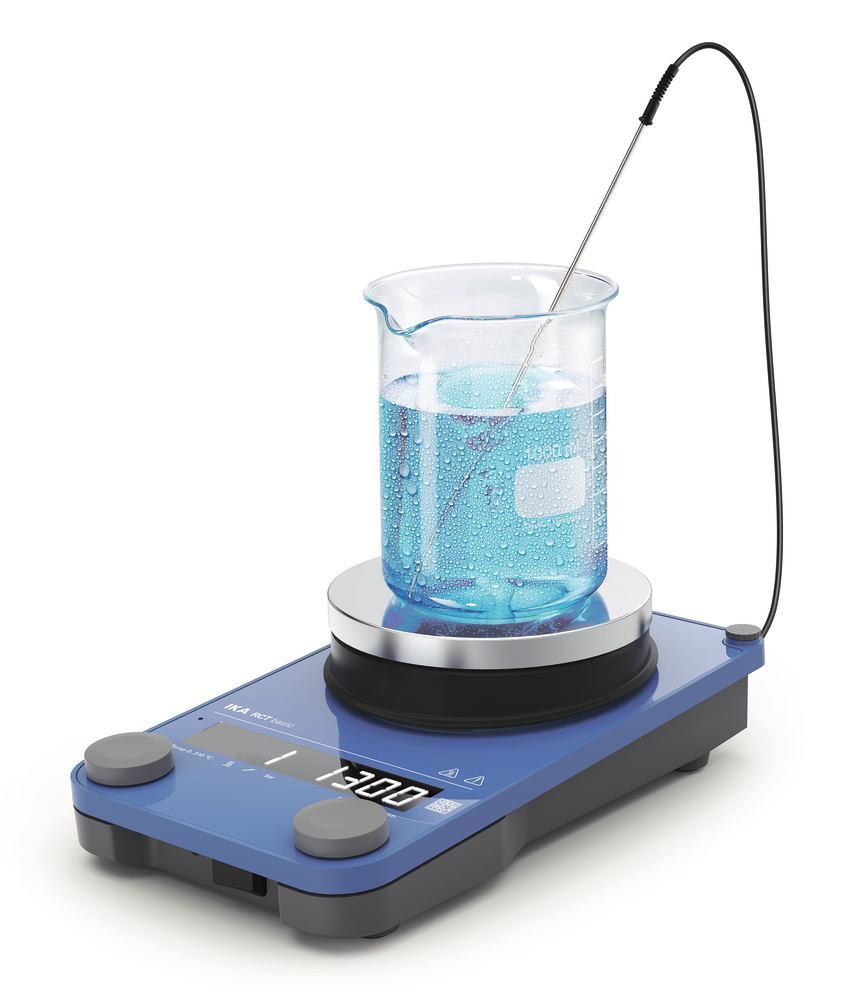

RCT basic heater and magnetic stirrer, 50-1500/min, 20 l, incl. Pt 1000 temperature sensor and 2 magnetic bars
- Temperature and speed adjustment via LED display
- Surface made of hardened, shatterproof glass
- Can be directly connected to Pt 1000 medium measuring probe (please order accessories for fastening the sensor separately)
- Integrated contact thermometer with full functionality
- The temperature control function automatically switches off if the externally connected temperature sensor is not immersed in the medium or is defective
- DIN socket 12878 for connection to an electronic contact thermometer, e.g. ETS-D5 for accurate temperature control (please order separately, see contact thermometer). Control accuracy with ETS-D5: ±0.5 K
- Adjustable safety circuit for the hot plate temperature (50 to 360 °C)
- Warning of hot surface if residual heat on hot plate is >50 °C
- USB and RS 232 interfaces
Delivery incl. Pt 1000 temperature sensor and 2 magnetic bars.
Technical Information
| Type | RCT basic |
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 20 l |
| Speed range | 50 to 1500 rpm |
| Speed display | digital |
| Motor power input | 16 W |
| Motor power output | 9 W |
| Hotplate material | aluminium alloy |
| Operating temperature | 13 °C above ambient temperature up to 310 °C |
| Temperature display | digital |
| Setting accuracy | ±1 K |
| Control accuracy without sensor | ±5 K |
| Control accuracy with sensor | Pt 1000: ±1 KETS-D5: ±0,5 K |
| Heating output | 600 W |
| Footprint | Ø 135 mm |
| W x D x H, total | 160 x 270 x 85 mm |
| Weight | 2.4 kg |
| Mains connection | 220-230 V, 50/60 Hz |
