Beschreibung

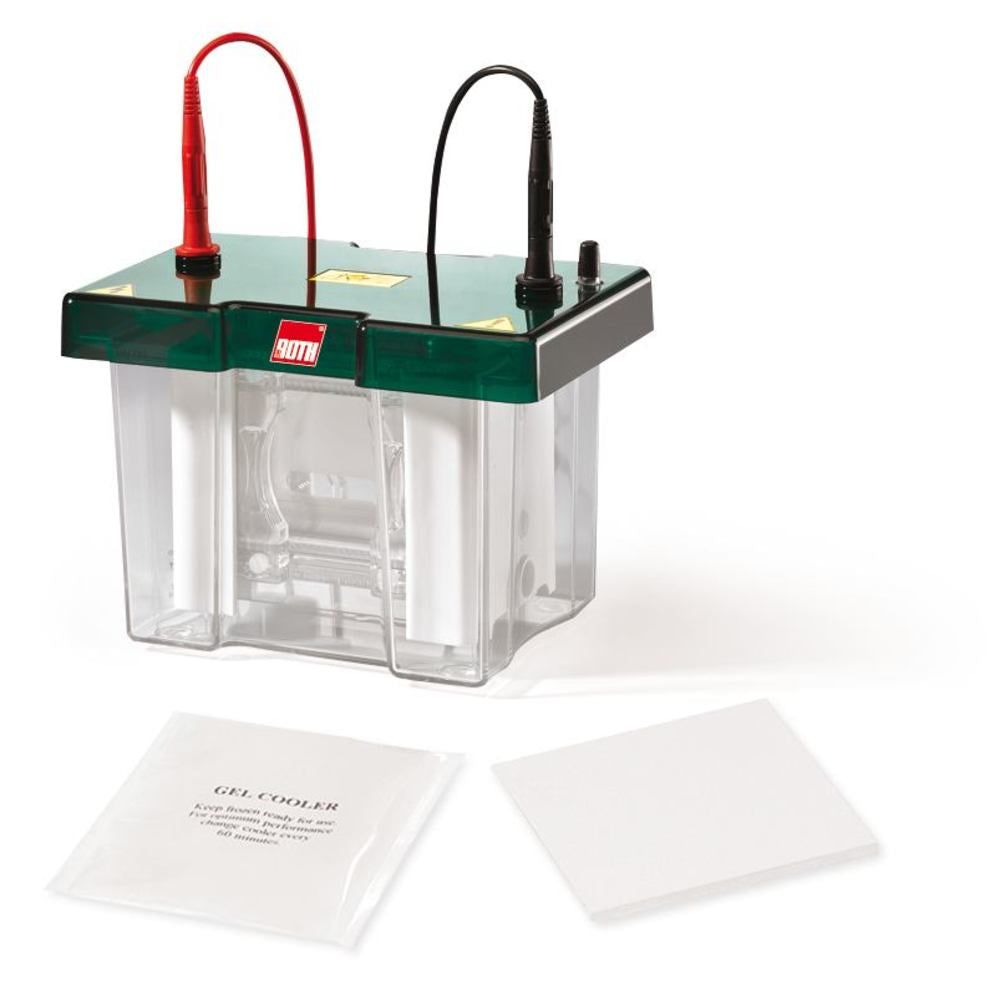

ROTIPHORESE® Unit PROclamp MINI, set for precast gels, glass plates, 10 x 10 cm, incl. buffer tank, lid, power leads (4 mm plugs), running module, dummy plate, gel cooling set.
Material: PMMA (Acrylic glass).
The PROclamp Line - vertical Double Electrophoresis Units with Clamping SystemThe fast-clamping technique allows rapid and easy-to-handle insertion of glass plates and ready-made gels.
General features:
- For running of up to 4 gels in parallel
- Extensive range of accessories incl. glass plates with fixed spacers and suitable blotting modules available
- Colour coded spacers and combs in up to 5 thicknesses available - 0,5 up to 2 mm
- Compatible with multi-channel pipettors (combs are marked *)
- Effective buffer cooling independent of running water or chillers
- Modular system: Tanks are compatible with different electrophoresis modules, keeping costs and space to a minimum.
Tight and leak-proof insertion of glass plates in seconds - by modern fast-clamping techniques (MINI: clamps, MAXI: waves).
Electrophoresis Unit ROTIPHORESE® PROclamp MINI
- Electrophoresis chamber with accessories - ready for use
- Compatible with all major brands of 10 × 10 cm precast gels
- With fast-clamping technique
- Up to 20 samples per gel
- Effective buffer cooling independent of running water or chillers
Delivery incl. 1 vertical electrophoresis chamber incl. buffer tank, safety lid and 2 cables (4 mm plugs), 1 running module, 1 dummy plate for run of one gel only, 1 gel cooling pack.For run of 3 or 4 gels, please additionally order PROclamp MINI notched glass plates with fixed spacers (e.g. thickness 1 mm, Art. No. 3563.1) and suitable combs (e.g. Art. No. 3638.1).Complete SetAdditionally included: 2 glass plates with fixed spacers (thickness 1 mm), 2 notched glass plates, 2 combs (thickness 1 mm, 12 wells), 1 gel opener, 1 gel casting module for rapid and leak-proof gel casting.Set with Accessories 2 glass plates with fixed spacers (thickness 1 mm), 2 notched glass plates, 2 combs (thickness 1 mm, 12 wells), 1 gel opener.When using precast gels only a maximum of 2 gels can be run simultaneously.
Technical Information
| Type | PROclamp MINI set for precast gels |
| L x W, glass plate | 10 x 10 cm |
| Max. number of samples | 80 |
| Buffer volume | 100 / 300 ml |
| L x W x H, device | 13 x 19 x 15 cm |
| Suitable for | Polyacrylamide gels |
