Beschreibung

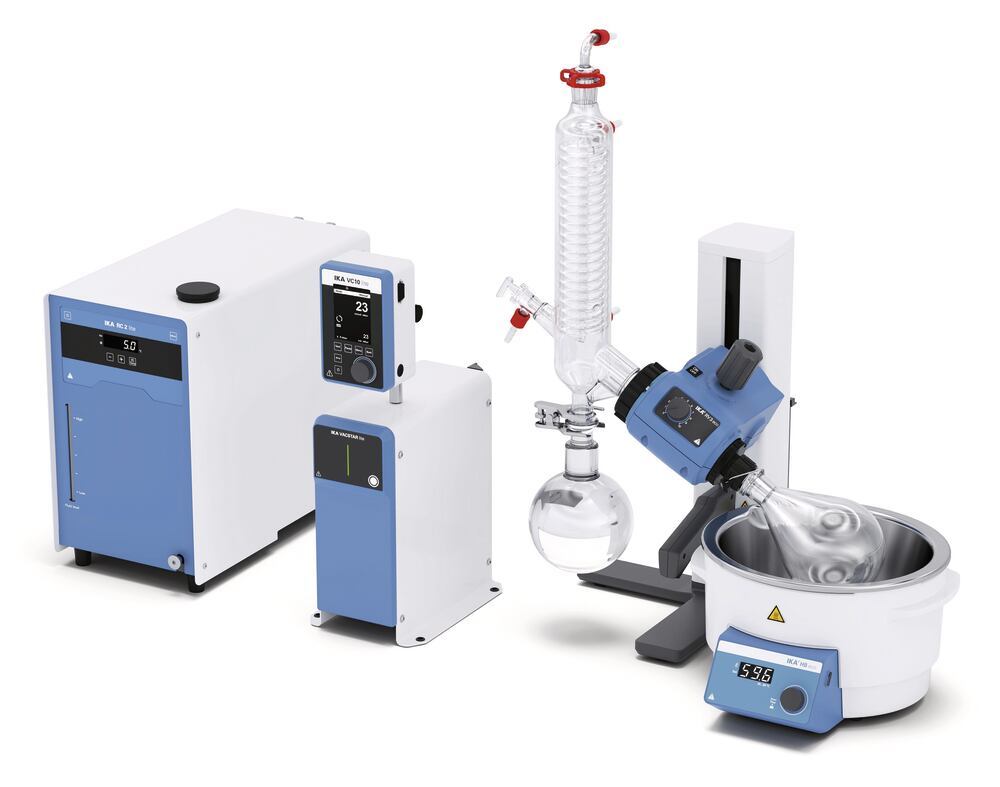

RV 3 V rotary evaporator Starter Sol., Complete package, non-coated glassware, incl. heating bath and vertical glassware. With PTFE inlet tube, 1000 ml receiving flask (KS 35/20), 1000 ml evaporating flask (NS 29/32), VACSTAR lite vacuum pump, VC 10 lite vacuum controller, RC 2 lite recirculating chiller, hose set (5 m water hose, 3 m vacuum hose) and 4 hose clamps.
Usable in the chemical, pharmaceutical and bio-industry, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering.
- 4 l water heating bath with digital temperature display and handles
- Mechanical end stop for lift
- Manual lift
- Adjustable insertion angle
- Continuous speed adjustment via rotary knob and display scale
- Piston fixture with integrated push-off mechanism for easy changing of evaporating flasks
All components and connections necessary for operation are included.
Delivery incl. heating bath and vertical glassware. With PTFE inlet tube, 1000 ml receiving flask (KS 35/20), 1000 ml evaporating flask (NS 29/32), VACSTAR lite vacuum pump, VC 10 lite vacuum controller, RC 2 lite recirculating chiller, hose set (5 m water hose, 3 m vacuum hose) and 4 hose clamps. Non-coated glassware.
Technical Information
| Type | RV 3 V Starter Solution complete package |
| Version | vertical cooler |
| Glassware | non-coated |
| Speed range | 20 to 300 rpm |
| Temperature range | to 99 °C |
| Heating output | 1350 W |
| Setting accuracy | 1 K |
| Control deviation | ±1 K |
| Bath volume | 4 l |
| Heating bath width | 330 mm |
| Heating bath length | 190 mm |
| Heating bath height | 325 mm |
| Integrated vacuum controller | no |
| Hose connectors | for hoses ID 8 mm (water and vacuum hose) |
| L x W x H, total | 440 x 330 x 530 mm |
| Weight | 24 kg |
| Mains connection | 100-240 V, 50/60 Hz |
