Beschreibung

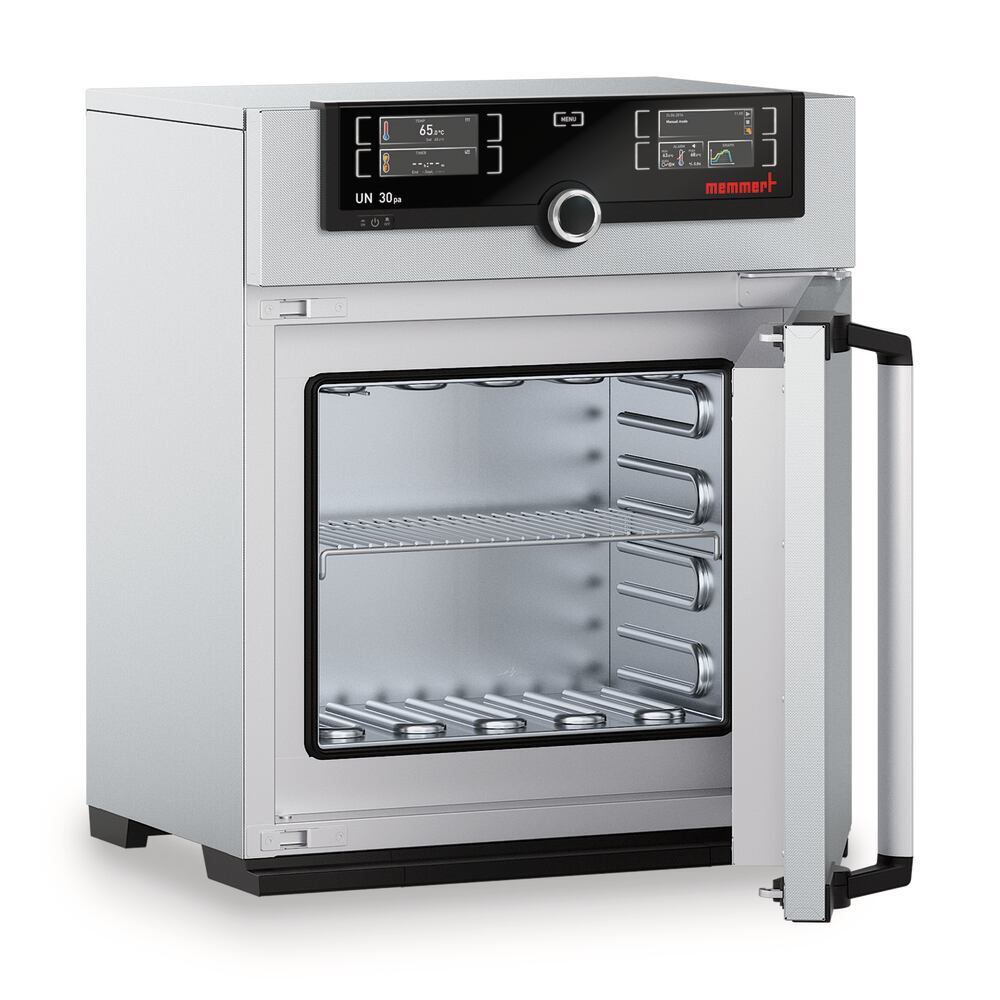

UN30pa paraffin oven, 32 l, max. 80 °C, twin TFT display, incl. one stainless steel grate and factory calibration certificate. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For tempering embedding media such as paraffin or wax. Designed for sample preparation in histology, pathology or microbiology.
General features:
- Stainless steel interior (1.4301)
- Fully insulated stainless steel door
- Textured stainless steel housing
- Safety thanks to multiple overheating protection
- No intake and exhaust air, therefore almost gastight interior
- Incl. factory calibration certificate valid for +80 °C
Other features:
- Operating temperature range from 5 °C above room temperature to 80 °CSet temperature from 20 to 80 °CAdjustment accuracy 0.1 K
- German, English, French and Spanish language options
- Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation
- “SetpointWAIT” function - process time does not start until the target temperature is reached
- Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime and graphical display of program flow
- Integrated data logger with ten-year memory
- Display of recorded log data (max. 10,000 values correspond to approx. one week) directly on the device
- Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50 to +50%
- With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging
- Definition of individual min./max. values for protection against excessive/insufficient temperatures
- USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs)
Delivery incl. stainless steel grids (models 30 and 55: one grate, models 75 to 160: two grates). Factory calibration certificate for +80 °C. There are additional transport costs for delivery to the point of use. We are happy to provide you with these on request.
Technical Information
| Type | UN30pa |
| Vol. | 32 l |
| Operating temperature | from 5 °C above room temperature up to 80 °C |
| Inner width | 400 mm |
| Inner height | 320 mm |
| Inner depth | 250 mm |
| Outer width | 585 mm |
| Outer height | 704 mm |
| Outer depth | 490 mm |
| Max. removable shelves | 3 |
| Power consumption | 1600 W |
| Temporal temp. variance | ±0,5 °C |
| Spatial temp. deviation | ±2,0 °C |
| Weight | 61 kg |
| Mains connection | 230 V, 50/60 Hz |
