Beschreibung

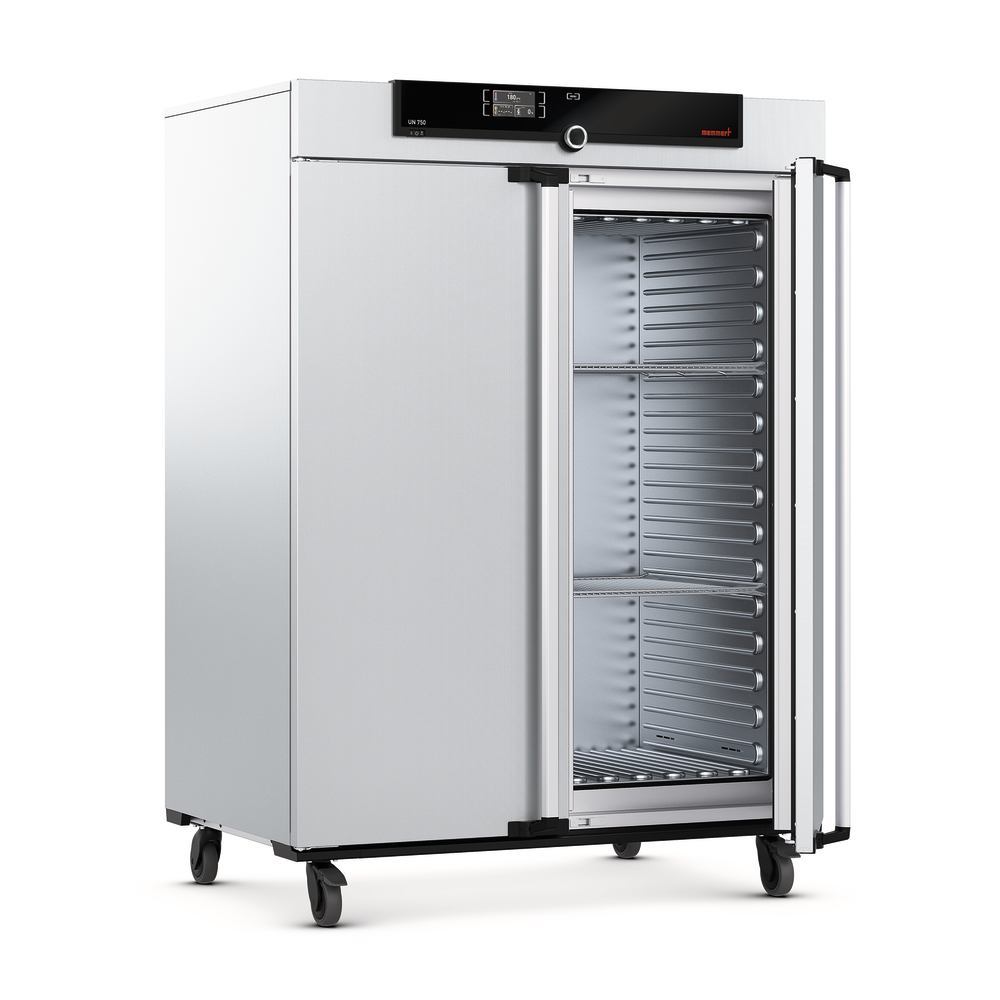

Univ. warming and drying cabinet UN 750, 749 l, max. 300 °C, single TFT-display, nat. convection, incl. 2 stainl.steel grids, power supply 400 V (CEE plug)
Models: UN, UNplus, UF and UFplus
General features:
- Stainless steel interior (1.4301)
- Fully insulated stainless steel door (two-wing from size 450 upwards)
- Fresh air supply by electronically adjustable exhaust air flap
- Textured stainless steel housing
- Model sizes 450 and 750 with moveable and lockable rollers
- Interior depth minus 39 mm for devices with forced air circulation
- Depth plus door handle 56 mm
- Incl. factory calibration certificate valid for +160 °C
- Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz
Other features:
- German, English, French and Spanish language options
- Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation
- “SetpointWAIT” function - process time does not start until the target temperature is reached
- Operating temperature range from 5 °C above room temperature to 300 °C Setting temperature from 20 to 300 °CSetting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K
- Graphical single TFT display with touch screen for operation and displaying temperature, program runtime and air flap position
- Integrated data logger with 10-year memory
- With Ethernet communication port for reading out log data
- Protection against overheating
Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
| Type | UN 750 |
| Vol. | 749 l |
| Operating temperature | from 5 °C above room temperature to 300 °C |
| Inner width | 1040 mm |
| Inner height | 1200 mm |
| Inner depth | 600 mm |
| Outer width | 1224 mm |
| Outer height | 1726 mm |
| Outer depth | 784 mm |
| Max. removable shelves | 14 |
| Power consumption | 7000 W |
| Temporal temp. variance | <±1,1 °C |
| Spatial temp. deviation | <±6,0 °C |
| Weight | 215 kg |
| Mains connection | 400 V, 3 phases, 50 Hz |
