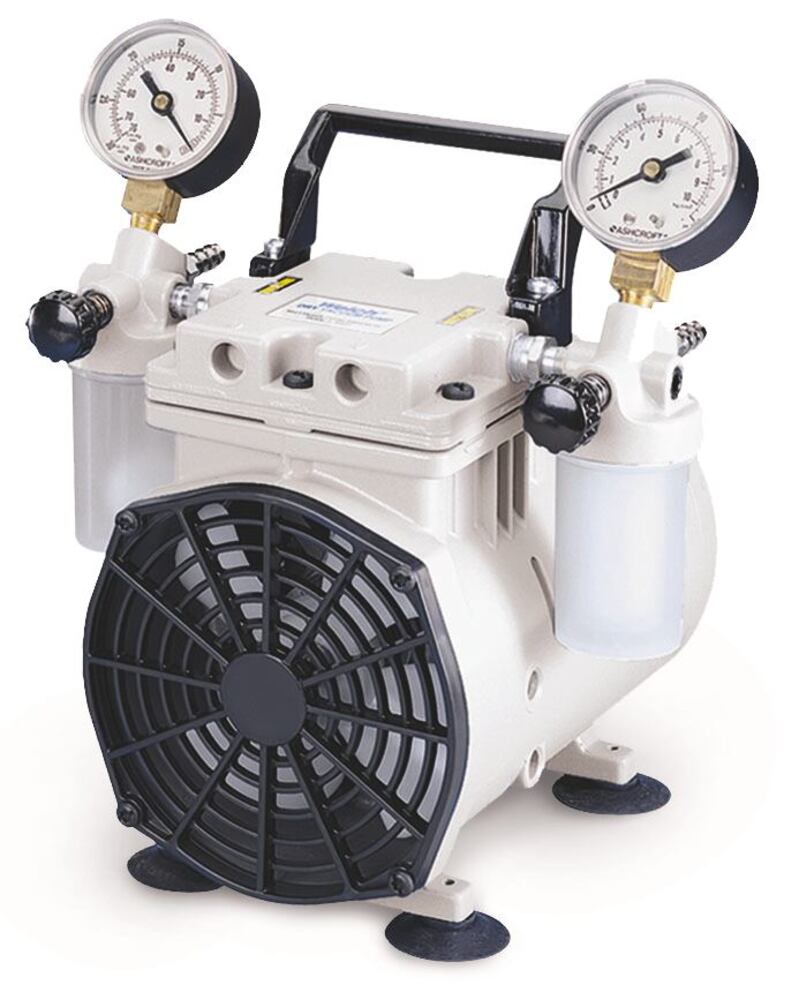

WOBL-2546 piston pump, 38.0 l/min, 80 mbar
Oil-free vacuum pump that can also be used as a compressor for pressurised applications. For conveying and compressing air and neutral gases.
- Compact, lightweight design; aluminium housing; wetted parts treated with corrosion protection
- Oil-free/lubricant-free piston and cylinder
- Regulator on the suction side (negative pressure/vacuum) and pressure side (overpressure) for setting and reading the pressure level
- Water separator on the suction side: float ball rises to protect the pump from accidental water ingress
- Silencer with air filter on the pressure side: reduces noise and filters the exhaust air
Application: For vacuum filtration, vacuum drying, evacuation of desiccators, aspiration.
Technical Information
| Type | WOB-L® 2546 |
| Suction capacity (l/min) | 38.0 |
| Suction capacity (m³/h) | 2.3 |
| End vacuum (abs.) | 80 mbar |
| Overpressure | 5,2 bar |
| Media temperature | +10 - +40 °C |
| Connection | for hose inner Ø 8 mm |
| Motor power | 190 W |
| Ambient temperature | +10 - +40 °C |
| L x W x H | 254 x 191 x 229 mm |
| Weight | 6,3 kg |
| Mains connection | 230 V, 50 Hz |
