Description

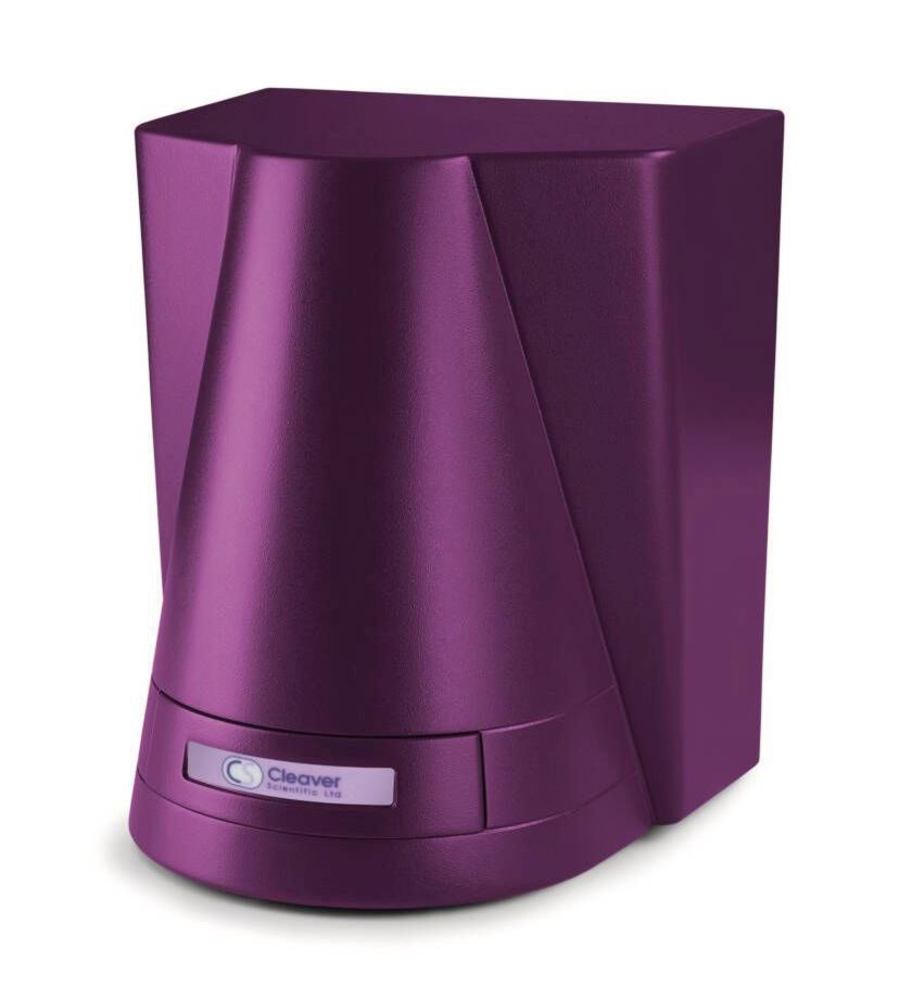

Chemiluminescence documentation system, chemiLITE, for Western blot imaging
Compact documentation system for Western blot imaging.
General properties:
- Suitable for Western blots up to 11 x 8 cm
- Peltier-cooled CCD camera (-56 °C)
- White light for blot positioning
- Acquisition software: genePIX Image Capture
- Analysis software: geneQUANT Image Analysis
- Image storage formats: TIFF, GLP-compliant format
Not a medical device / Not an IVD product
chemiLITE system with genePIX acquisition software and geneQUANT analysis software.
Technical Information
| Suitable for | Western blots |
| Use | Western blot imaging |
| Usable for | Detection of target proteins on Western blot membranes |
| Number of pixels | 16 |
| Port | USB |
| Outlet connection | USB port |
| Minimum PC requirements | Windows system USB port |
| Recording software | GenePix Image Capture |
| Mains connection | 115-240 V, 50/60 Hz |
| Length | 37.5 cm |
| Weight | 15 kg |
| Type (camera) | Cooled CCD camera |
| Resolution (camera) | 4 MP |
| Dimensions (transilluminator) | 11 x 8 cm |
| Shutter (lens) | F0.95 |
