Description
Counting chamber Neubauer, large, square centre, 16 group squares,, with 2 spring clamps
Material: glass.

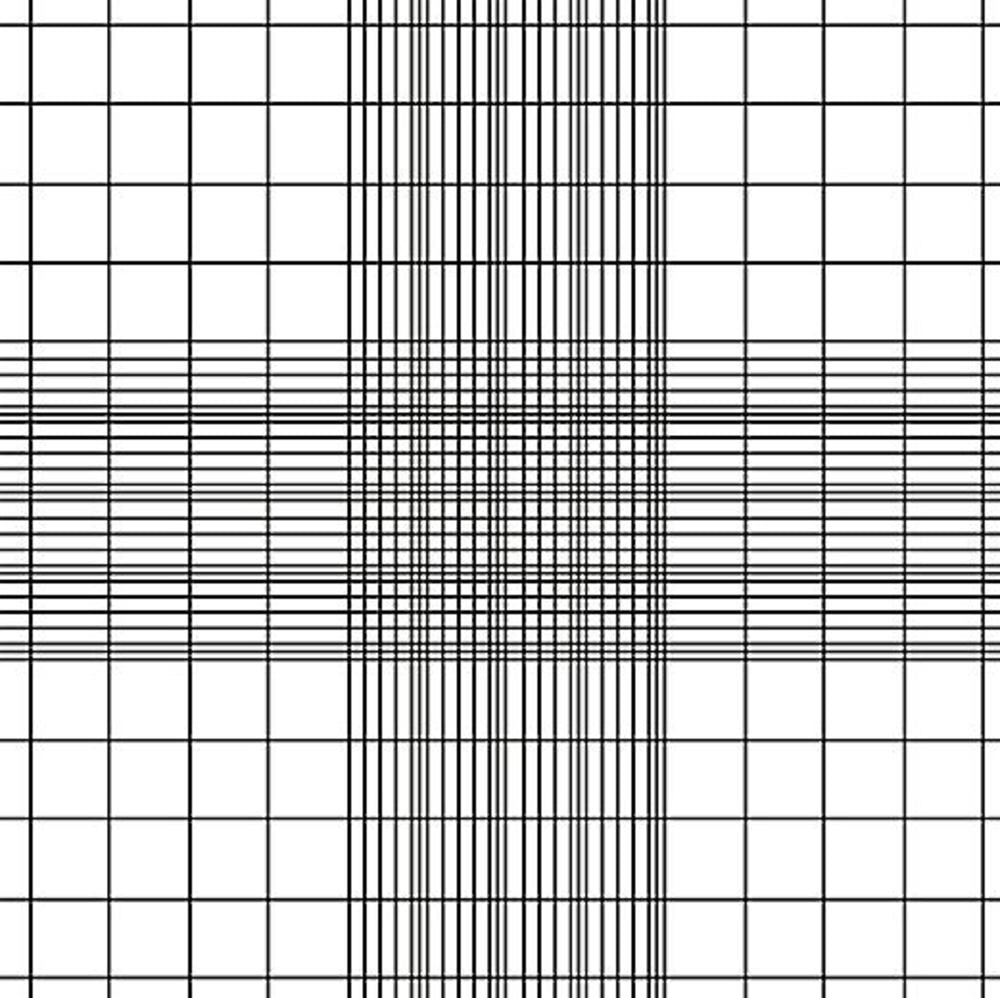

Double counting grid. Counting grid with nine large squares. The smallest square in the centre is split into 16 group squares and these in turn are split into 16 small squares.
- Large square: 1 mm2
- Group square: 0.04 mm2
- Small square: 0.0025 mm2
The counting grid appears under the microscope as a grid of dark lines. Spring clips securely fix the coverslip to the counting chamber.
In vitro diagnostic medical device class A
Delivery incl. two haemocytometer coverslips (20 x 26 mm).
Technical Information
| Version | With 2 spring clamps |
| Chamber depth | 0.1 mm |
