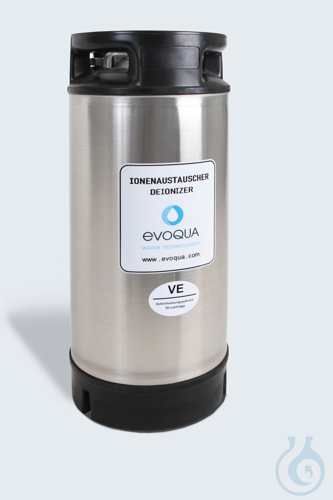

SG-2800 Deionizer 20,5 Liter Resin volume
Mixed bed deionizer with tube fitting (3/4'') filled with MB400 mixed bed resin.
Mixed bed resin ion exchangers are used to generate demineralized water. These high-quality stainless steel ion exchangers (1.4571)) can be operated with a working pressure of max. 10 bar. Our optimized channel flow ensures superior resin bed usage.
Technical data:
Connections cartridge: Tube Fitting 3/4'' male thread
Nominal capacity: 2800 l up to 20µS/cm at 10°dH total salt content
Perm. water temp. max.: 40°C
Max. flow rate: 800 l/h
Resin charge: 20,5 l
Max. pressure: 10 bar
Diameter: 239 mm
Tank height: 560 mm
Conductivity meters, hoses and electrodes are available separately.
