Description

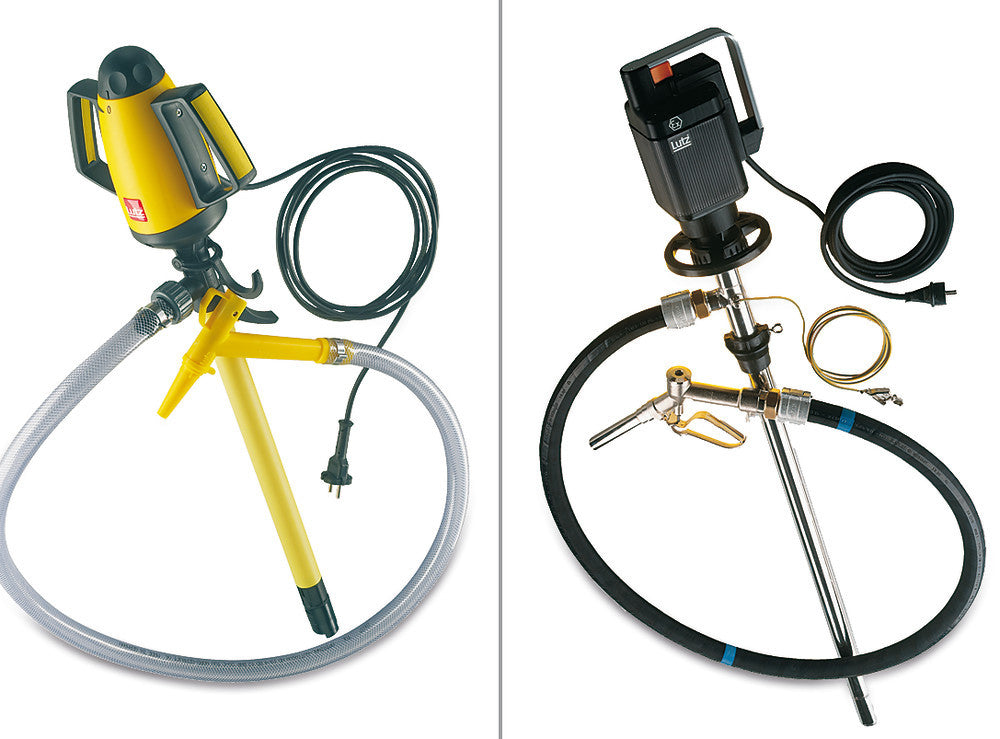

Electro barrel pump, set 5 Ex, Edelstahl, 460W, immers. D of pipe 1000mm, 95 l/min
Material: brass, PTFE, Immersion tube made of stainless steel.
To pump fluid media out of large containers.
For highly flammable hydrocarbons, such as ethanol, gasoline, isopropanol, kerosene, methanol, petroleum, etc.
Material:
- Nozzle made of brass/PTFE
- Immersion tube made of stainless steel
Delivery incl. 2.0 m coolant hose 3/4″ (DN 19), conductive hose connections, nozzle, equipotential bonding, PP barrel adapter, safety plug not protected against explosions. Universal motor protected against explosions according to ignition protection category II 2 G EEx de IIC T6 (ATEX), stainless steel pump system protected against explosions according to ignition protection category Ex II 1/2 G IIB T4 (ATEX).
Technical Information
| Version | 5 Ex |
| Motor Ex-protected | yes |
| Delivery rate | 95 l/min |
| Immersion depth | 1000 mm |
| Delivery height | 14 nWC |
| Density | 1.6 kg/dm³ |
| Viscosity | 350 mPa·s |
| Performance | 460 W |
| Cable length | 5 m |
| Mains connection | 230 V, 50 Hz |
