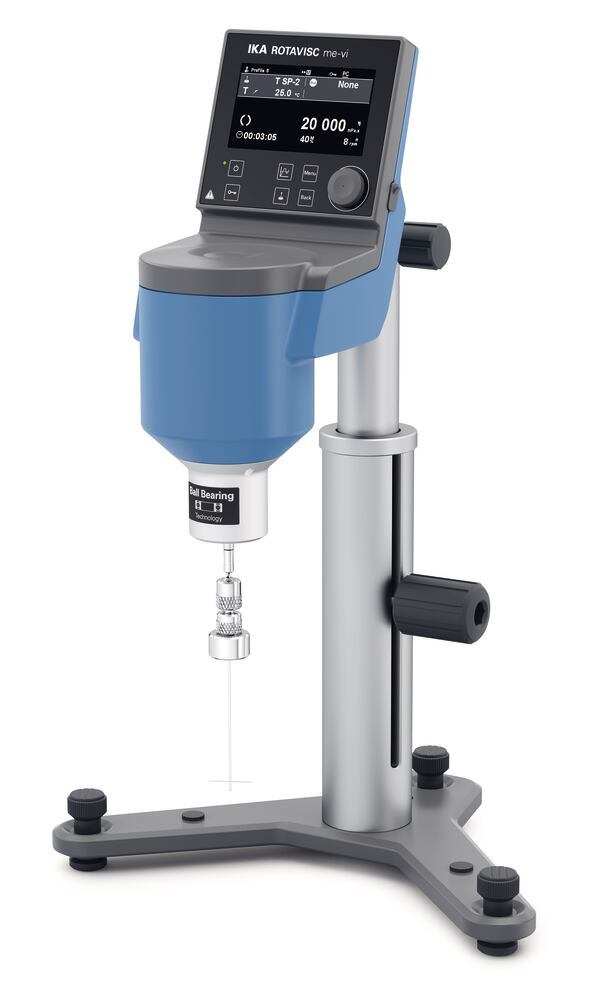

Rotationsviskosimeter Rotavisc me-vi, Complete, 100 - 40000000 mPa s, Incl. standard spindle set (SP7 to SP12), protective bracket, temperature sensor and ROTASTAND stand
For determining the viscosity of liquids. 4.3″ TFT display with intuitive menu guidance. Digital spirit level supports the correct set-up of the start-up condition. Five user-defined “ramp” profiles can be set. Accuracy for Newtonian and non-Newtonian liquids is ±1% of the measuring range, the reproducibility is ±0.2%. Speed is infinitely adjustable. Also with graph function. RS 232 and USB interface. Connection for external Pt 100 temperature measuring sensor.
Viscosity measuring range of 100 to 4,000,0000 mPa·s.
Delivery incl. standard spindle set (SP 7 to SP 12), protective bracket, temperature sensor and ROTASTAND stand.
Technical Information
| Type | me-vi Complete |
| Measuring range | 100-4,000,0000 mPa·s |
| Accuracy | 1 % |
| Speed range | 0,01 to 200 rpm |
| Speed accuracy | ±0,01 rpm |
| Timer | 0.017 to 6000 min or continuous operation |
| Temperature resolution | 0.1 K |
| Height-adjustability | 200 mm |
| W x D x H | 351 x 372 x 629 mm |
| Weight | 7,1 kg |
| Mains connection | 100-240 V, 50/60 Hz |
