Description

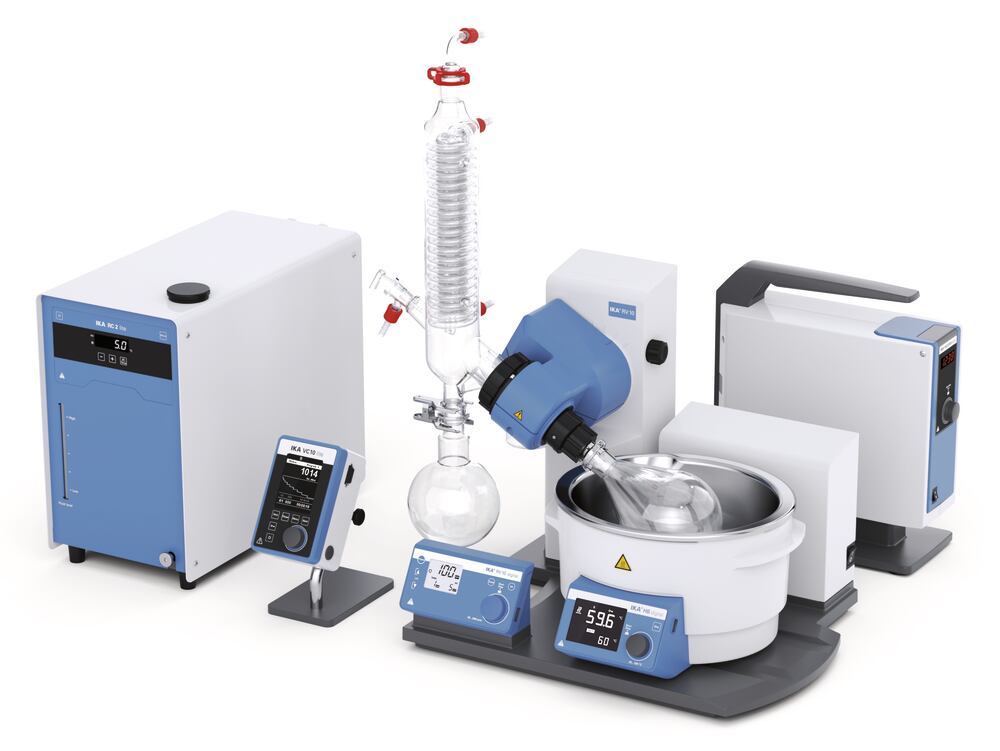

RV 10 digital V-C rotary evaporator, Complete package, coated glassware, incl. heating bath and vertical glassware. With PTFE inlet tube, 1000 ml receiving flask (KS 35/20), 1000 ml evaporating flask (NS 29/32), VACSTAR digital vacuum pump, VC 10 lite vacuum controller, RC 2 lite recirculating chiller, hose set (5 m water hose, 3 m vacuum hose) and 4 hose clamps. Coated cooler and receiving flask for shatter protection.
General features of all models:
- Motorised lift (stroke displacement 140 mm) with adjustable height limit
- Digital speed display
- Heating bath with digital temperature display
- Control deviation ±1 K
- Rotates intermittently clockwise and anticlockwise for drying processes (interval cycle for direction reversal is adjustable from 1 to 60 s)
- Timer function for time lapse controls (1 to 199 min)
- Water/oil heating bath with integrated carry handles
- Heating bath with adjustable safety circuit
- Push-off mechanism to loosen tightly fitting flasks
- Includes Woulff bottle
- Available in two versions: with standard glassware or coated glassware (condenser and receiving flask are coated for shatter protection)
- Infrared interface for data transfer between the heating bath and drive unit
- RS 232 interface
All components and connections necessary for operation are included.
Delivery incl. heating bath and vertical glassware. With PTFE inlet tube, 1000 ml receiving flask (KS 35/20), 1000 ml evaporating flask (NS 29/32), VACSTAR digital vacuum pump, VC 10 lite vacuum controller, RC 2 lite recirculating chiller, hose set (5 m water hose, 3 m vacuum hose) and 4 hose clamps.
Technical Information
| Type | RV 10 digital pro V-C complete package |
| Version | vertical cooler |
| Glassware | coated |
| Speed range | 5 to 280 rpm |
| Operating temperature | ambient temperature to +180 °C |
| Heating output | 1350 W |
| Setting accuracy | 1 K |
| Control deviation | ±1 K |
| Bath volume | 4 l |
| Heating bath width | 330 mm |
| Heating bath length | 190 mm |
| Heating bath height | 325 mm |
| Adjustable head angle | 0–45 ° |
| Integrated vacuum controller | no |
| Hose connectors | for hoses ID 8 mm (water and vacuum hose) |
| L x W x H, total | 500 x 440 x 430 mm |
| Weight | 28 kg |
| Mains connection | 220-240 V, 50/60 Hz |
