Description

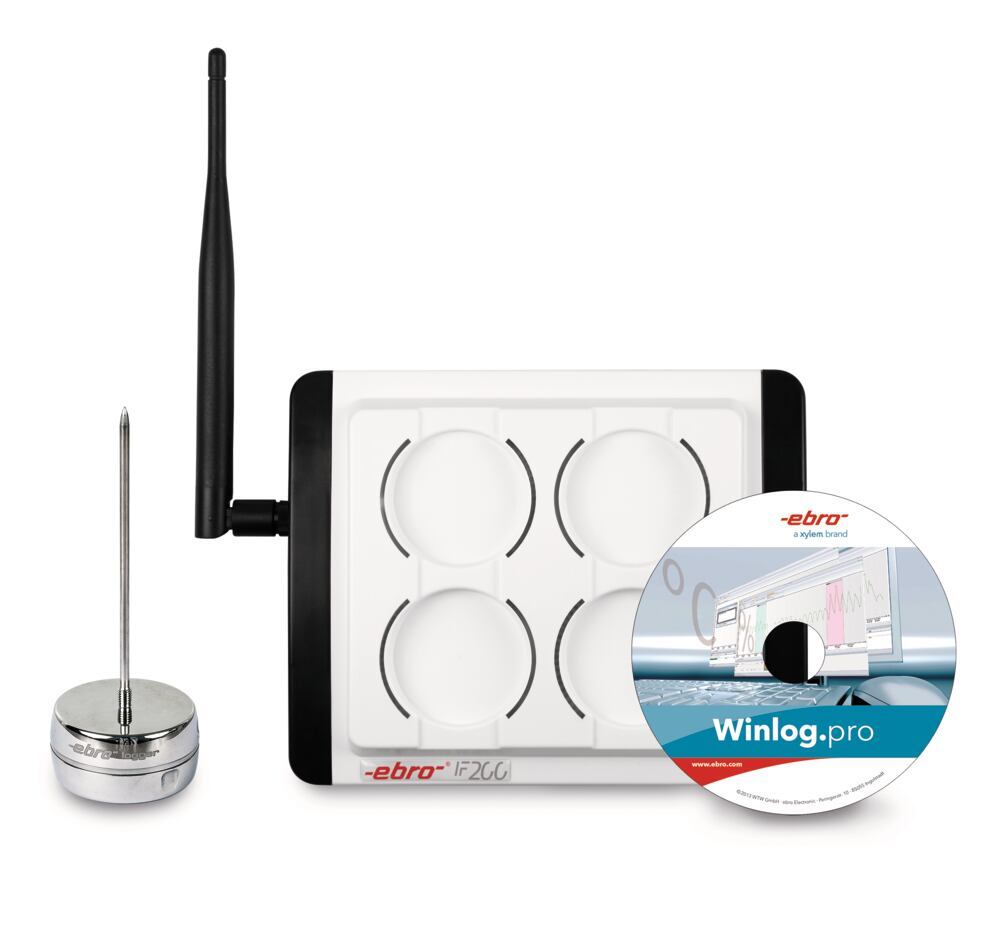

EBI 12 T-237 data logger in a set, for temperature, includes IF 200 interface, software, calibration certificate and batteries. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For temperature monitoring/checking in the food and pharmaceutical industries. With factory calibration certificate.
Application: pasteurisation monitoring, food safety, determining PE values, determining F0 values.
- An M5 thread is provided for fastening the sensor to the product
- The logger is powered by replaceable lithium batteries (temperature-resistant)
- The interface is used to connect it to a PC (USB interface)
- The Windows-compatible software is required to program the logger and to read out and print the data
For monitoring pasteurisation, e.g. in tins or jars.
Delivery incl. IF 200 interface, software, calibration certificate and batteries.
Technical Information
| Type | EBI 12-T237 set |
| Calibration | factory calibration (test points: 0, +60, +134 °C) |
| Parameters | temperature |
| Temperature measuring range | -55 to +150 °C |
| Temperature resolution | 0.01 °C |
| Temperature accuracy | ±0.5 °C (-55 to -40 °C) ±0.2 °C (-40 to 0 °C) ±0.1 °C (0 to +150 °C) |
| Sensor type | Pt 1000, class A |
| Data memory | 27,840 measured values |
| Measuring cycle | 1 s to 24 h |
| IP rating | 68 |
| Ø x H | 48 x 24 mm |
| Sensor: Ø x L | 3 x 100 mm |
| Power supply | 2x 3.6 V/1/2 AA lithium battery |
