Description

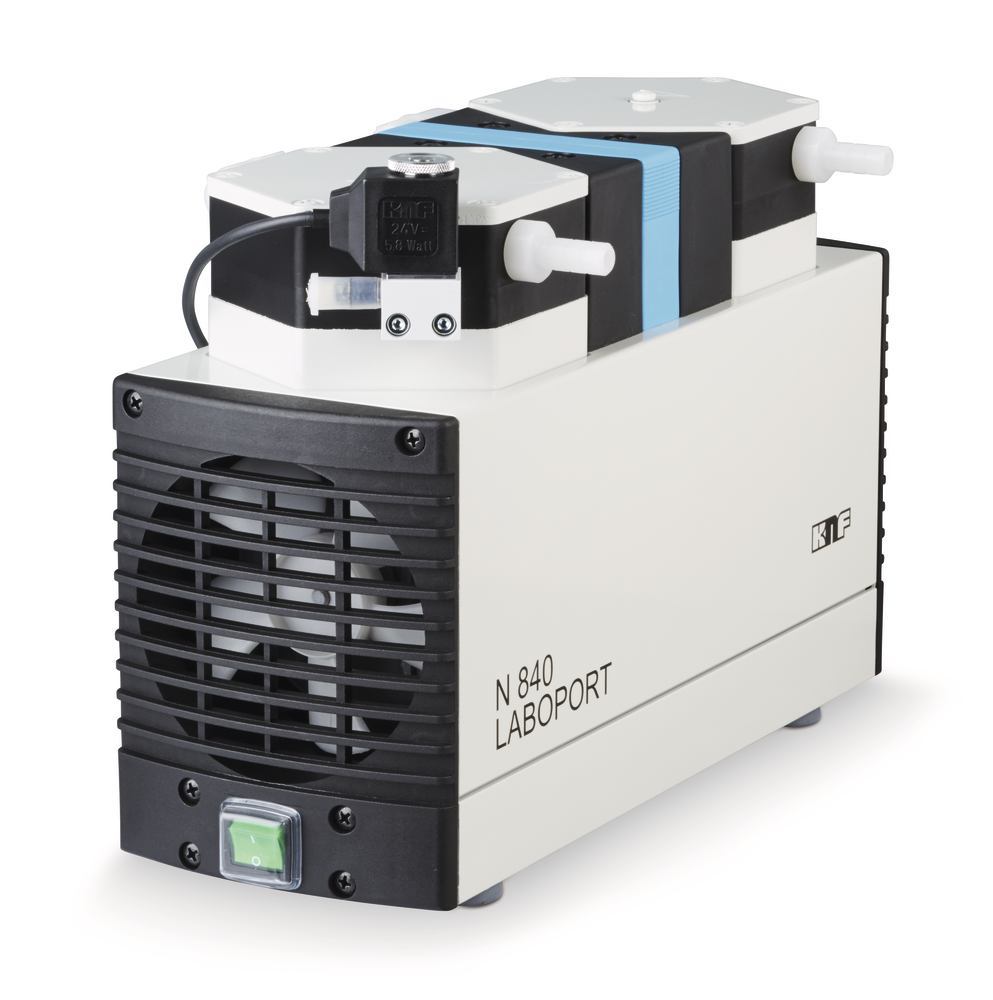

LABOPORT® SD vacuum pump, N840.3FT.40.18, 34 l/min
Chemical-resistant, suitable for highly aggressive and corrosive gases and vapours.Self-drying, for moist gases: during the evacuation process, the pump blows condensate liquid out of the pump heads at high speed. The vacuum remains constant during this application.Application:for applications such as steam sterilisers or vacuum drying in vacuum drying ovens, to significantly speed up the evacuation time.
- High steam and condensate resistance
- Gas-tight, leak rate approx. 6 x 10-3 mbar x l/s
- With thermal switch and mains fuse
Technical Information
| Type | N 840.3 FT.40.18 |
| Suction capacity (l/min) | 34.0 |
| Suction capacity (m³/h) | 2.0 |
| End vacuum (abs.) | 10 mbar |
| Overpressure | 1 bar |
| Media temperature | +5 - + 40 °C |
| Connection | for hose inner Ø 10 mm |
| Motor power | 245 W |
| Ambient temperature | +5 - + 40 °C |
| IP rating | 44 |
| Materials in contact with media | pump head: PTFE diaphragms: PTFE-coated valves: FFPM |
| W x D x H | 189 x 341 x 239 mm |
| Weight | 12,9 kg |
| Mains connection | 230 V, 50 Hz |
