Description

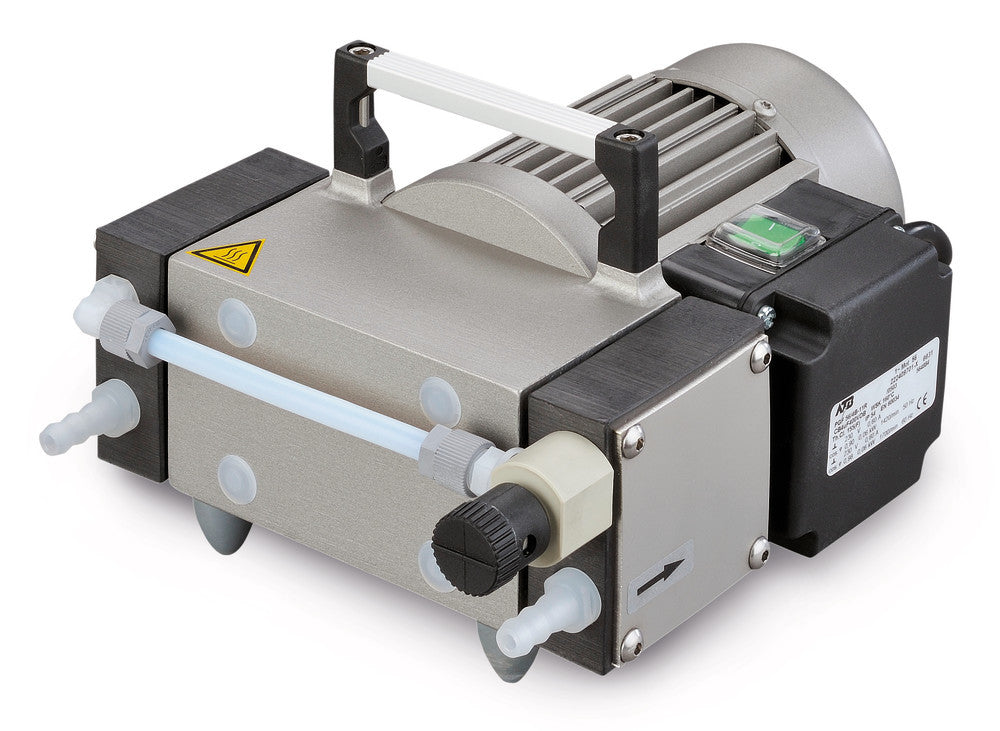

Membrane contr. pump, MPC 101Z, 2-stages, 16.7 l/min, final vacuum <8 mbar
Ideal for pumping and compressing neutral and aggressive gases and vapours.With integrated gas ballast valve for reducing condensate formation within the pump head.
Application: in physical and chemical laboratories for vacuum filtration, distillation, drying, etc.
Technical Information
| Type | MPC 101 Z |
| Cylinder | 2 |
| Steps | 2 |
| Suction capacity (l/min) | 17.0 |
| Suction capacity (m³/h) | 1.0 |
| End vacuum (abs.) | <8 mbar |
| End vacuum abs. with gas ballast | 18 mbar |
| Media temperature | +10 - +40 °C |
| Connection | for hose inner Ø 8 mm |
| Motor power | 60 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 54 |
| Materials in contact with media | connection/pump head: PTFE with carbon fibre reinforcement seal: EPDM screw fitting: PVDF valves: PEEK diaphragm disc: NBR |
| W x D x H | 195 x 225 x 147 mm |
| Weight | 6,5 kg |
| Mains connection | 230 V, 50/60 Hz |
