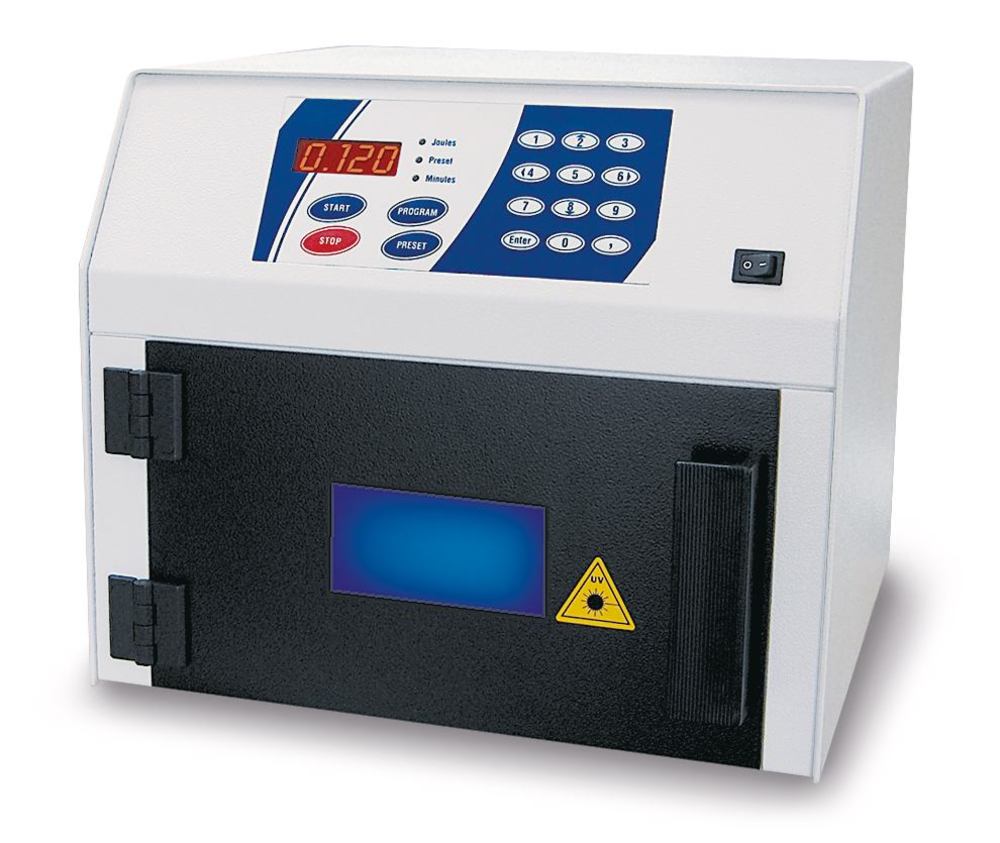

UV-Crosslinker Short Wave
The UV crosslinker provides a compact unit occupying minimum bench space with a footprint of only 350 × 350 mm and a spacious interior chamber of 270 × 300 × 145 mm. As with all our products, safety is a major consideration so the door of the crosslinker is safety interlocked against opening during operation and the observation window in the door is ultraviolet blocking.
Features:
- Programmable microprocessor control
- UV energy monitored automatically
- Compact footprint with large interior
- Observation window - UV blocking
- Membrane keypad operation
- Clear LED display
- Safety interlocked
The ultraviolet energy is continuously monitored by an accurate microprocessor controlled photo feedback system which compensates for variation in output from the UV sources. In this way consistency of operation and maximum efficiency are maintained.
Possible applications:
- Fixing of nucleic acids to nylon or nitrocellulose membranes
- Southern or Northern blotting, dot blotting and colony or ple lifts
- Elimination or reduction of PCR contamination
- Nicking ethidium bromide stained DNA in agarose gels
- Gene mapping for creating cleavage inhibiting thymine dimers
- Screening RecA mutation
- Ultraviolet curing of polymers, adhesives and inks
- Ultraviolet sterilisation
Technical Information
| Type | Short Wave |
| Wavelength | 254 nm |
| Light source | 5 × 8 W UV lamps |
| Performance | 0-99,99 Joule / 0-9,999 Joule |
| Display type | LED display |
| Operation | Membrane keypad operation |
| Program | Programmable microprocessor control 9 preset ultraviolet energy levels 9 preset exposure times Manual adjustment of the UV energy level |
| Timer | 0-999,9 min |
| W x D x H | 270 x 300 x 145 mm |
| W x D x H, total | 350 x 350 x 300 mm |
| Weight | 10,5 g |
