Description

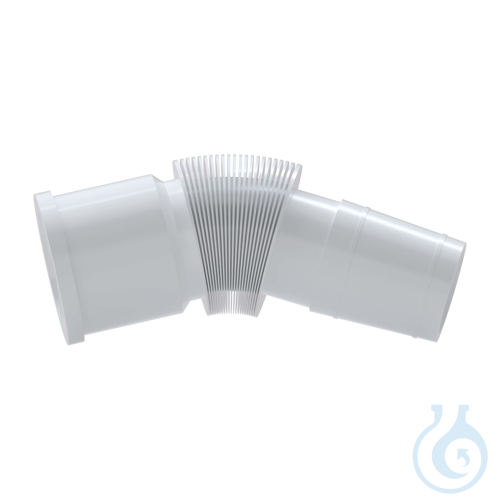

BOLA bellows NS 19/26 – NS 19/26 PTFE with pointed folds are flexible ground-joint connectors for mid-size laboratory glassware that must tolerate angular offset. Fabricated from polytetrafluoroethylene (PTFE), they incorporate pointed folds and sealing rings on the outside of the ground-joint cone, supporting deflection of up to 120°. Socket and cone both conform to NS 19/26 (European standard), creating a continuous NS 19/26 interface suitable for distillation columns, reactors, and vacuum lines built on this joint size. Total length varies between a minimum of 93 mm and a maximum of 105 mm, combining modest axial extension with the lateral freedom of the fold geometry. Net weight is 0,051 kg. Offered as a single piece from manufacturer Bohlender, these PTFE bellows serve routine laboratory applications where chemical resistance, cleanability, and reliable sealing at NS 19/26 joints are required without introducing metal or soft elastomer components into the process stream.
This article is part of Distillation heads, adapters & columns, in Distillation & extraction glassware.
Key features
- Pack size: 1 pc
- Material: Polytetrafluoroethylene (PTFE)
- Joint size: NS 19/26 socket and NS 19/26 cone
- Design: Pointed folds with external sealing rings on cone
- Deflection: up to 120°
- Total length: 93–105 mm
Recently viewed
You may also like
Browse related categories
Category
Distillation & extraction glassware
Sub-category
Distillation heads, adapters & columns
Catalogue
Brand
Questions about BOLA Bellows, NS 19/26 - NS 19/26 PTFE, with sharp folds
What is this article?
BOLA Bellows, NS 19/26 - NS 19/26 PTFE, with sharp folds is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Distillation heads, adapters & columns, inside Distillation & extraction glassware, in Labware.
A still head, an adapter or a column is the glass between the boiling flask and the condenser. A Vigreux or packed column gives the vapour a surface so a closer-boiling mixture can separate. The joint sizes at both ends have to match the flask and the condenser.
Distillation separates liquids by boiling point. A condenser turns the vapour back into liquid: Liebig, coil and cold-finger shapes differ in how much cooling surface they offer. A still head and a column sit between the flask and the condenser. A Soxhlet extractor washes a solid again and again with the same solvent. Ground joints have a standard size, and the joint, not the flask, is what has to match. The pieces are indexed under ISO laboratory glassware.
Which category should I open next?
The category is Distillation & extraction glassware. The sub-category is Distillation heads, adapters & columns. The catalogue is Labware.
Shelves beside this one are Condensers, Ground-joint glassware (other) and Soxhlet & extraction apparatus.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
How does ordering and shipping work?
Luminix Health distributes this article from the heart of Europe. Articles in stock ship within 2–5 business days. Standard delivery is free from €250 excl. VAT. Cold-chain goods and dangerous goods under ADR are never included in that free delivery. The terms are in the Shipping Policy. The full brand index is on shop by brand. Who we are is on about us.
