Description

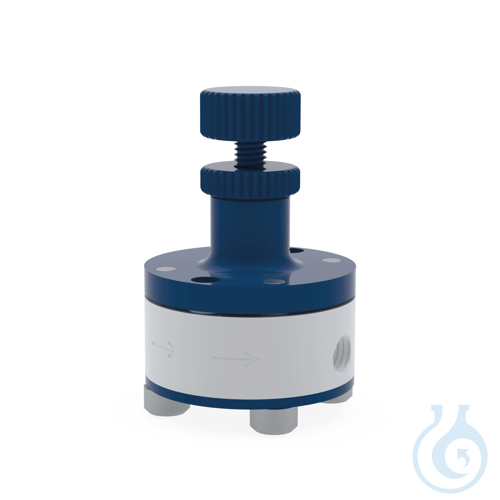

BOLA Mini pressure retaining valves with UNF 1/4'' 28 G ports provide adjustable pressure retention for laboratory tubing circuits. The flow body is made of polytetrafluoroethylene (PTFE) and carries two internal-thread UNF ¼" 28G connections. The valve itself is constructed from PPS and incorporates an adjusting screw plus lock nut so the application pressure can be set and secured between 0,1 and 5 bar; the factory preset is 1,5 bar. This size is matched to tubing with inner diameter 1,6 mm and outer diameter 3,2 mm (1/16 × 1/8''). Overall outer diameter measures 32 mm and total height is about 50 mm, supporting compact installation. Net weight is 0,0356 kg. Offered as one piece from manufacturer Bohlender, the design pairs inert PTFE flow paths with a robust PPS adjustment mechanism for mini-scale fluid systems in analytical chemistry, chromatography support and general lab process control where reliable overpressure or back-pressure holding is needed.
This article is part of Stopcocks & valves, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Material: Polytetrafluoroethylene (PTFE)
- Connection: UNF 1/4'' 28 G
- Tubing ID x OD: 1,6 x 3,2 mm
- Pressure range: 0,1–5 bar (factory 1,5 bar)
- Outer diameter: 32 mm
- Technical Information Sheet:
