Description

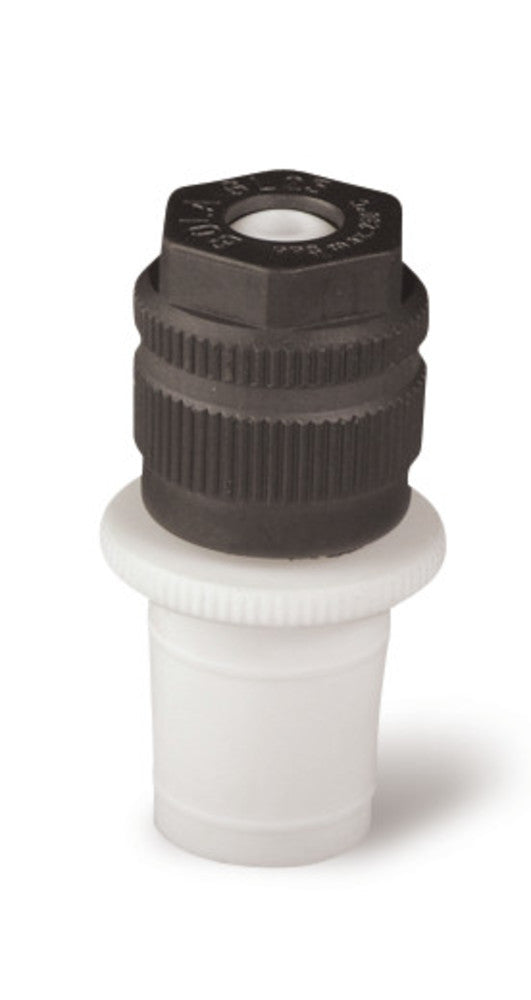

BOLA ground joint swivel screw fittings for NS 29/32 accept sensors, tubes or hoses with an outer diameter of 6 mm and allow a maximum deflection angle of 8°. The ground joint body is made of polytetrafluoroethylene (PTFE) and the screw cap is made of PPS, with a cap thread of GL 25. In operation the sensor, tube or hose is first passed through the fitting; the fitting is then inserted into the ground joint and the introduced element is fixed in the desired position. This arrangement holds the guided component within the stated 8° swivel range on larger NS 29/32 joints. The product is supplied as one piece and has a net weight of 0,0684 kg. Laboratory glassware setups use these BOLA fittings from manufacturer Bohlender when probes or tubing must pass through an NS 29/32 joint and remain adjustable. Construction follows the described PTFE ground joint body with PPS screw cap for this joint size. Specified dimensions cover a 6 mm outer diameter of the guided element, a maximum deflection angle of 8°, and the GL 25 cap thread. The fitting is intended for insertion into matching NS 29/32 joints in routine laboratory apparatus and is offered here as a single unit for direct installation.
This article is part of Screw caps & closures, in Stoppers, caps & closures.
Key features
- Pack size: 1 pc
- Ground joint size: NS 29/32
- Outer diameter: 6 mm
- Max. deflection angle: 8°
- Cap thread: GL 25
- Ground joint body: PTFE
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about BOLA Swivelling Screw Fittings with Ground Joint, NS 29/32, a Ø 6 mm, max. 8° PP
What is this article?
BOLA Swivelling Screw Fittings with Ground Joint, NS 29/32, a Ø 6 mm, max. 8° PP is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Screw caps & closures, inside Stoppers, caps & closures, in Labware.
A screw cap has a thread and a liner. The thread has to match the bottle. The liner has to survive the liquid: a pulp liner fails in a solvent that a PTFE-faced liner ignores. The colour of the cap is not the specification.
A closure is the part that decides whether a bottle stays shut and whether the contents attack the seal. A ground-glass stopper matches a ground neck. A screw cap needs the right thread and a liner that survives the liquid. Rubber and silicone stoppers push into a mouth. The liner, not the colour of the cap, is the chemical choice. The vessels they close are indexed under ISO laboratory glassware.
