Description

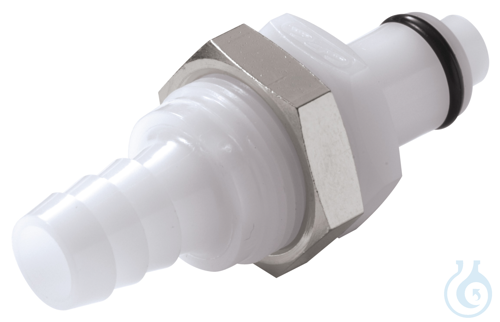

CPC coupling, POM, male, with valve, panel-mount version Ø9,5 mm is a quick-release connector engineered for liquids, gases, compressed air and vacuum. The polyoxymethylene body with Buna-N O-ring seal ensures a tight joint, while stainless-steel V4A spring and locking parts enable secure one-hand operation. Panel-mount construction allows fixed installation on equipment or enclosure walls; within the same flow size, male and female halves remain fully interchangeable. Operating pressure at 20 °C spans vacuum to 10 bar, and the operating temperature range is −40 °C to +80 °C. Coupling halves engage automatically and open the valves on connection; valves close automatically on disconnection to prevent leakage. Compact footprint, high flow capacity and reliable sealing characterise these fittings from manufacturer Bürkle, making them suitable for hoses, instruments, apparatus and containers in laboratory and process use. Pack size is 1 piece for easy stocking and assembly.
This article is part of Stopcocks & valves, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Body material: POM
- Type: Male nipple with valve, panel mount
- Connection: Ø9,5 mm
- Seal material: Buna-N
- EAN: 4067722024505
- Technical Information Sheet:
Recently viewed
You may also like
Questions about CPC coupling POM, male, w/ valve, mount., Ø 9,5 mm
What is this article?
CPC coupling POM, male, w/ valve, mount., Ø 9,5 mm is the article on this page. Luminix Health distributes Bürkle for laboratory use. It sits in Hose connectors, adapters & fittings, inside Tubing, hoses & fittings, in Labware.
A hose connector or adapter joins two lines, or steps one bore down to another. The barb diameter has to match the tube, and the thread has to match the stopcock or the bottle. Most leaks are a mismatch here, not a hole in the tube.
Tubing is how a liquid or a gas moves between two vessels without being poured. Silicone stays flexible and survives repeated autoclaving. PTFE resists almost every solvent and is stiff. PVC is the ordinary flexible line for water and for mild aqueous work. The fitting, not the tube, is what usually leaks: the barb, the thread and the stopcock have to match the tube bore. Glass and plastic apparatus around these lines is indexed under ISO laboratory ware.
Which category should I open next?
The category is Tubing, hoses & fittings. The sub-category is Hose connectors, adapters & fittings. The catalogue is Labware.
Shelves beside this one are PVC, PTFE & other tubing, Stopcocks & valves, Silicone tubing and Tubing accessories.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
How does ordering and shipping work?
Luminix Health distributes this article from the heart of Europe. Articles in stock ship within 2–5 business days. Standard delivery is free from €250 excl. VAT. Cold-chain goods and dangerous goods under ADR are never included in that free delivery. The terms are in the Shipping Policy. The full brand index is on shop by brand. Who we are is on about us.
Which other categories should I open?
The seven catalogues are Labware, Lab chemicals, Lab instruments, Lab consumables, Chromatography equipment, Lab safety equipment and Life Science & Microbiology.
