Description

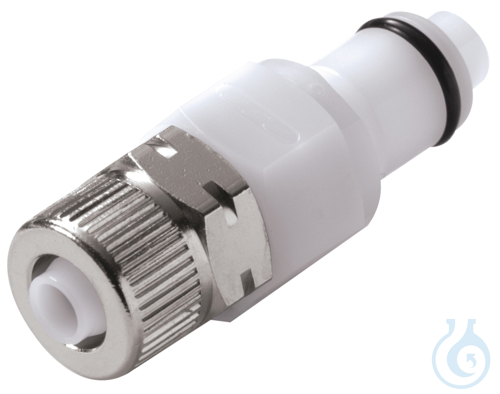

CPC coupling in POM, male version with valve and compression fitting for tubing Ø 6×8 mm, provides a fast, secure link for liquids, gases, compressed air and vacuum. High quality, proven reliability, small space demand, maximum flow, one-hand handling and an attractive design define these quick-disconnect couplings for laboratory and process applications. A reliable O-ring seal ensures leak-tight performance. Within the same flow size, all couplings (female) and nipples (male) are fully interchangeable. Spring and locking parts are stainless steel V4A. The POM body uses a Buna-N standard seal, with operating pressure from vacuum to 10 bar at 20 °C and operating temperature from −40 °C to +80 °C. With the valved design, parts lock automatically on connection and open the valves; on one-hand decoupling the valves close automatically so leakage is prevented. These couplings suit connecting and disconnecting hoses, instruments, apparatus and containers. This valved male compression fitting from manufacturer Bürkle is supplied as one piece (net weight 0,014 kg) for controlled fluid handling with automatic shut-off.
This article is part of Stopcocks & valves, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Material: POM
- Connection type: Male, with valve
- Fitting: Compression fitting Ø 6x8 mm
- Seal: Buna-N
- EAN: 4067722024451
- Technical Information Sheet:
