Description

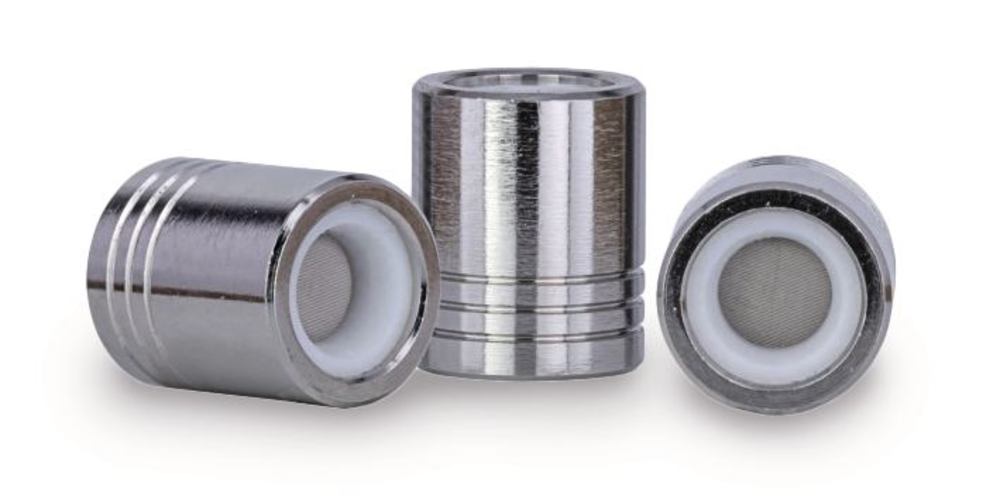

EC 4/2 NUCLEODUR C18 Pyramid, 3 µm is an HPLC guard column for protecting narrow-bore analytical columns packed with matching C18 Pyramid chemistry. The cartridge length is 4 mm and the inner diameter is 2 mm, making it suitable for main columns with 2 mm ID. It is filled with NUCLEODUR C18 Pyramid material at a 3 µm particle size for reversed-phase liquid chromatography applications. Supplied as a pack of 3 pieces from manufacturer Macherey-Nagel, the guard columns must be used with the Column Protection System guard column holder (REF 718966). Placing this EC precolumn upstream helps trap particles and highly retained sample constituents before they reach the analytical bed, supporting longer column life and more stable system pressure. Laboratories that already run NUCLEODUR C18 Pyramid methods on 2 mm ID hardware can adopt the EC 4/2, 3 µm format to maintain phase consistency while adding a replaceable protective stage in method development, quality control, and routine HPLC work.
This article is part of HPLC columns, in HPLC columns & accessories. See also HPLC guard columns.
Key features
- Pack size: 3 pc(s)
- Product type: HPLC guard column (EC format)
- Stationary phase: NUCLEODUR C18 Pyramid
- Particle size: 3 µm
- Dimensions: length 4 mm, ID 2 mm
- EAN: 4046681057601
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about EC 4/2 NUCLEODUR C18 Pyramid, 3 µm
What is this article?
EC 4/2 NUCLEODUR C18 Pyramid, 3 µm is the article on this page. Luminix Health distributes Macherey-Nagel for laboratory use. It sits in HPLC guard columns, inside HPLC columns & accessories, in Chromatography equipment.
A guard column is a short column of the same phase as the analytical column, placed in front of it to catch particles and compounds that would stick forever. It is meant to be replaced. A guard of a different phase changes the separation. The holder and the cartridge are often separate parts.
An HPLC column is a tube packed, or coated, with a stationary phase. The sample is carried through it by a liquid, and the compounds leave at different times. The phase, the particle size, the length and the internal diameter decide the separation. A guard column is a short sacrificial piece in front of the analytical column. Fittings and tubing have a bore that either preserves the peak or smears it. Compound names follow IUPAC. Data are on PubChem. Method grades often cite the European Pharmacopoeia or USP.
