Description

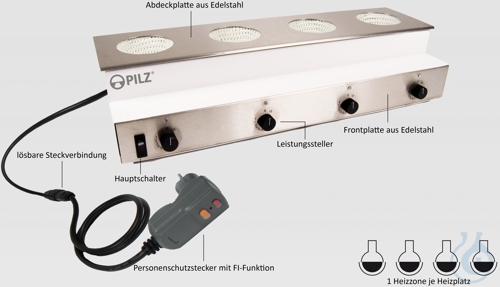

Multi-place heating mantle PILZ® Classic-Line RE4ER is a four-position laboratory heating unit for 250 ml round-bottom flasks with a diameter of 85 mm. Each heating place delivers 220 W, giving a total rated power of 880 W at 230 VAC, with a maximum permissible operating temperature of 450 °C. The powder-coated metal housing is robust and chemically resistant, while the cover and front plate are stainless steel. Hand-crocheted glass-silk heating elements provide uniform heat transfer to the flasks. The device is fitted with a main ON/OFF switch and an integrated mechanical power controller at every position for stepless power selection from 0 to 100 %. Each place has a rear STK 2 stand clamp (without stand rod) and a detachable plug connection with 0,50 m cable. A residual-current protective plug with FI function and a Schuko type E/F mains cable of 1,00 m are included. Net weight is 9,4 kg; overall width is 620 mm and height 220 mm. This RE4ER Classic-Line model from manufacturer Winkler supports parallel heating tasks in chemical and analytical laboratories.
This article is part of Heating mantles, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Product type: RE4ER -Classic-Line-
- Heating positions: 4
- Rated power: 880 W
- Max. operating temperature: 450 °C
- Flask volume: 250 ml, Ø 85 mm
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Multi-place heating mantle PILZ® -Classic-Line- RE4ER with 4 places 250m
What is this article?
Multi-place heating mantle PILZ® -Classic-Line- RE4ER with 4 places 250m is the article on this page. Luminix Health distributes Winkler for laboratory use. It sits in Heating mantles, inside Heating, drying & cooling, in Lab instruments.
A heating mantle cups a round-bottom flask so the heat meets the glass without a bare flame. The flask volume the mantle was knitted for is the specification. A 1 L mantle under a 250 mL flask heats the air, not the liquid.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
