Description

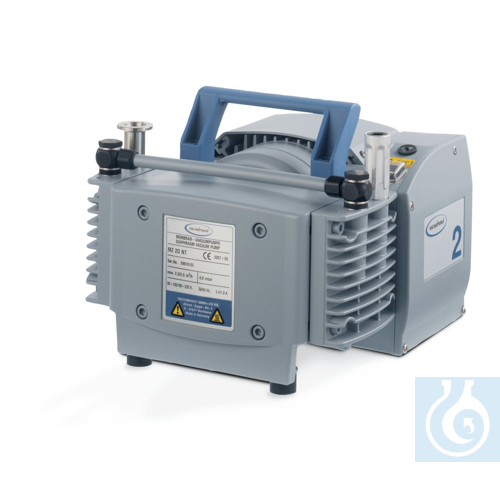

The MZ 2D NT is a two-stage diaphragm pump intended for laboratory vacuum work. This US variant is specified for 100-115 V / 50-60 Hz and 120 V / 60 Hz operation and includes a US power cable. NRTL certification covers the C/US mark. Supplied as one piece from manufacturer VACUUBRAND, the unit has a net weight of 11.7 kg and a gross weight of 13.8 kg. Manufactured in Germany, the MZ 2D NT US model combines the two-stage membrane architecture of the MZ 2D NT series with the electrical connection standard used in the United States. It is classified among laboratory materials and supports vacuum generation tasks in everyday laboratory settings. The dual voltage and frequency ranges define the admissible supply conditions for installation. Two-stage construction remains the defining pumping principle of this NT-series diaphragm pump. Packaging consists of a single complete pump ready for laboratory use. Net and gross weight figures assist logistics, handling and placement decisions on the bench or inside integrated systems.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: Two-stage diaphragm pump
- Voltage: 100-115 V / 50-60 Hz, 120 V / 60 Hz
- Power cable: US
- Certification: NRTL C/US
- Manufacturer: VACUUBRAND
- Net weight: 11.7 kg
- UNSPSC: 41104900

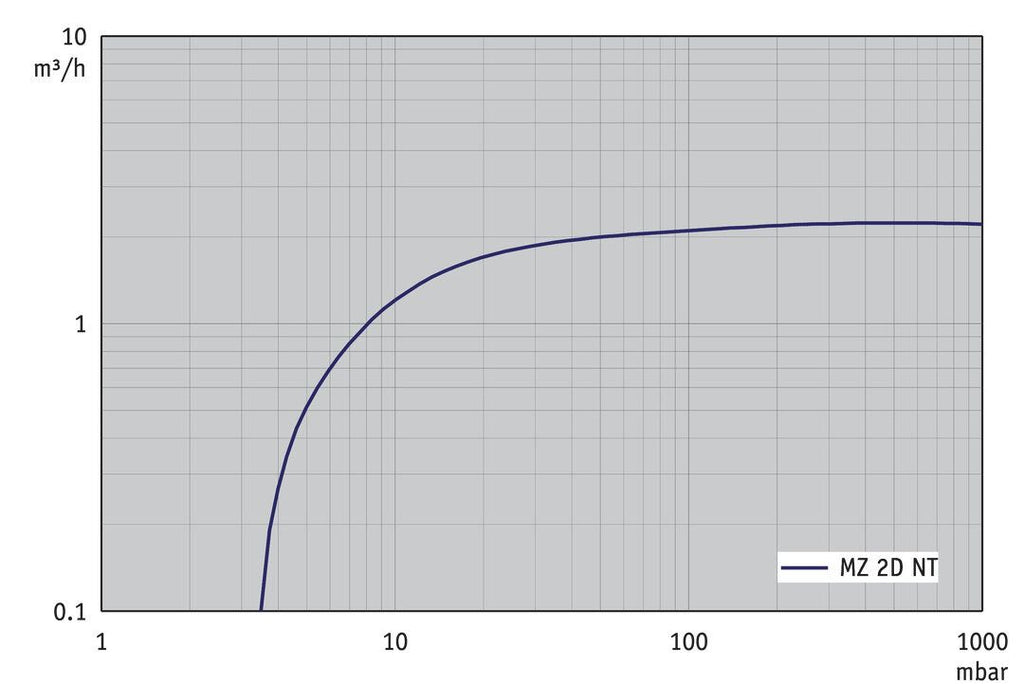

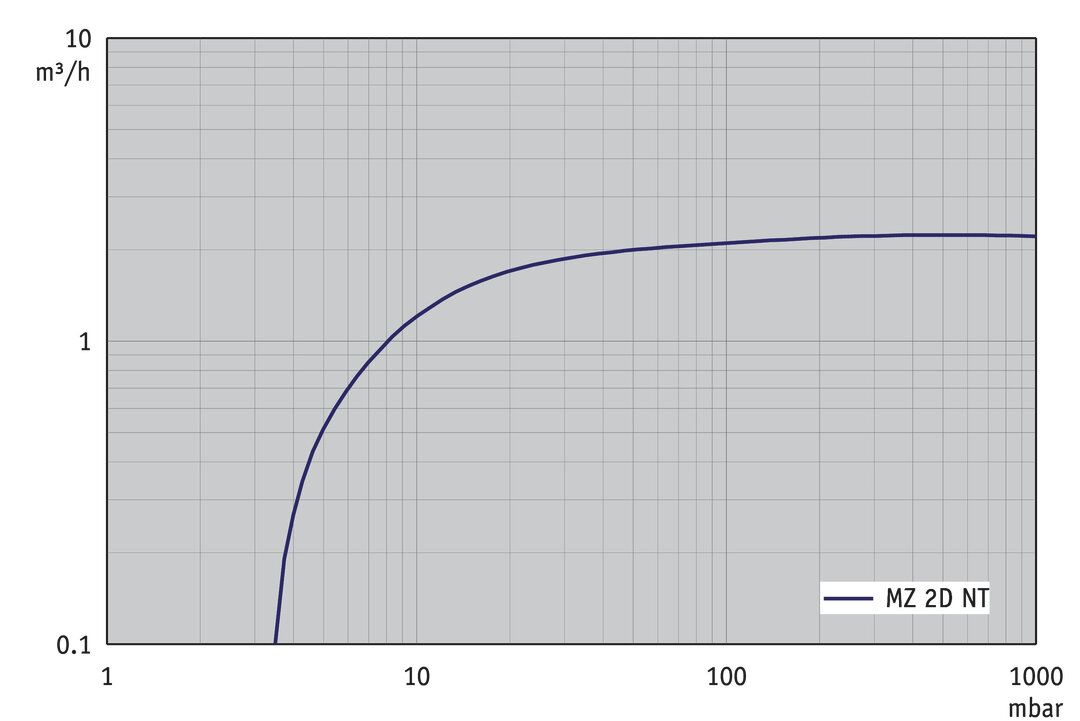

- Max. pumping speed 50 Hz: 2.3 m³/h
- Max. pumping speed 60 Hz: 1.5 cfm

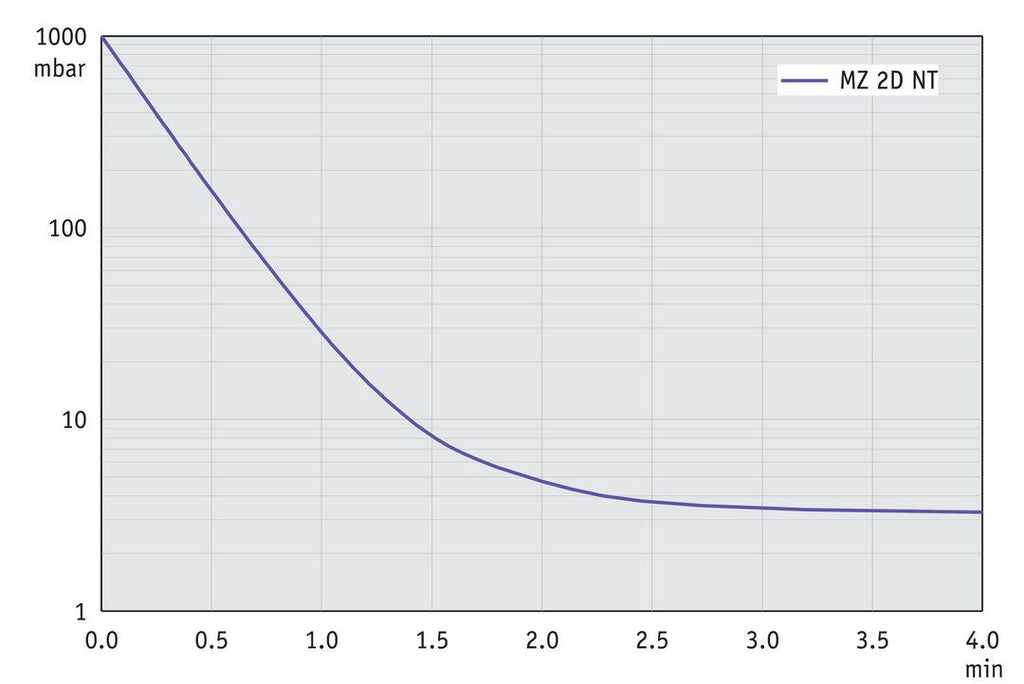

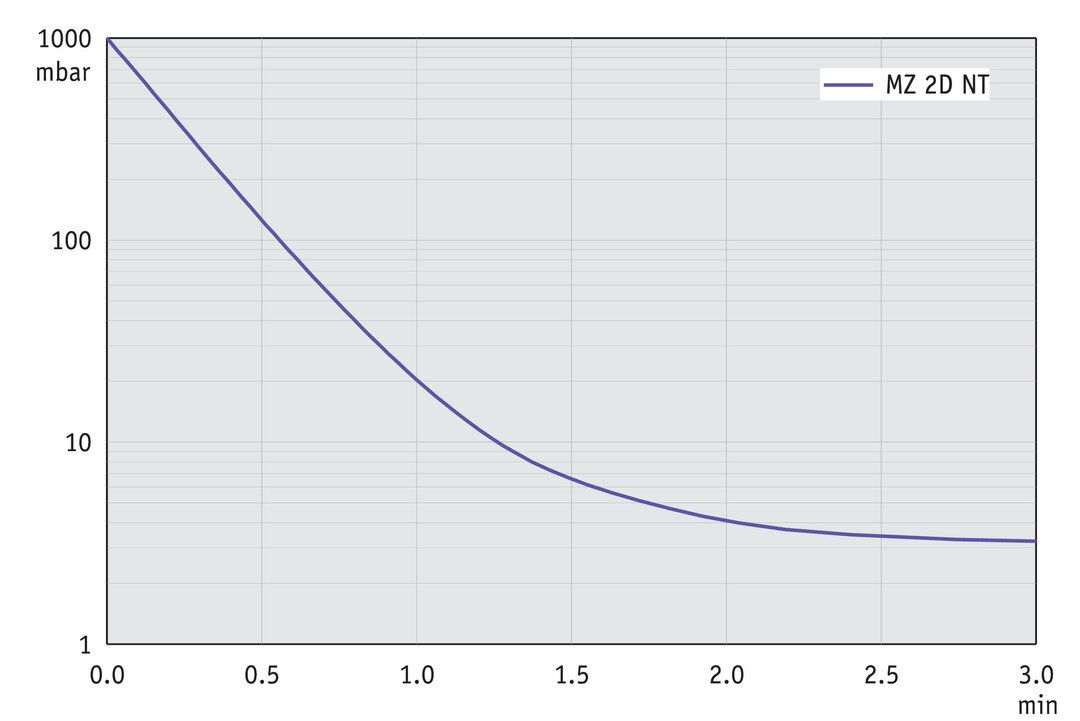

- Ultimate vacuum: 4 mbar / 3 torr
- Number of heads: 2
- Number of stages: 2
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 16
- Outlet connection: Silencer / G1/4"
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40
- Dimension L in mm: 246 mm
- Dimension B in mm: 242 mm
- Dimension H in mm: 198 mm
- Weight: 11.4 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 47 dBA
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
- Technical Information Sheet:
