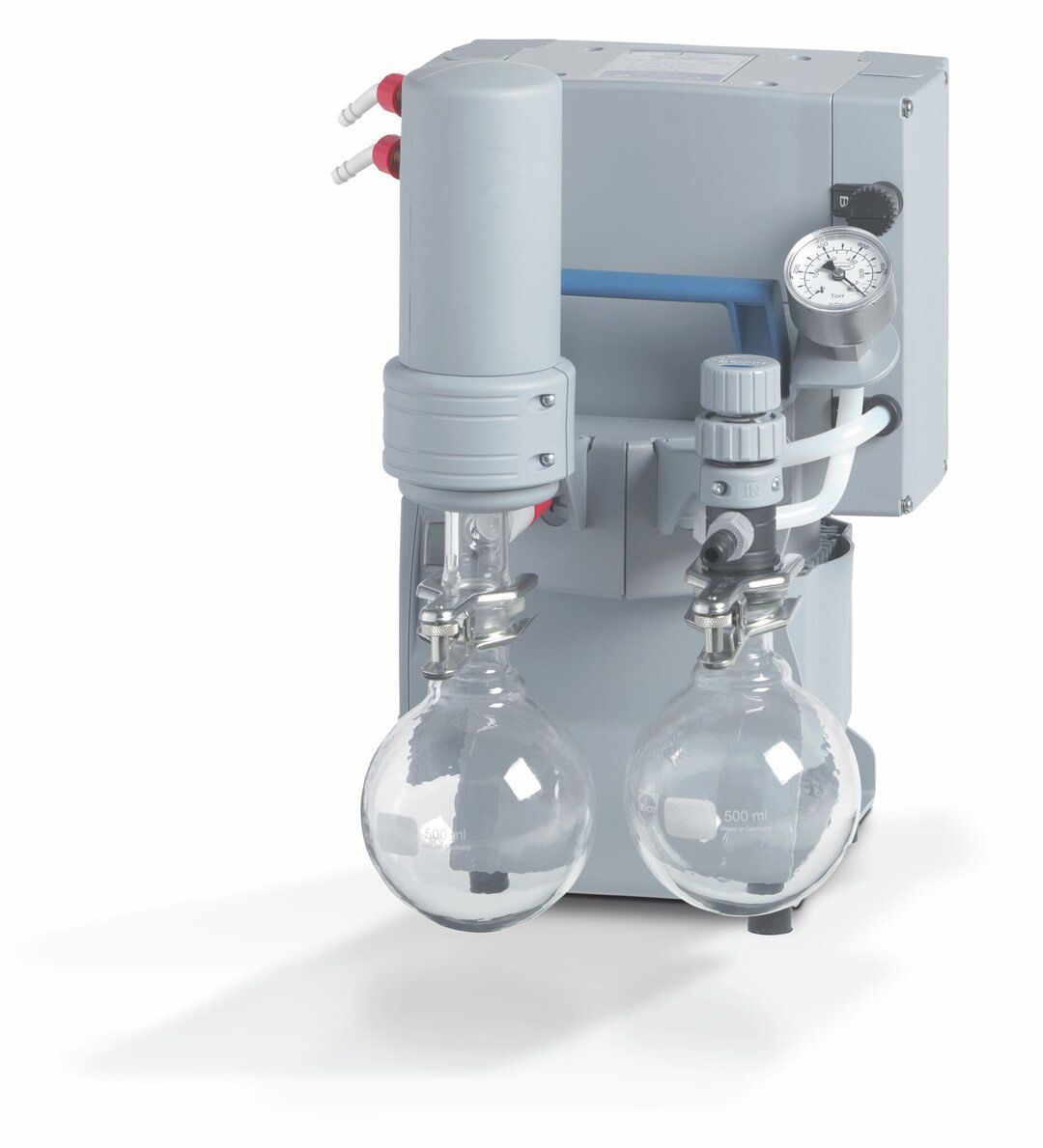

The chemistry vacuum pump stand PC 201 NT, US is a fully equipped vacuum workstation configured with the MD 4C chemistry diaphragm pump for laboratory use with chemically demanding media. The system includes a manometer, a manual flow control valve, a suction-side separator and a pressure-side emission condenser, enabling regulated vacuum processes with continuous pressure indication. It is designed for 100-115 V/50-60 Hz and 120 V/60 Hz operation and is supplied with a US mains cable; NRTL certification (C/US) supports deployment in certified laboratory settings. Net weight is 18 kg and gross weight 23.6 kg for the complete single-unit assembly. The suction-side separator helps protect the pump from condensates and particles, while the emission condenser addresses exhaust-side solvent vapours. Manual flow control allows operators to adjust vacuum levels to the needs of evaporation, filtration or related chemical workflows. This PC 201 NT US variant from manufacturer VACUUBRAND integrates pump, separators and control components into one chemistry vacuum pump stand, reducing the need for separate peripheral setup. Supplied as 1 pc, it suits laboratories requiring a robust, chemistry-resistant vacuum station with US power connection and straightforward manual regulation.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Product type: Chemistry vacuum pump stand
- Model: PC 201 NT, US
- Pump: MD 4C
- Power supply: 100-115 V/50-60 Hz, 120 V/60 Hz, US cable
- Certification: NRTL C/US
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900
- Voltage: 120 V, 60 Hz

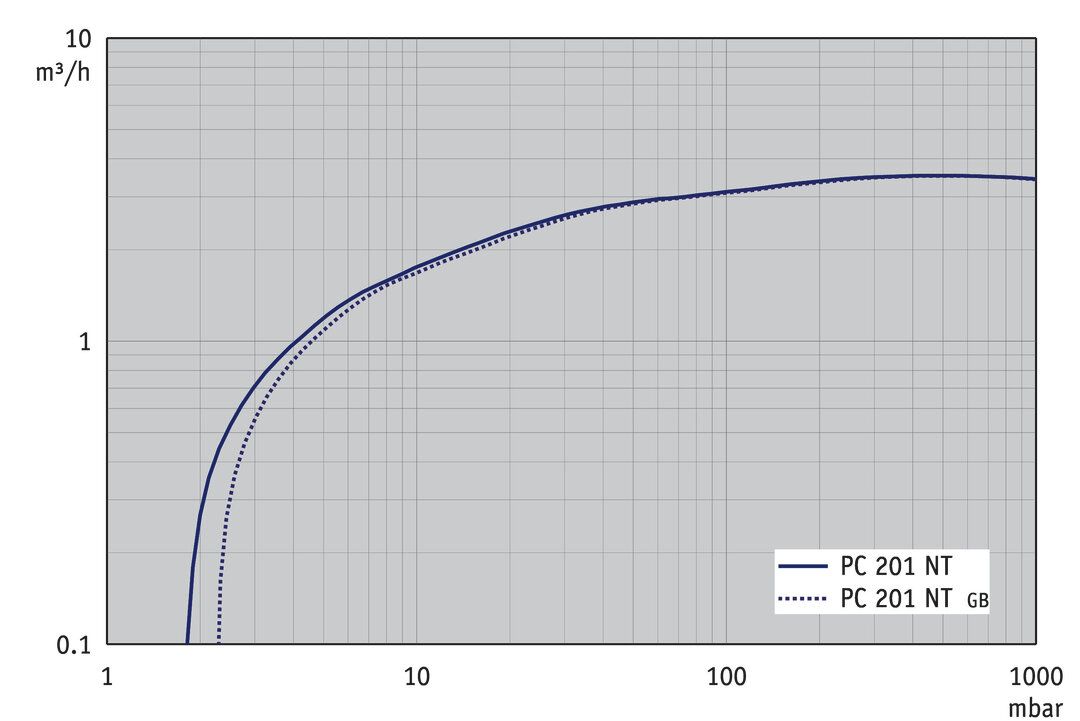

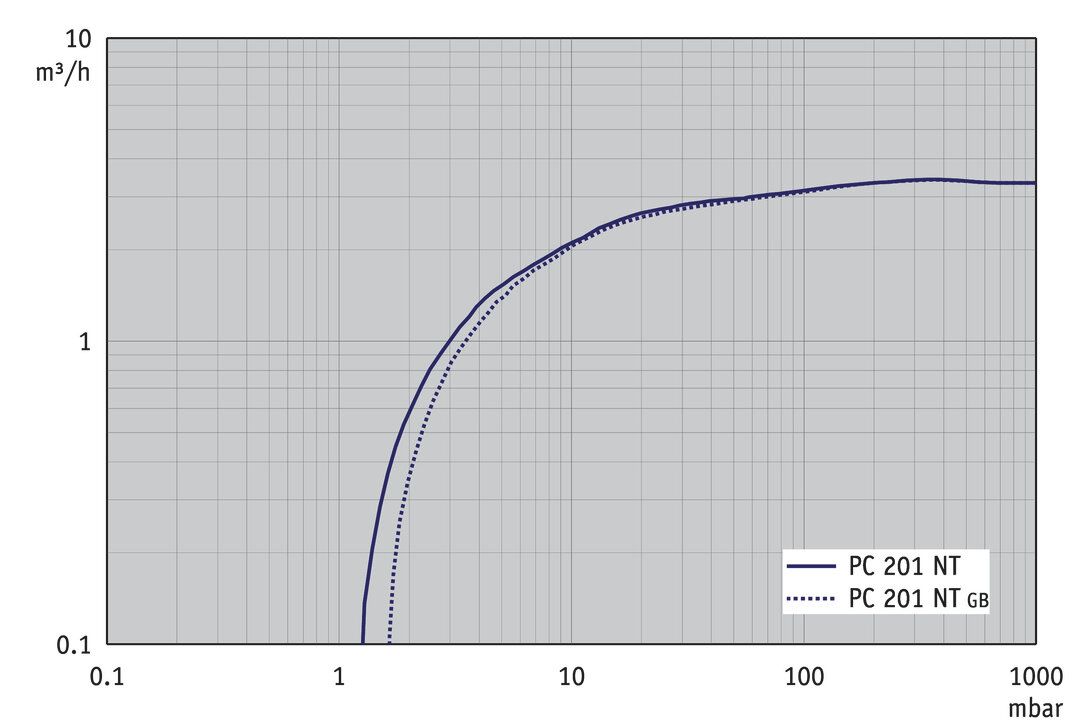

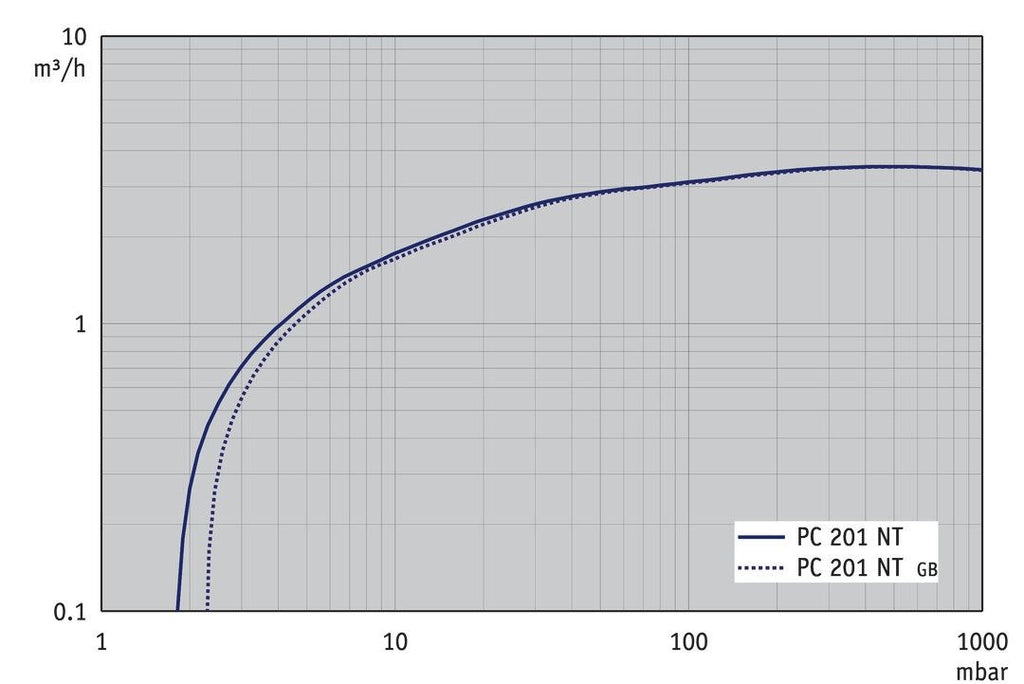

- Max. pumping speed 50 Hz: 3.4 m³/h
- Max. pumping speed 60 Hz: 2.2 cfm

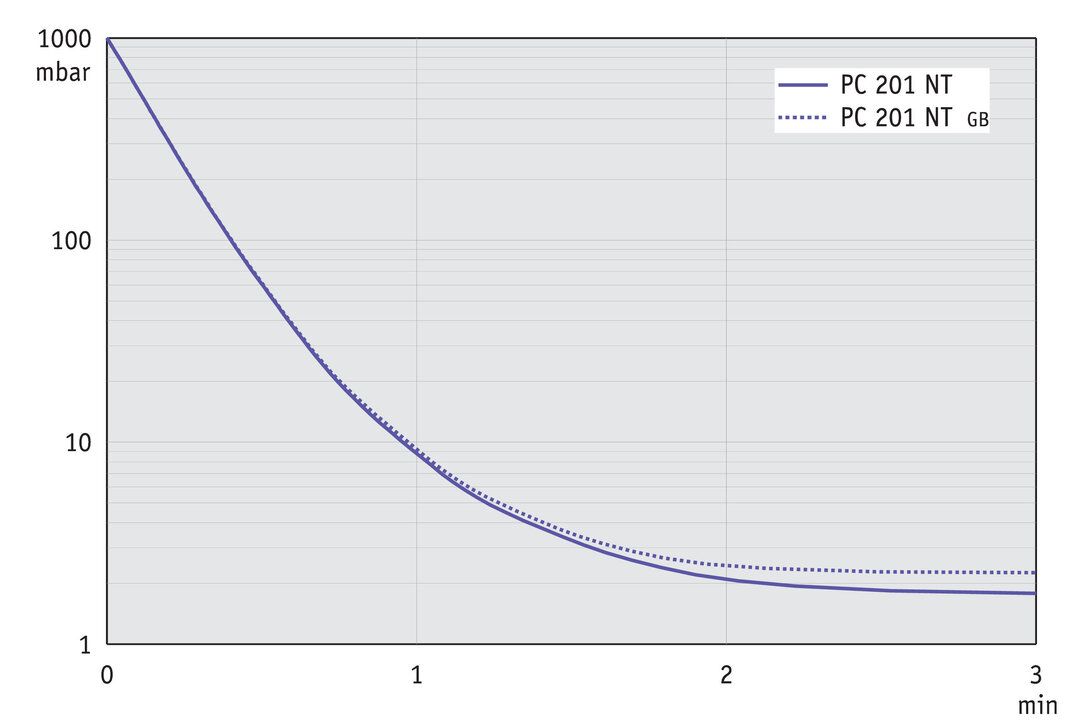

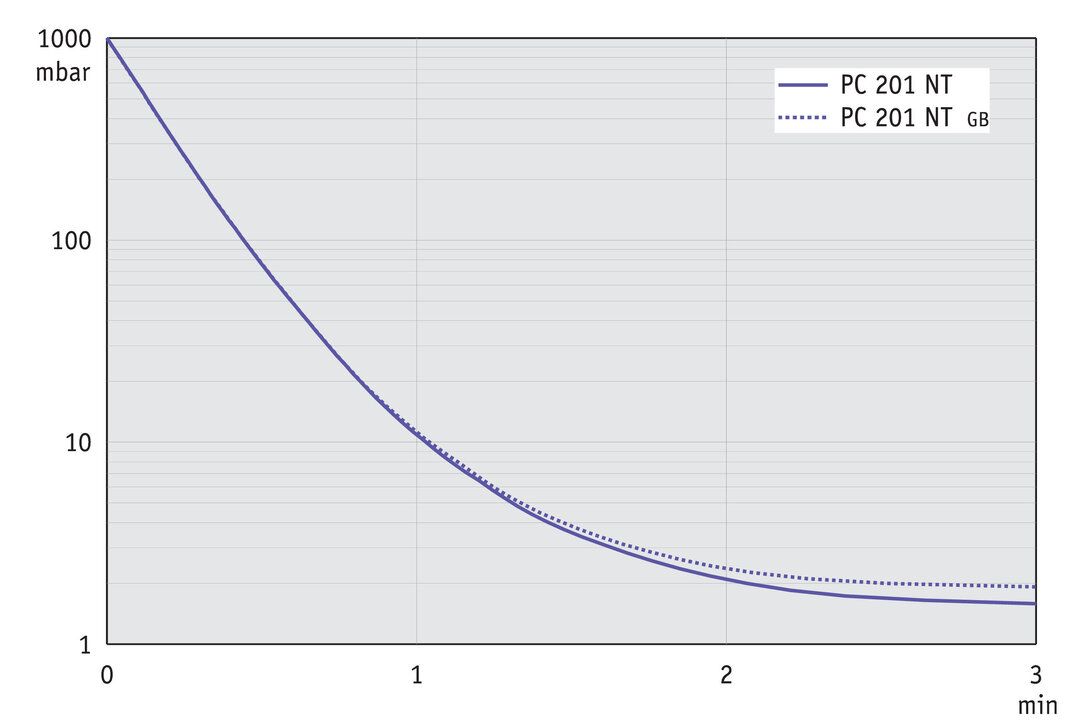

- Ultimate vacuum: 1.5 mbar / 1.1 torr
- Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: Manometer
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.25 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

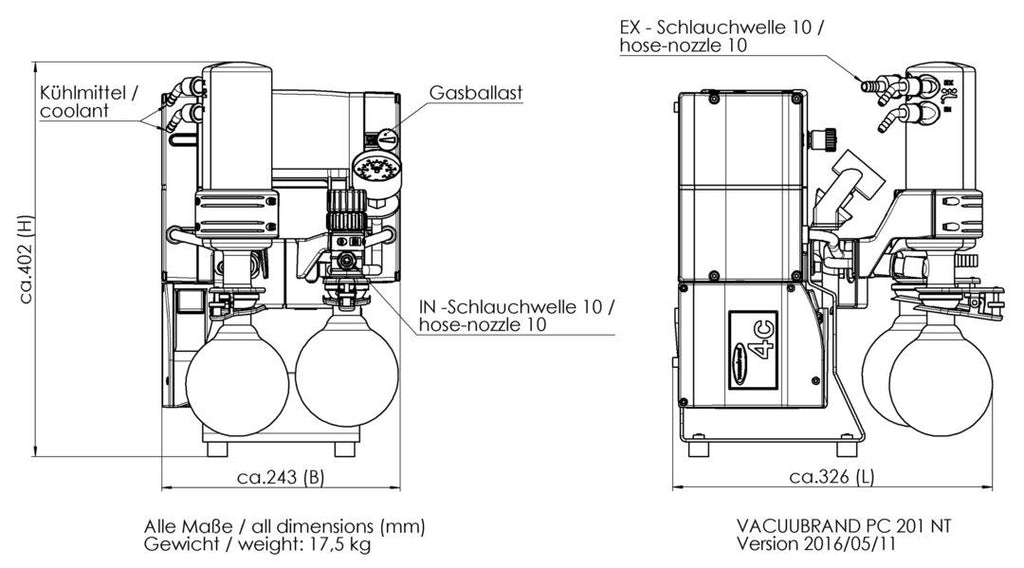

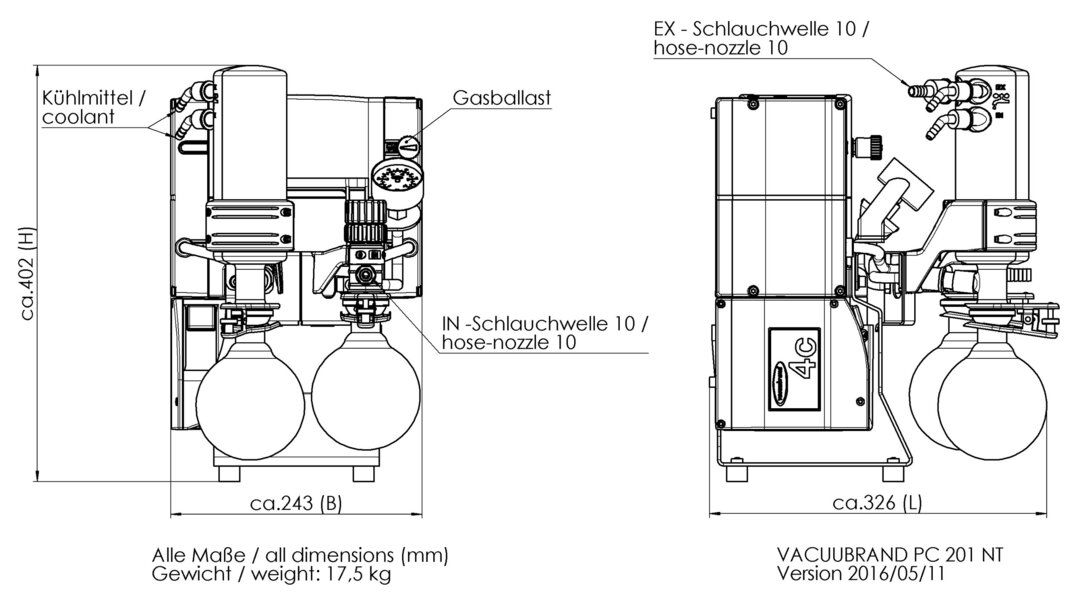

- Dimension L in mm: 326 mm
- Dimension B in mm: 243 mm
- Dimension H in mm: 402 mm
- Weight: 17.5 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
- Technical Information Sheet:
