Description

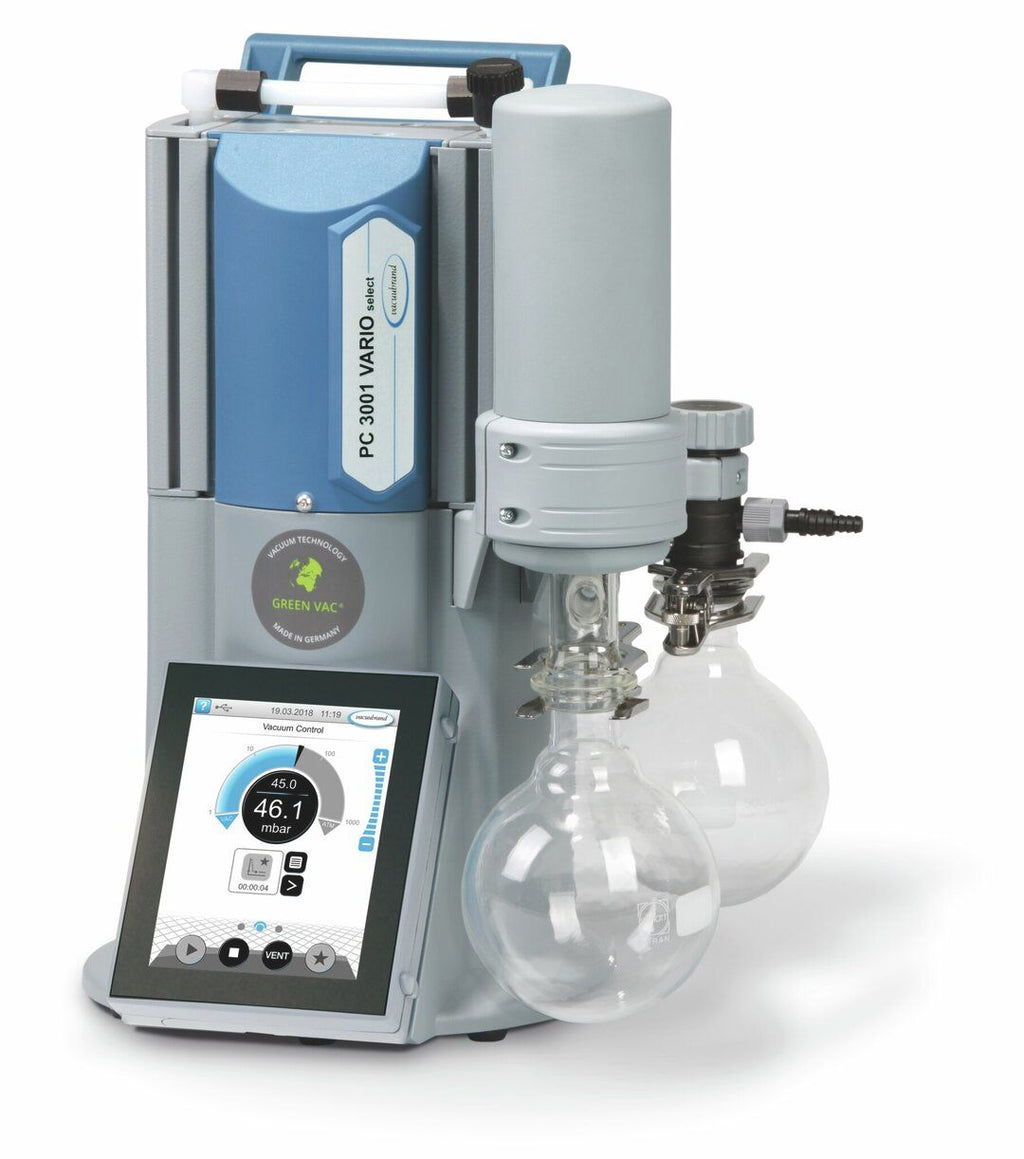

PC 3001 VARIO select is a VARIO chemistry pumping unit configured as a complete pumping station for laboratory chemical vacuum work. The system carries NRTL certification (C/US) and supports dual-range operation at 100-120 V / 200-230 V and 50-60 Hz. It is supplied with a CN mains cable and is delivered as a single complete unit. Net weight is 9.6 kg and gross weight is 12.3 kg; the unit originates from Germany. This PC 3001 VARIO select model belongs to the established VARIO select range from manufacturer VACUUBRAND and is intended for integration into standard laboratory setups requiring a chemistry-compatible vacuum station. The combination of recognised safety certification, flexible voltage acceptance and the specified CN power-cord configuration makes the station suitable for facilities that need a ready-to-install chemistry pumping unit. Pack size is one piece, providing a self-contained solution for controlled vacuum generation in chemical laboratory environments without additional assembly of the core pumping station.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Product type: VARIO chemistry pumping unit
- Model: PC 3001 VARIO select
- Power supply: 100-120 V / 200-230 V, 50-60 Hz
- NRTL certification: C/US
- Mains cable: CN
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900
- Voltage: 200-230 V, 50-60 Hz

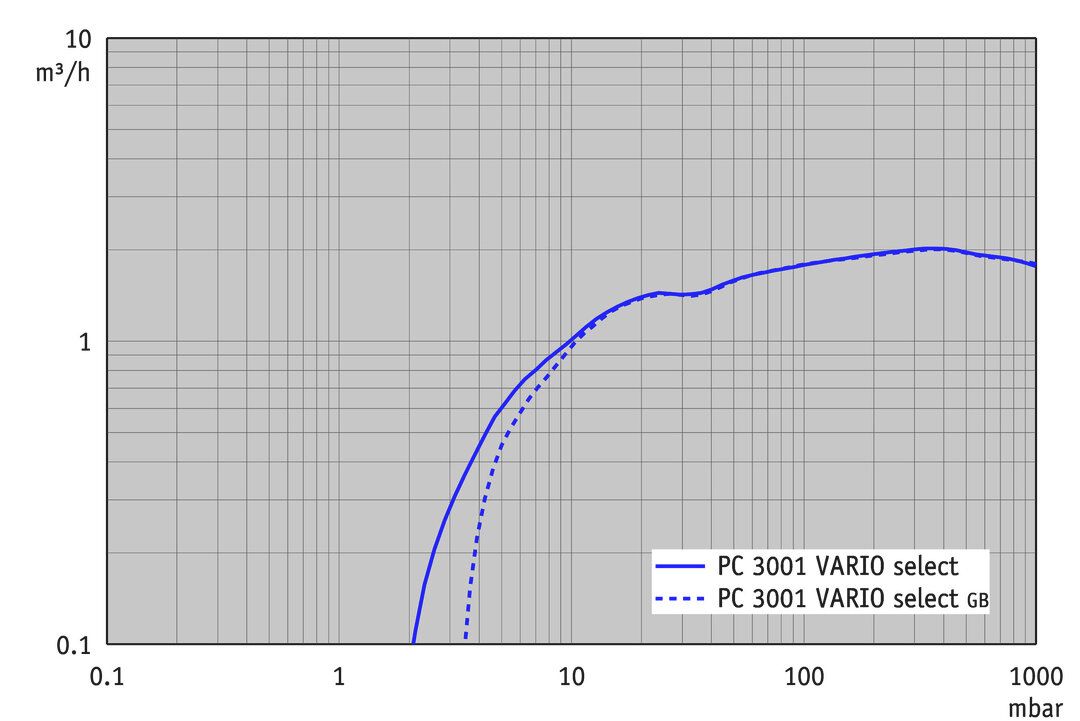

- Max. pumping speed 50 Hz: 2 m³/h
- Max. pumping speed 60 Hz: 1.18 cfm

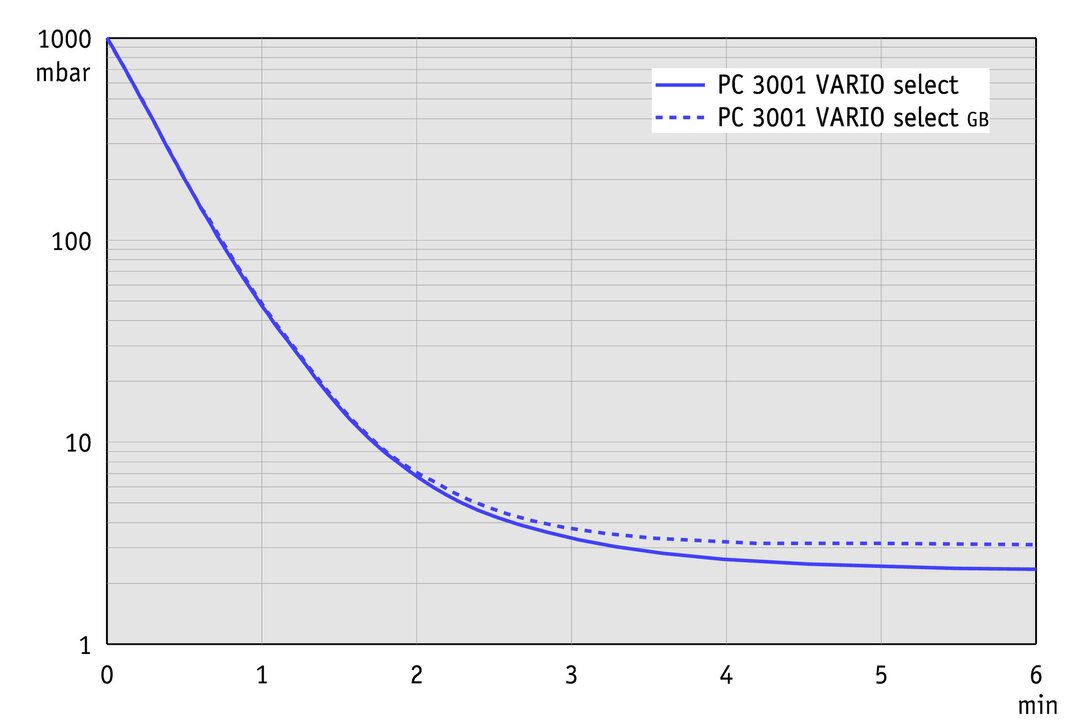

- Ultimate vacuum: 2 mbar / 1.5 torr
- Ultimate vacuum with gas ballast: 4 mbar / 3 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.16 kW
- Protection class IEC 60529: IP 20

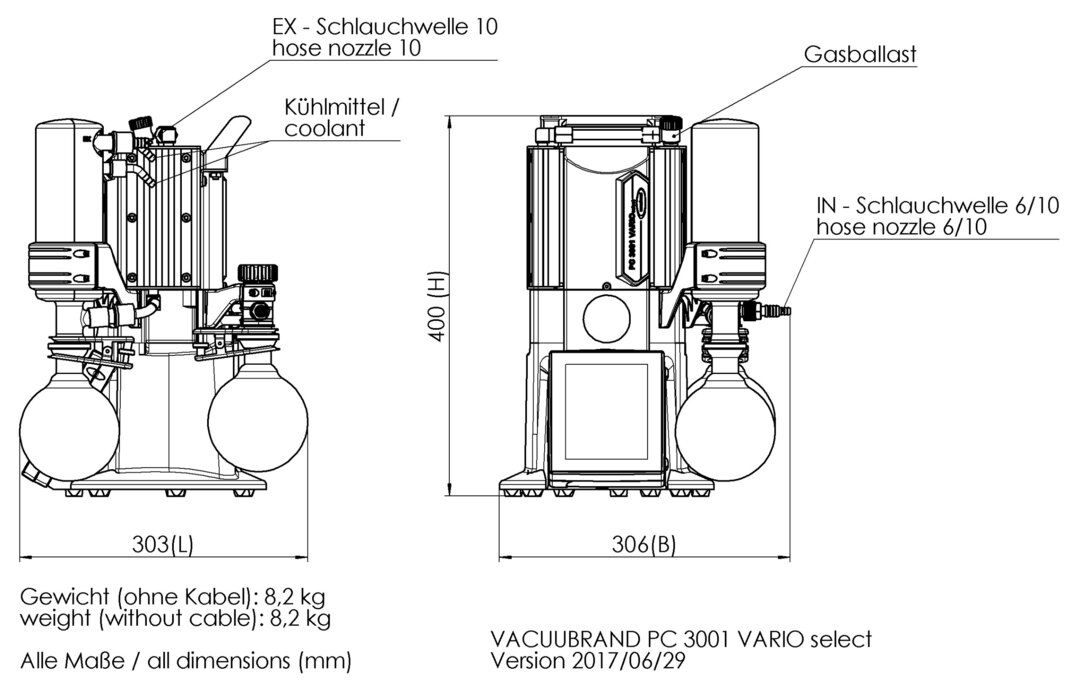

- Dimension L in mm: 303 mm
- Dimension B in mm: 306 mm
- Dimension H in mm: 400 mm
- Weight: 8.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 42 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
