Description
PC 3003 VARIO select is a VARIO chemistry pump stand configured for 200–230 V / 50–60 Hz operation and fitted with a UK mains cable. Supplied as one complete unit, this pump stand from manufacturer VACUUBRAND supports laboratory vacuum work in chemistry environments. The assembly has a net weight of 21.1 kg and a gross weight of 24.3 kg, reflecting a substantial, ready-to-install system manufactured in Germany. As part of the VARIO select series, the PC 3003 delivers the core pump-stand functionality needed for controlled vacuum generation in chemical laboratory settings. Its UK power cable matches British laboratory power connections, simplifying electrical integration on site. The unit carries WEEE registration DE11956459 for end-of-life equipment compliance. Laboratories requiring a dedicated chemistry pump stand with VARIO select control will find this UK configuration suited to routine vacuum process needs. Single-piece packaging supports straightforward handling, storage and installation planning across research and industrial lab facilities.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: VARIO chemistry pump stand
- Voltage: 200–230 V / 50–60 Hz
- Power cable: UK
- Manufacturer: VACUUBRAND
- Net weight: 21.1 kg
- Gross weight: 24.3 kg
- UNSPSC: 41104900

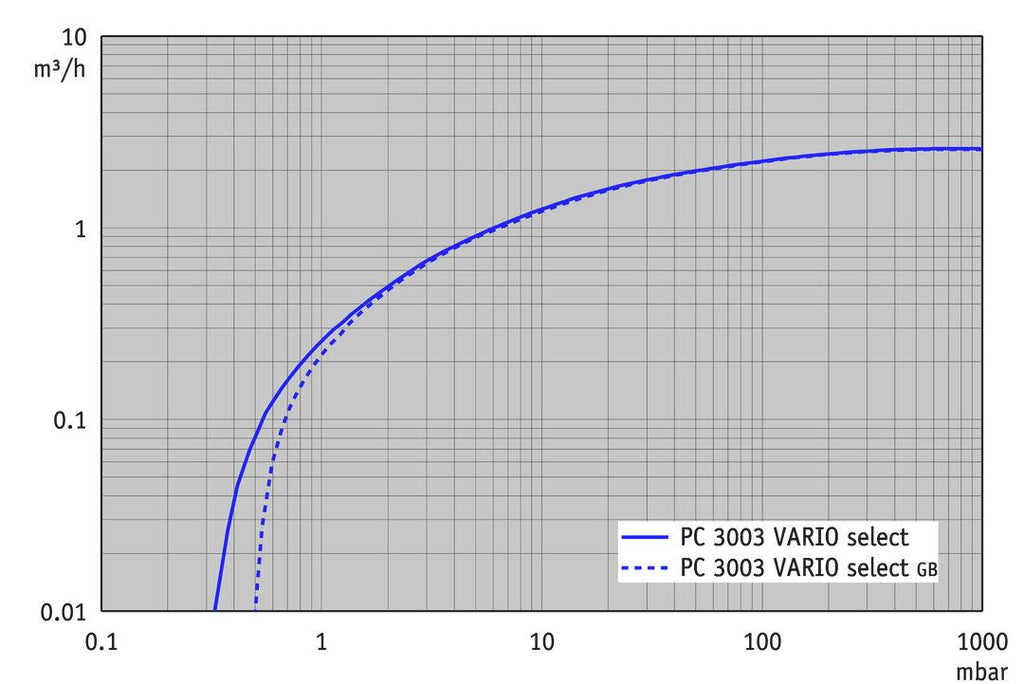

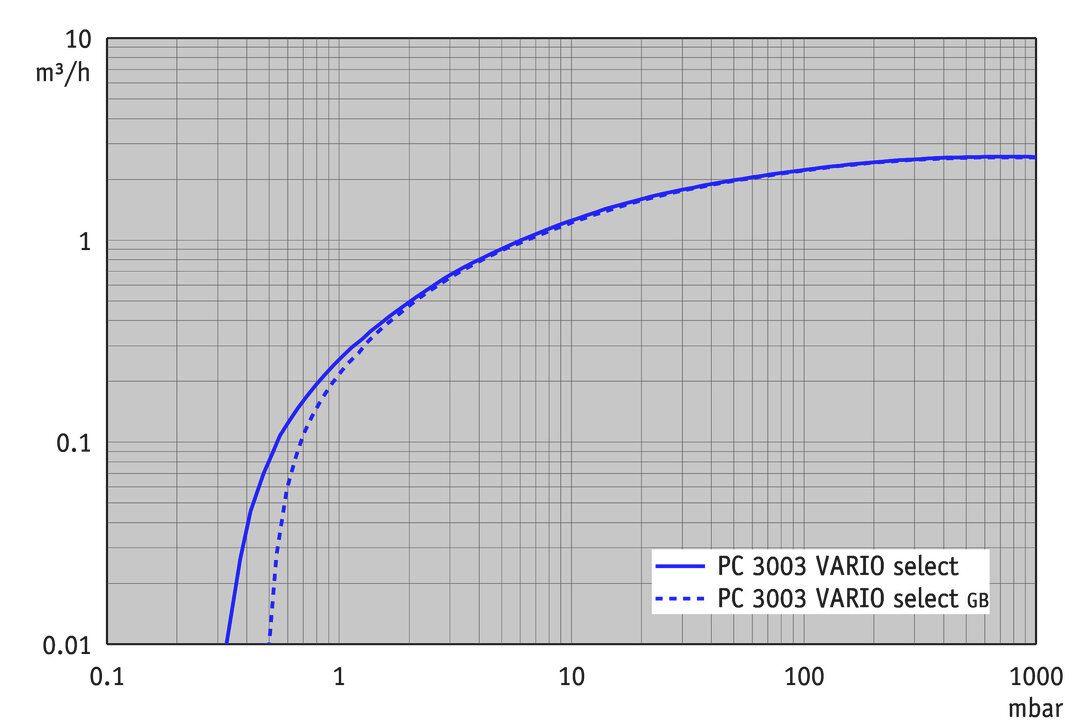

- Max. pumping speed 50 Hz: 2.8 m³/h
- Max. pumping speed 60 Hz: 1.65 cfm

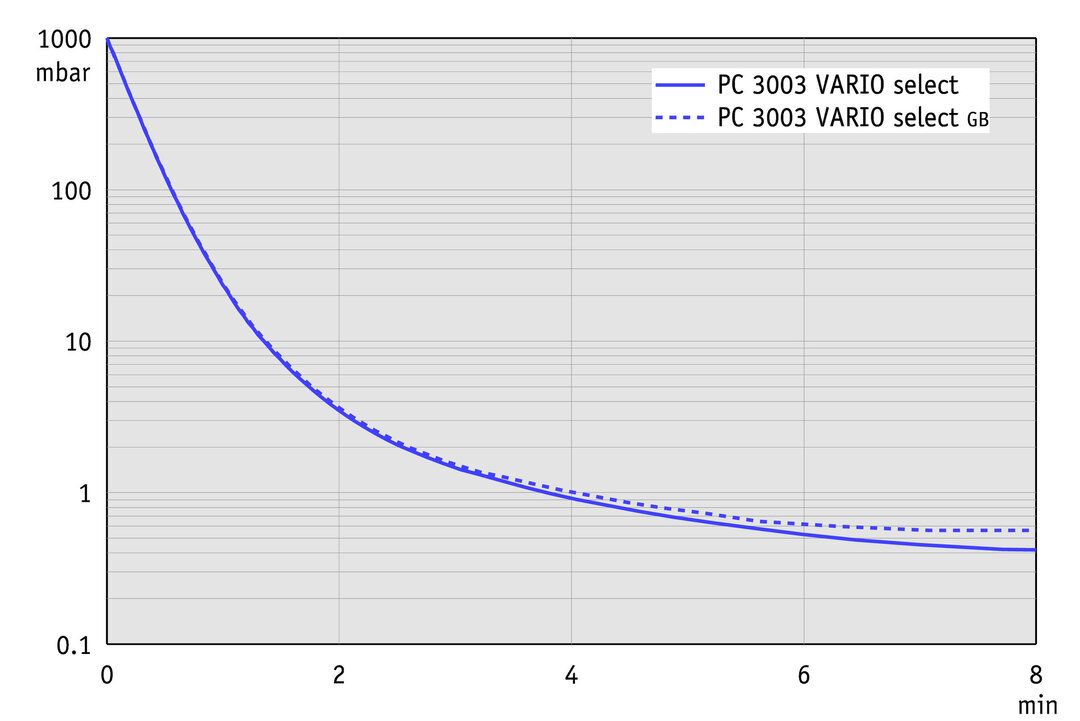

- Ultimate vacuum: 0.6 mbar / 0.45 torr
- Ultimate vacuum with gas ballast: 1.5 mbar / 1.12 torr
- Number of heads: 4
- Number of stages: 4
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.53 kW
- Protection class IEC 60529: IP 20

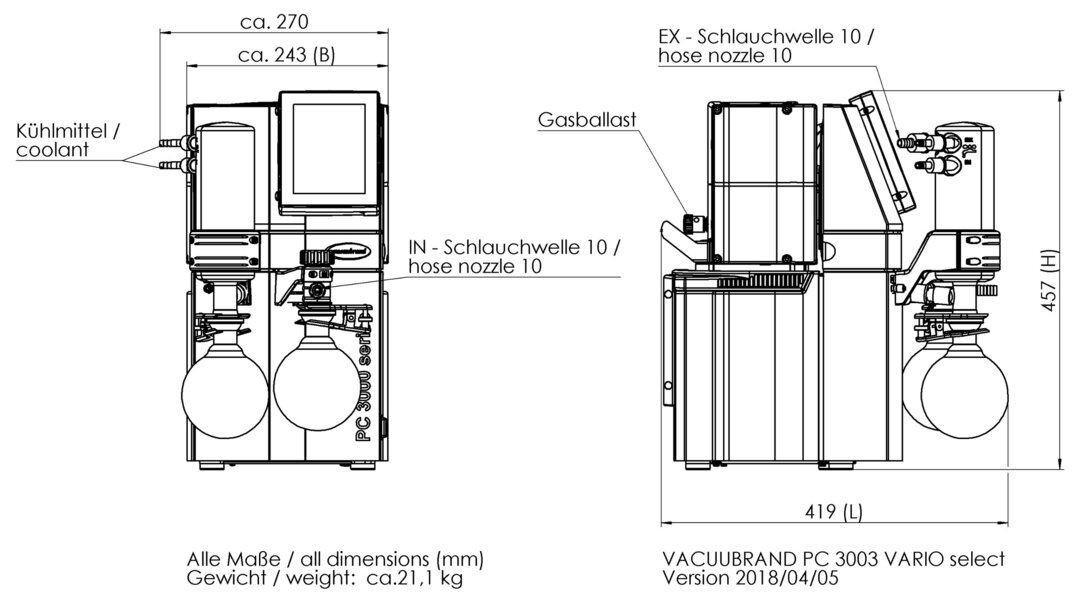

- Dimension L in mm: 419 mm
- Dimension B in mm: 243 mm
- Dimension H in mm: 457 mm
- Weight: 21.1 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 43 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: No
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Mains frequency 1: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about PC 3003 VARIO select, UK
What is this article?
PC 3003 VARIO select, UK is the article on this page. Luminix Health distributes Vacuubrand for laboratory use. It sits in Vacuum pumps, inside Pumps, vacuum & evaporation, in Lab instruments.
A laboratory vacuum pump lowers pressure for filtration or evaporation. A diaphragm pump tolerates solvent vapour better than an oil-sealed rotary vane pump, and it reaches a milder vacuum. The ultimate vacuum and the flow, and whether the wetted path survives the solvent, are the choices.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
