Description

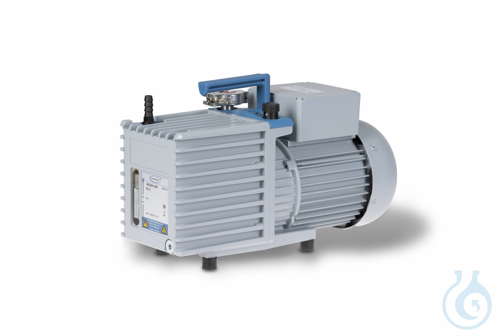

RZ 2.5 KF16/SW10 is a two-stage rotary vane pump configured for laboratory vacuum applications. It features a KF inlet with hose nozzle DN 10 mm and operates at 230 V / 50-60 Hz, supplied complete with a UK/IN power cable. The compact design from manufacturer VACUUBRAND combines flange and hose connection flexibility for straightforward integration into existing vacuum lines. Net weight is 14.9 kg and gross weight is 16.8 kg, reflecting solid construction originating from Germany. This model replaces the earlier article number 20698122 while retaining the established RZ 2.5 performance characteristics. The two-stage rotary vane principle supports efficient evacuation cycles typical of routine laboratory work. The KF16/SW10 inlet arrangement accommodates common laboratory tubing and vacuum fittings without additional adapters. Supplied as a single unit, the pump is ready for immediate installation where reliable two-stage vacuum generation is required. Its balanced weight and standardised connections make it a practical choice for research and quality-control environments that rely on consistent rotary vane technology.
This article is part of Hose connectors, adapters & fittings, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Pump type: Two-stage rotary vane pump
- Inlet connection: KF with hose nozzle DN 10 mm
- Voltage: 230 V / 50-60 Hz
- Power cable: UK/IN
- Manufacturer: VACUUBRAND
- Net weight: 14.9 kg
- UNSPSC: 41104900
- Max. pumping speed 50 Hz: 2.3 m³/h
- Max. pumping speed 60 Hz: 1.65 cfm
- Ultimate partial vacuum (abs.) without gas ballast: 4 x 10⁻⁴ mbar
- Ultimate vacuum: 2 x 10⁻³ mbar / 1.5 x 10⁻³ torr
- Ultimate vacuum with gas ballast: 1 x 10⁻² mbar / 0.75 x 10⁻² torr
- Number of stages: 2
- Lower ambient temperature (operation): 12 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Oil capacity (B-Oil) min.: 0.36 l
- Oil capacity (B-Oil) max.: 0.84 l
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.1 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40
- Dimension L in mm: 390 mm
- Dimension B in mm: 156 mm
- Dimension H in mm: 240 mm
- Weight: 14.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 48 dBA
- NRTL certification: No
- Items supplied: Pump oil filled and completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
