Description

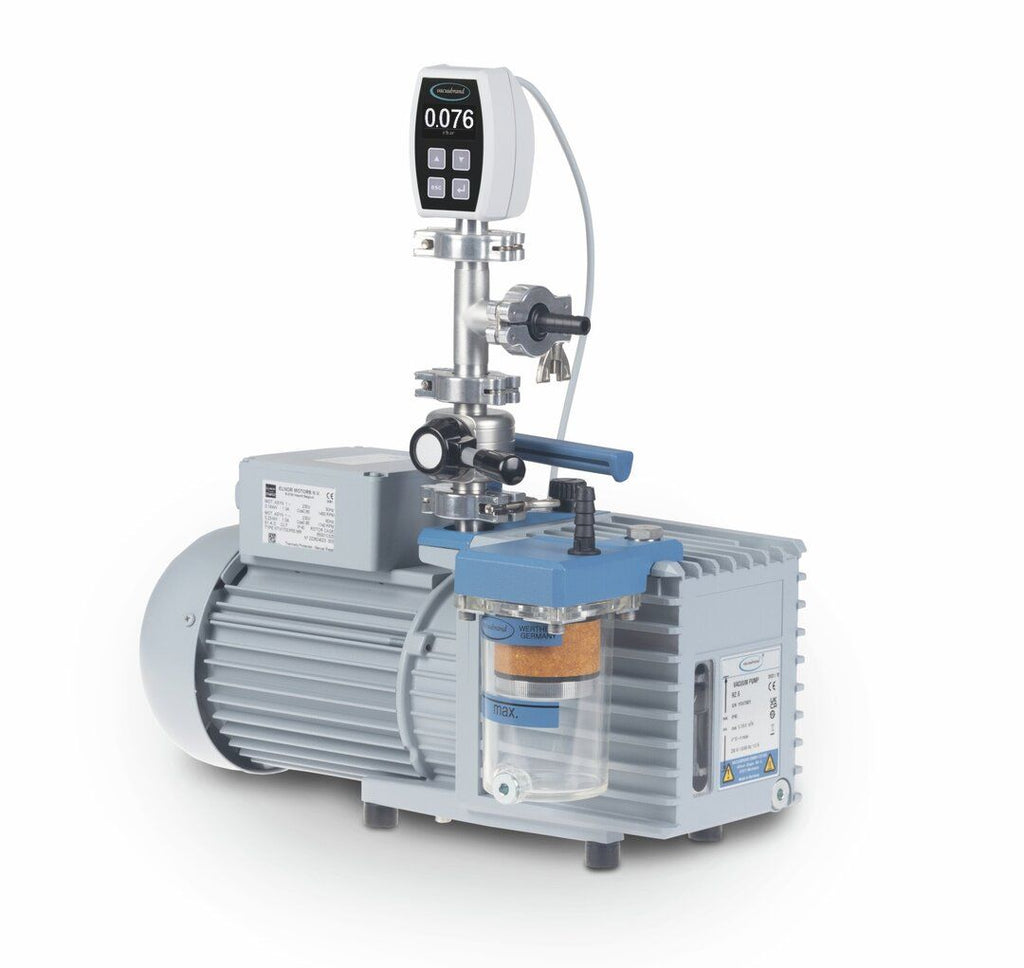

RZ 6 rotary vane pump package with VIEW ext. is a ready-to-use laboratory vacuum assembly based on the RZ 6 rotary vane pump. It includes an exhaust filter, shut-off valve VS 16 and the VACUU·VIEW extended vacuum measuring instrument, designed for 230 V/50-60 Hz operation and fitted with a CH power cable. The package replaces earlier article number 20698161 and is offered as a matched set from manufacturer VACUUBRAND. The exhaust filter reduces emissions into the workspace, the VS 16 valve allows secure isolation of connected apparatus, and the VACUU·VIEW extended gauge delivers convenient extended-range vacuum readout. With a net weight of 22.34 kg and gross weight of 25.59 kg, the unit is built for everyday laboratory service. Suitable for filtration, distillation, drying, degassing and related vacuum processes in chemical, life-science and analytical environments, the pre-configured package guarantees component compatibility and simplifies installation while providing reliable rotary-vane vacuum performance.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Pump model: RZ 6 rotary vane
- Components: Exhaust filter, VS 16 shut-off valve, VACUU·VIEW extended
- Electrical supply: 230 V/50-60 Hz
- Power cable: CH
- Manufacturer: VACUUBRAND
- Net weight: 22.34 kg
- UNSPSC: 41104900

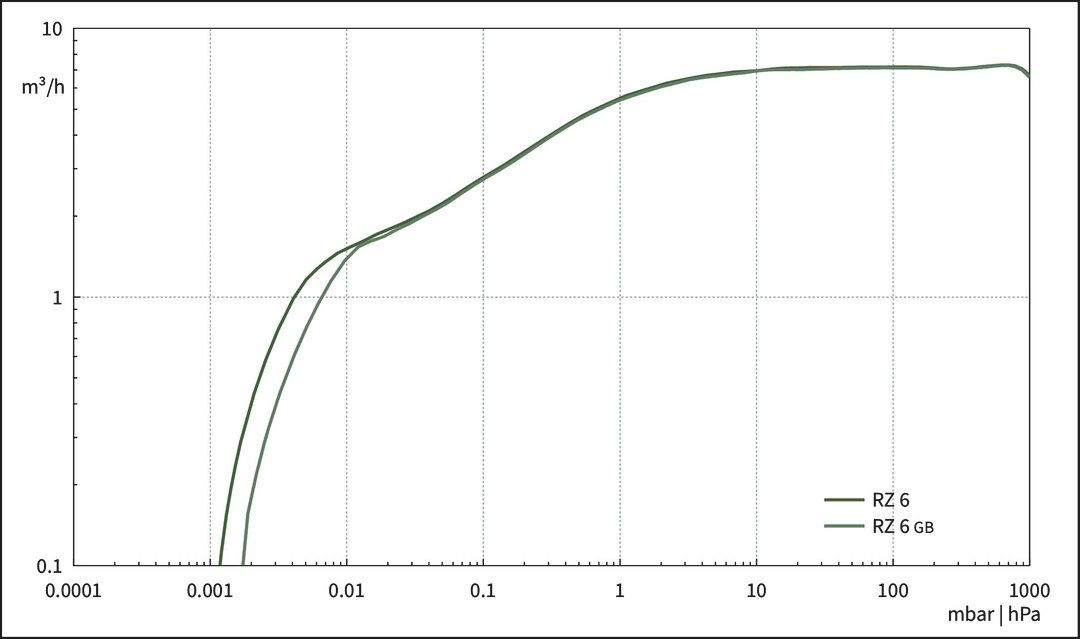

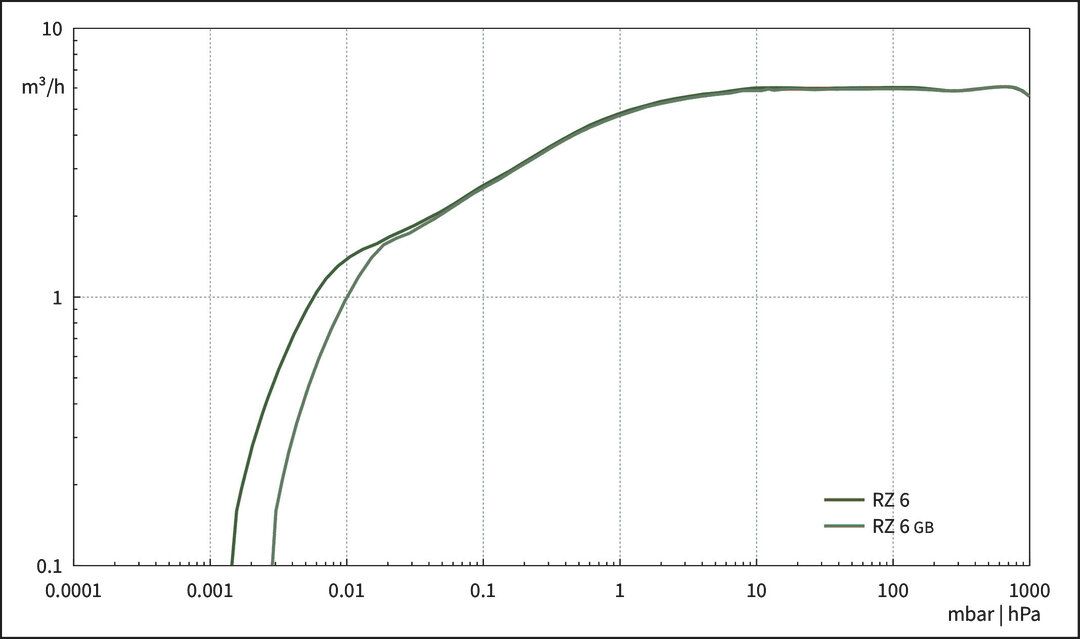

- Max. pumping speed 50 Hz: 5.7 m³/h
- Max. pumping speed 60 Hz: 4 cfm
- Ultimate partial vacuum (abs.) without gas ballast: 4 x 10⁻⁴ mbar
- Ultimate vacuum: 2 x 10⁻³ mbar / 1.5 x 10⁻³ torr
- Ultimate vacuum with gas ballast: 1 x 10⁻² mbar / 0.75 x 10⁻² torr
- Number of stages: 2
- Vacuum controller: VACUU·VIEW extended
- Water vapor tolerance with gas ballast: 40 mbar
- Lower ambient temperature (operation): 12 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Oil capacity (B-Oil) min.: 0.34 l
- Oil capacity (B-Oil) max.: 0.73 l
- Inlet connection: Small flange KF DN 16 / hose nozzle DN 10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

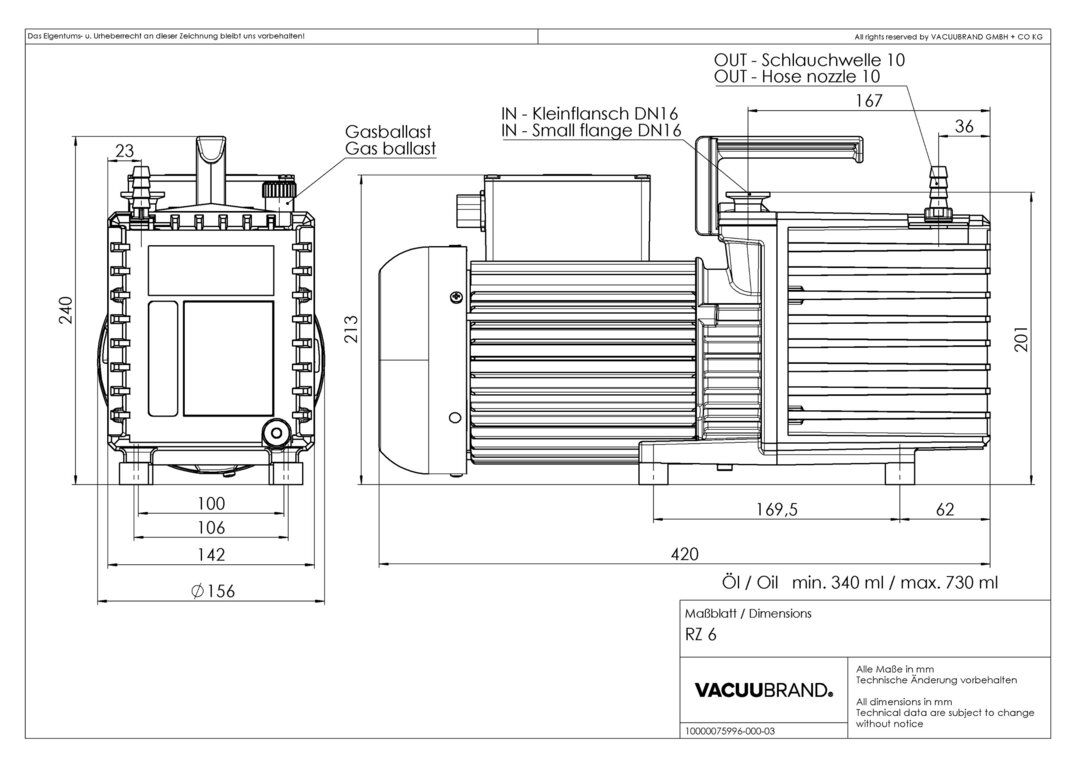

- Dimension L in mm: 420 mm
- Dimension B in mm: 230 mm
- Dimension H in mm: 240 mm
- Weight: 17.8 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 50 dBA
- NRTL certification: No
- Items supplied: Pump oil filled and completely mounted, ready for use, with manual, with oil mist filter FO, valve VS 16 and vacuum gauge VACUU·VIEW extended.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
