Description

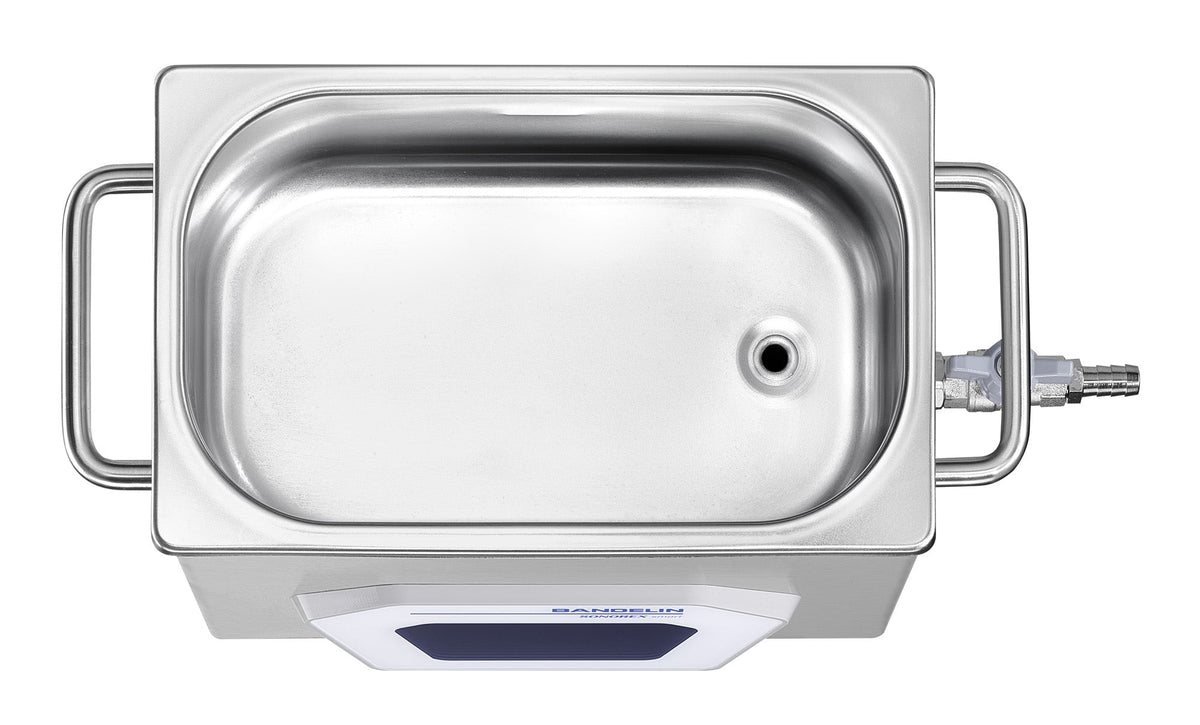

SONOREX smart ST 102 H is a high-performance ultrasonic cleaner with integrated heating for use in medical practices, laboratories and workshops. The 3 l sonication tank (internal dimensions 240 × 140 × 100 mm) cleans thoroughly yet gently by intense cavitation, including hard-to-reach areas of the objects. Nominal power is 120 W with ultrasonic peak power of 480 W; heating power is 140 W. An intuitive touchscreen enables simple setting and monitoring of ultrasonic power, cleaning duration and temperature, with definable sonication intervals and temperature limits. Internal program memory supports reliable reproducibility of validated sample-preparation processes. Fully automatic SweepTec prevents standing waves in the ultrasonic field for especially uniform cleaning, while the Degas function activatable at the start of the cycle further strengthens cleaning action. A ball-valve drain G ¼ with 25 cm hose is fitted on the right side. Matching baskets, lids and cleaning concentrates are available as accessories. This robust unit from manufacturer Bandelin has a net weight of 4.4 kg and is supplied as a complete package for laboratory and workshop cleaning tasks.
This article is part of Ultrasonic baths & cleaners, in Ultrasonic baths & lab washers.
Key features
- Pack size: 1 pkg
- Manufacturer: Bandelin
- UNSPSC: 41104900
- Model: SONOREX smart ST 102 H
- Capacity: 3 l
- Operating volume: 2 l
- Internal dimensions: 240 × 140 × 100 mm
- Tank material: stainless steel AISI 304, 1 mm, hard chromium-plating
- Outlet: ball valve G ¼ with 25 cm hose, right side
- Ultrasonic peak power: 480 W
- Ultrasonic nominal power: 120 W
- Power setting: 10-100 % in 1 % steps
- Ultrasonic frequency: 40 kHz
- Oscillating systems: 2
- Control: touchscreen
- Time setting: 1 s to 8 h in 1 s steps
- Pulse interval: 1 s-60 s
- Programme memory: 12
- Sweep: yes
- DEGAS: rapid degassing
- ECO programme: reduced energy consumption
- Interface: system bus, 4-pole M12 socket
- Safety shutdown: 8 h after the last keystroke
- Temperature range: 20-80 °C in 1 °C steps
- Heating power: 140 W
- External dimensions: 260 × 160 × 250 mm
- Housing material: stainless steel AISI 304
- Degree of protection: IP 32
- Mains: 115 V~ (± 10 %), 50/60 Hz
- Current consumption: 2.4 A at 115 V
- Mains cable: 2 m, fixed on the device
- Net weight: 4.4 kg
- Gross weight: 5.5 kg
- Technical Information Sheet:
Recently viewed
You may also like
Questions about SONOREX smart ST 102 H Ultrasonic bath with heating, Capacity/Volume: 3,0 liters
What is this article?
SONOREX smart ST 102 H Ultrasonic bath with heating, Capacity/Volume: 3,0 liters is the article on this page. Luminix Health distributes Bandelin for laboratory use. It sits in Ultrasonic baths & cleaners, inside Ultrasonic baths & lab washers, in Lab instruments.
An ultrasonic cleaner drops parts into a bath where collapsing bubbles scrub joints and bores. Tank volume and ultrasonic power are the ratings. A basket keeps items off the tank floor, where the transducers are. The liquid is usually water plus a cleaning concentrate, not a strong solvent, unless the tank is rated for it.
An ultrasonic bath cleans by cavitation: the sound collapses tiny bubbles against the surface and lifts soil out of joints a brush cannot reach. The chemistry of the bath liquid still matters. A laboratory glassware washer is the machine that replaces hand washing when the load is large or the result has to be repeatable. Rinse water quality decides whether the glass comes out spotted. The ware being washed is listed under ISO laboratory glassware.
