Description

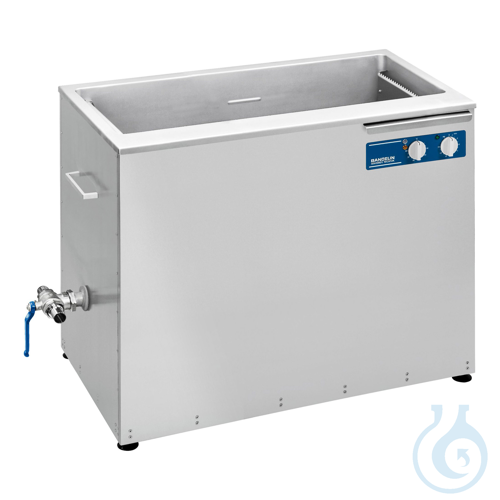

SONOREX TECHNIK RM 182 is a rinse bath with integrated overflow pocket and a working capacity of 226,0 litres, designed for industrial cleaning, service and maintenance lines without built-in heating or ultrasound. The welded oscillating tank is fabricated from 2 mm stainless steel 1.4404 to withstand intensive daily use. A modular construction supports configurations ranging from a single rinse station to a complete multi-stage cleaning line. The overflow pocket allows connection of an oil separator so that floating oil films can be removed from the process solution; a spray pipe directs surface oils into this pocket. Level switches provide dry-run protection for associated heaters and ultrasonic transducers when the bath is integrated into a larger system. Height-adjustable feet, rounded side and bottom corners, and a sloping tank floor simplify cleaning, improve fluid drainage and reduce residue build-up. Operating controls are mounted high on the tank for convenient access. Internal dimensions are 1000 × 500 × 400/420 mm. Emptying is handled by a G 1 three-way ball valve with hose and hose nozzles (brass, electroplated), fitted on the left side. Matching baskets, lids and cleaning concentrates are available as accessories from manufacturer Bandelin for coordinated ultrasonic process setups.
This article is part of Ultrasonic baths & cleaners, in Ultrasonic baths & lab washers.
Key features
- Pack size: 1 pkg
- Capacity: 226,0 l
- Internal dimensions: 1000 x 500 x 400/420 mm
- Material: stainless steel 1.4404, 2 mm
- Design: rinse bath with overflow pocket
- Drain: 3-way ball valve G 1
- Technical Information Sheet:
