Description

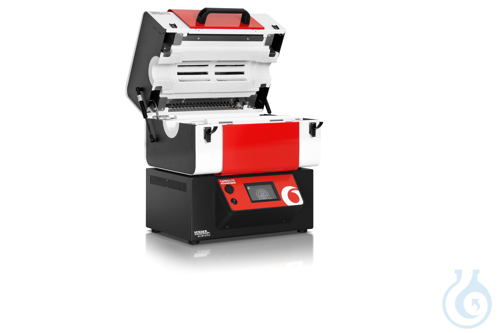

Tube furnace TS1 12/60/300 EPC3016P1 is a horizontal hinged tube furnace designed for laboratory thermal processing up to 1200 °C. Resistance-wire heating elements are embedded in high-quality vacuum-formed fibre insulation, providing a heated length of 300 mm. Maximum tube outer diameter without working tube is 60 mm; tube length is 580 mm under air atmosphere and 750 mm under protective gas. External furnace dimensions are 560 × 495 × 480 mm (H × W × D), with the separate control unit measuring 220 × 485 × 480 mm. Maximum power is 1,5 kW at 230 V single-phase, 50 Hz; a type N thermocouple and total weight of 37 kg complete the specification. The furnace body ships mounted on the control unit yet can be detached for bench-top use via a 2 m interconnect cable. The EPC3016P1 digital PID controller from manufacturer Carbolite Gero offers 24 freely programmable segments, self-optimisation, thermocouple-break protection, electronic set-point limiting, dual digital displays and Ethernet connectivity. Suitable air, protective-gas or vacuum work-tube packages must be ordered separately for operation.
This article is part of Muffle & tube furnaces, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Maximum temperature: 1200 °C
- Heated length: 300 mm
- Max. tube outer diameter: 60 mm
- Max. power: 1,5 kW
- Controller: EPC3016P1 PID, 24 segments
- Technical Information Sheet:
