Description

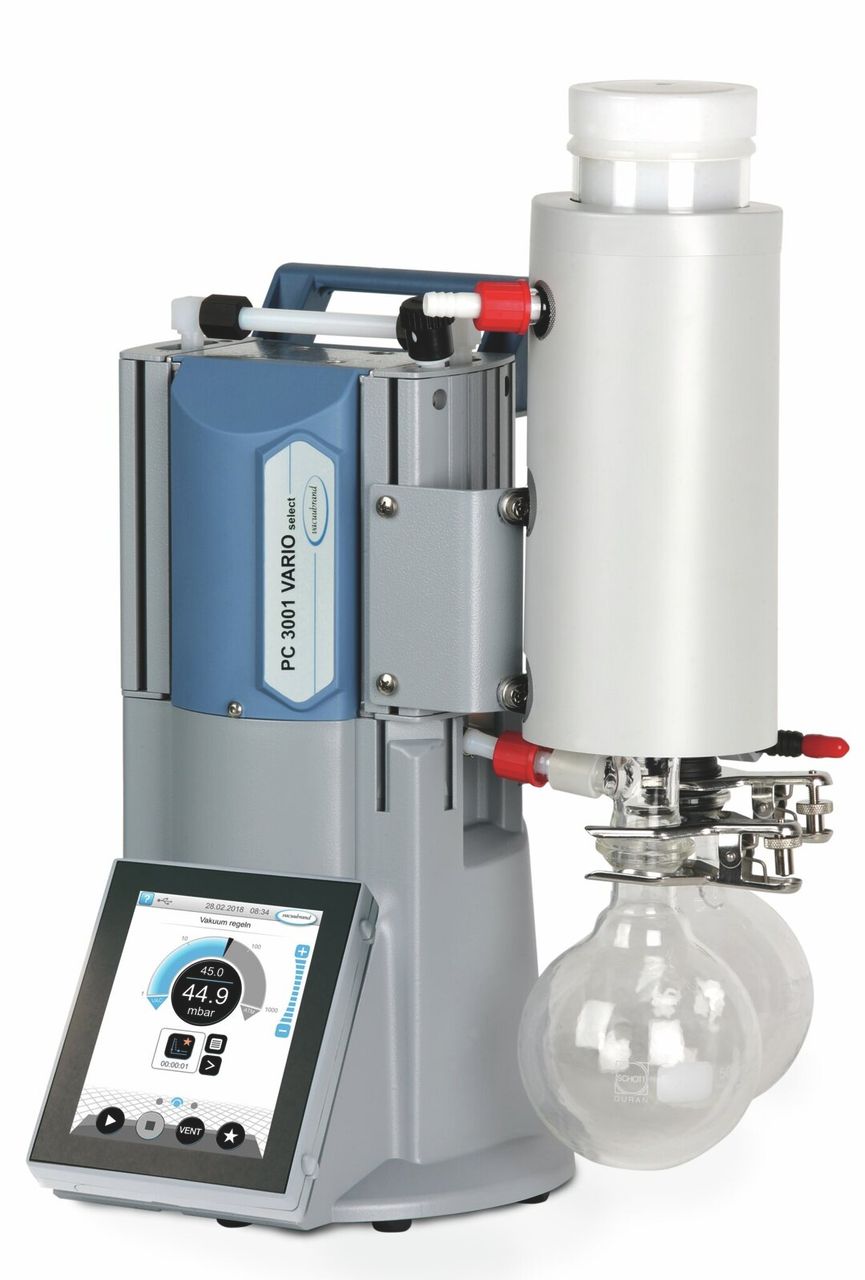

PC 3001 VARIO select TE is a VARIO chemistry pumping unit configured as a complete pumping station with an integrated dry-ice condenser for laboratory chemical vacuum applications. The system carries NRTL certification (C/US) and operates at 100-120 V / 200-230 V and 50-60 Hz. It is supplied with a CEE mains cable and delivered as one complete unit. Net weight is 9.7 kg and gross weight is 12.9 kg; the station originates from Germany. This TE version of the PC 3001 VARIO select belongs to the VARIO select range from manufacturer VACUUBRAND and combines the chemistry pumping station with a dry-ice condenser in a single assembly. Dual-voltage acceptance and recognised safety certification support installation in laboratories that require a chemistry-compatible vacuum system with condenser capability. The CEE power-cord configuration matches the corresponding mains standard. Packaged as a single piece, the unit provides a ready-to-install solution for controlled vacuum generation where dry-ice condensation is part of the process setup.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Product type: VARIO chemistry pumping unit with dry-ice condenser
- Model: PC 3001 VARIO select TE
- Power supply: 100-120 V / 200-230 V, 50-60 Hz
- NRTL certification: C/US
- Mains cable: CEE
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900
- Voltage: 200-230 V, 50-60 Hz

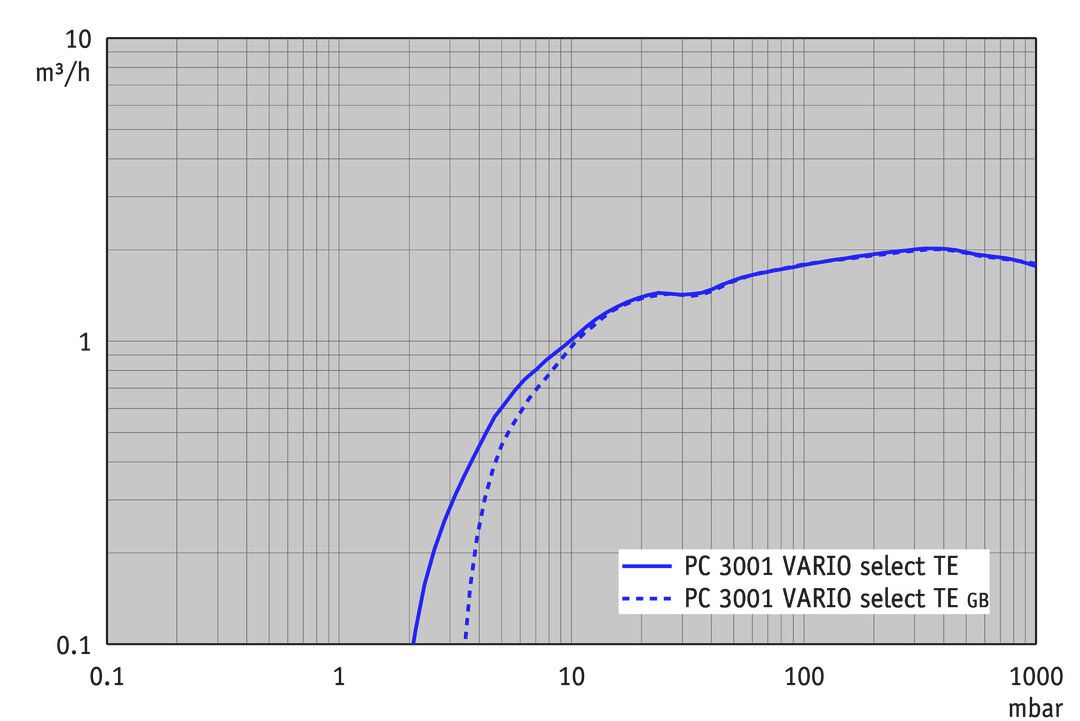

- Max. pumping speed 50 Hz: 2 m³/h
- Max. pumping speed 60 Hz: 1.18 cfm
- Ultimate vacuum: 2 mbar / 1.5 torr
- Ultimate vacuum with gas ballast: 4 mbar / 3 torr
- Number of heads: 4
- Number of stages: 3

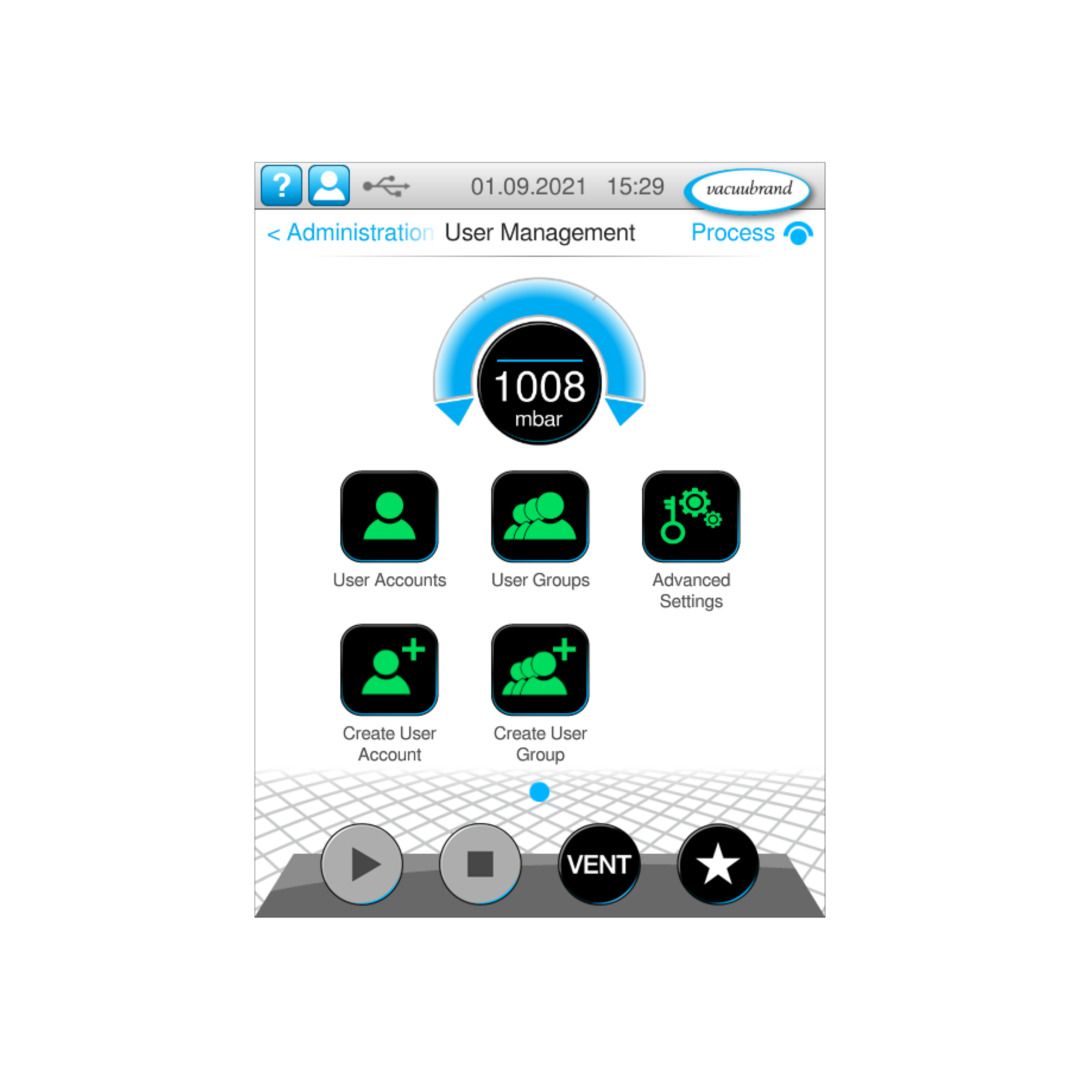

- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.16 kW
- Protection class IEC 60529: IP 20

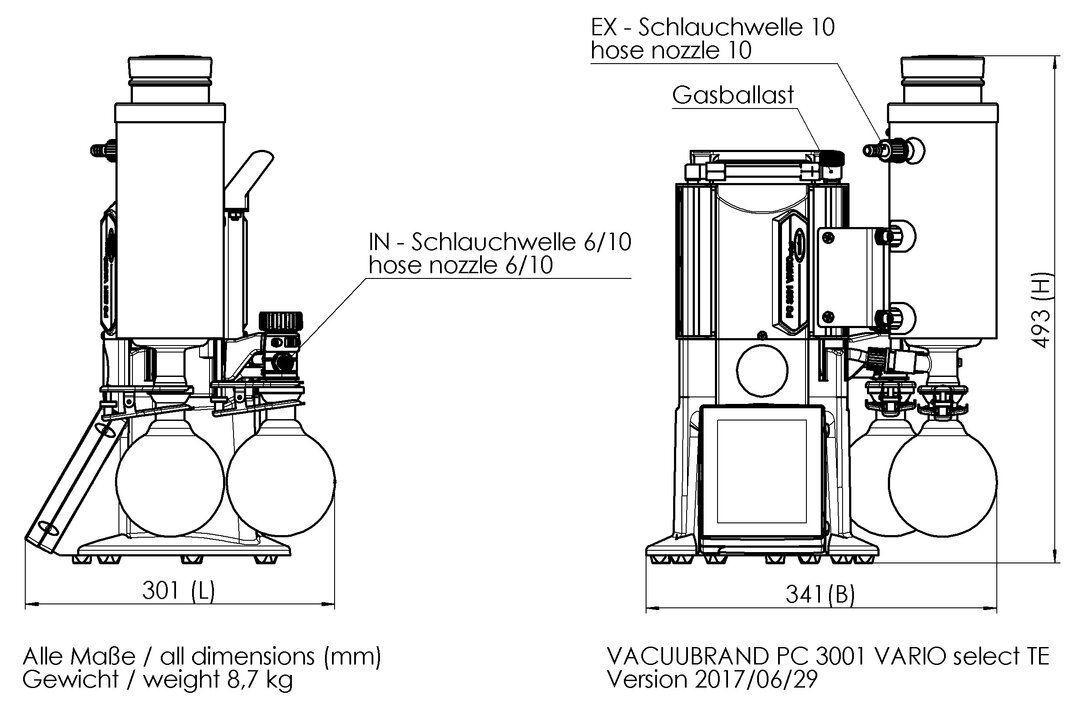

- Dimension L in mm: 301 mm
- Dimension B in mm: 341 mm
- Dimension H in mm: 493 mm
- Weight: 8.7 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 42 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
