Description

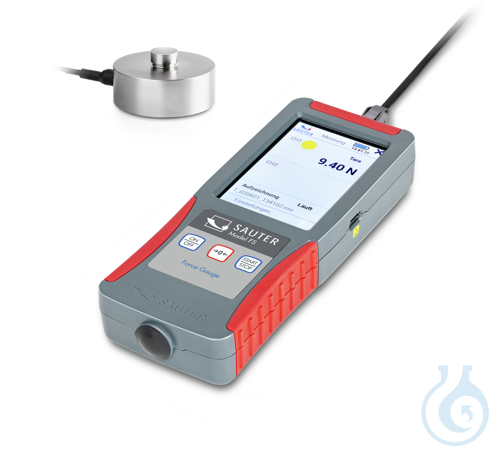

Digital force gauge FS 2-25KRQ1 with external measuring cell is a premium FS 2 instrument for force measurement up to a maximum of 25 kN. Compression force measurements are addressed by the stainless-steel load cell CR 2500-1Q1. Accuracy class is according to OIML C1, with high precision given as a combined error of 0,05 % F.S. and a rated output of 2 mV/V. Dust and splash protection reaches IP68.
This article is part of Hygrometers & humidity meters, in Temperature measurement.
Forces in different tension or compression directions can be measured with a single device. The instrument features a 3,5'' touchscreen with touch pen and comes as standard with two measuring channels for external force sensors, subsequently expandable from 2 to 4. Specific data of an external sensor are stored directly in the connector. Adjustable SI units include kg, N, kN, mN, MN, Nm, kNm and mNm. Track function for continuous readout, peak-value measurement and tolerance function are integrated, supported by 16 GB internal device memory. USB interface for data transfer and power supply is included as standard; two-point adjustment with weights or numerical adjustment is possible. Delivery is in a robust systainer® T-LOC system case complete with plug-in power supply and USB Type-C cable from manufacturer Kern. Pack size is 1 pc.
Key features
- Pack size: 1 pc
- Maximum force: 25 kN
- Measuring cell: CR 2500-1Q1 load cell, stainless steel
- Accuracy class: OIML C1, combined error 0,05 % F.S.
- Rated output: 2 mV/V
- EAN: 4045761358317
- Technical Information Sheet:
