Description

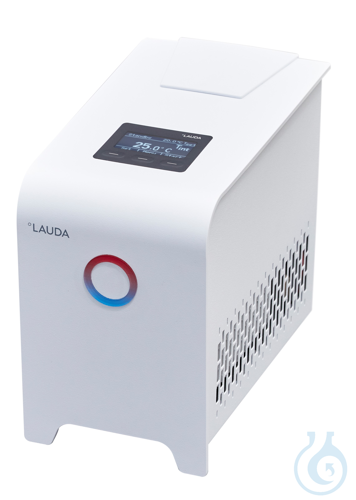

Thermoelektrische circulatiepomp 100-240 V; 50/60 Hz
Functies:
Eenvoudig te gebruiken recirculatiethermostaat met geïntegreerd koelsysteem
Helder en contrastrijk grafisch OLED-scherm
Gebruiksvriendelijke menunavigatie in eenvoudige taal.
Eenvoudige gebruikersinterface met 3 toetsen
RS 232-interface
Pompaansluitingen met snelkoppelingen voor eenvoudige toepassingswisseling
Werkt met niet-brandbare vloeistoffen (water, water/glycol).
Stille werking met laag trillingsniveau dankzij koelmiddelvrije technologie.
Compact formaat en laag gewicht
Luchtgekoeld systeem
Technische kenmerken (conform DIN 12876):
Bedrijfstemperatuurbereik: 4 ... 80 °C
Omgevingstemperatuur: 5 ... 40 °C
Temperatuurstabiliteit: 0,1 ± K
Maximaal verwarmingsvermogen: 0,2 kW
In-/uitlaataansluiting (buitenzijde): Snelkoppeling C. 1/43
Maximale vulinhoud: 0,28 L
Totale afmetingen (BxDxH): 175 x 301 x 266 mm
Gewicht: 7 kg
Internationale bescherming: I / NFL
Geluidsniveau: 57 dB(A)
Nettogewicht: 6,5 kg
Maximaal stroomverbruik: 0,24 kW
Maximale pompdruk: 0,8 bar
Maximale pompdebiet (druk): 3 l/min
Voeding: 100-240 V; 50/60 Hz
Stroomstekker: Stroomkabel met haakse stekker (CEE7/7)
Koelcapaciteit:
20 °C; Ethanol; 0,12 kW (50 Hz); 0,12 kW (60 Hz)
10 °C; Ethanol; 0,06 kW (50 Hz); 0,06 kW (60 Hz)
