Description

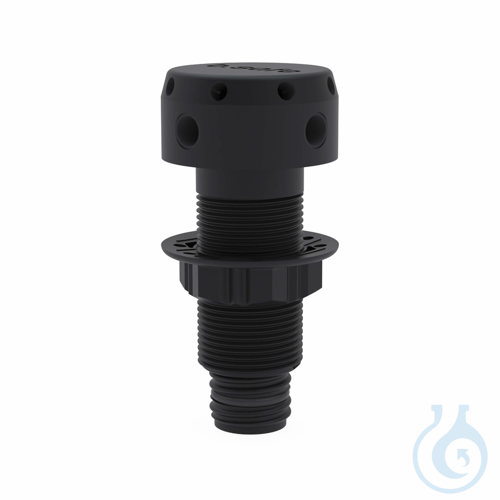

b.safe Desktop Mount Multiport IV Made of static dissipative PE-EX, suitable for boards with a thickness of 10 to 35 mm, easy fixing by counter nut. Low installation height due to connections at the sides, inclined threads for additional sloping and connection of tubes without bending. Connections at upper side: 4x2 capillary connection (thread UNF 1/4“) to connect capillaries with b.safe Fittings, 4x1 hose connection (thread NPT 1/8“) for hose connectors. Fittings and hose connectors are not included in the scope of delivery. Connection at bottom: male thread GL25 for direct connection with flexible b.safe Waste Tubes. Abmessungen: Connection upper side GL45 männlich/male Total length mm 100 Number of capillary connectors 8x UNF 1/4 No. of hose connections 4x NPT 1/8'' ''
