Description

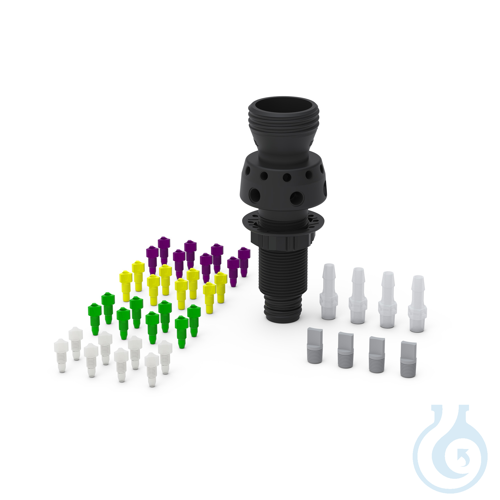

b.safe Universal bench feed-through GL45 is a conductive PE-EX laboratory table penetration for organised solvent and waste handling through work surfaces. It suits panels from 10 to 35 mm thick with a 33 mm bore and fixes securely using a self-adhesive, silicone-free sealing disc plus locknut. The upper face carries one GL45 external thread for mounting a b.safe funnel with GL45 screw cap, eight capillary ports (UNF 1/4") supplied with blind fittings and b.safe fittings for capillaries of 1,6 mm, 2,2 mm and 3,2 mm outer diameter, and four hose ports (NPT 1/8") with blind fittings and b.safe olives for tubing of 6,5–8 mm inner diameter. The underside provides a GL25 external thread for direct coupling to flexible b.safe Waste Tubes. This complete assembly from manufacturer Bohlender includes colour-coded fittings (green 1,6 mm, violet 2,2 mm, yellow 3,2 mm), blind plugs and olives. Overall length is 144 mm, supporting clean HPLC waste collection and multi-line solvent routing in the laboratory.
This article is part of Solvent waste caps, safety funnels & canisters, in Waste disposal.
Key features
- Pack size: 1 pc
- Material: conductive PE-EX
- Plate thickness range: 10–35 mm
- Bore diameter: 33 mm
- Top connections: 1x GL45, 8x UNF 1/4", 4x NPT 1/8"
- Bottom connection: GL25
Récemment consulté
Vous aimerez peut-être aussi
Browse related categories
Category
Sub-category
Bouchons pour déchets de solvants, entonnoirs de sécurité & bidons
Catalogue
Brand
Questions about b.safe Desktop Mount Universal, GL45, 8x UNF 1/4'', 4x NPT 1/8'' PE-EX,
What is this article?
b.safe Desktop Mount Universal, GL45, 8x UNF 1/4'', 4x NPT 1/8'' PE-EX, is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Bouchons pour déchets de solvants, entonnoirs de sécurité & bidons, inside Élimination des déchets, in Sécurité.
A solvent waste cap and a safety funnel close a waste can so vapour does not fill the room, while still letting waste be poured in. The thread has to match the can. A filter and a level indicator are common features. An open beaker of waste solvent is not this article.
Laboratory waste is sorted before it is carried away. A solvent waste can has a cap and often a funnel that limits vapour. A sharps container is rigid and closable. An autoclave bag is for material that will be sterilised before it is ordinary waste. The container has to survive the chemical that goes into it. A bag that dissolves is not a container. Classification of the chemicals is on ECHA. Transport of dangerous goods is the UNECE framework. Workplace practice is EU-OSHA.
Which category should I open next?
The category is Élimination des déchets. The sub-category is Bouchons pour déchets de solvants, entonnoirs de sécurité & bidons. The catalogue is Sécurité.
Shelves beside this one are Sacs d'autoclave & d'élimination, Conteneurs à déchets & bidons and Conteneurs pour objets tranchants, absorbants & kits anti-déversement.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
