Description

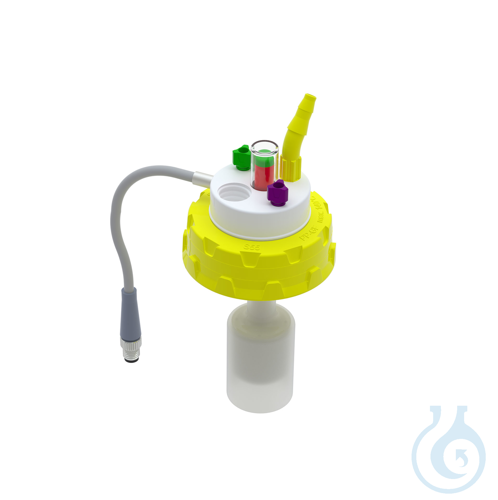

b.safe Control Waste Cap S55 est un bouchon à vis en polypropylene pour filetages de canister S55 qui combine une collecte de déchets fermée avec une surveillance électronique et optique du niveau de remplissage. Un insert PTFE librement rotatif porte un câble fixe d'environ 0.5 m pour le raccordement à un b.safe Display, tandis qu'un voyant et une tige indicatrice permettent des contrôles visuels directs du niveau de remplissage. Deux orifices UNF 1/4" reçoivent des raccords PFA pour capillaires de diamètre extérieur 1.6 mm, 2.2 mm et 3.2 mm ; le jeu livré comprend deux raccords verts, deux violets et deux jaunes plus un raccord borgne blanc laiteux. Un olive de tuyau étagé NPT 1/8" convient aux tubes de diamètre intérieur 5.5–8 mm, et un filetage GL14 accepte un filtre d'échappement b.safe (non inclus). Proposé par le fabricant Bohlender, cette disposition convient aux canisters de déchets de solvants HPLC lorsque deux lignes capillaires, un raccord de tuyau et un contrôle de niveau actif sont requis. L'unité de livraison est un assemblage de bouchon complet.
Cet article fait partie de Raccords HPLC, tuyaux & filtres inline, dans Colonnes HPLC & accessoires.
Caractéristiques
- Conditionnement: 1 pièce
- Matériau: Bouchon à vis PP avec insert PTFE
- Filetage de bidon: S55
- Orifices pour capillaires: 2× UNF 1/4"
- Raccordement de tuyau: 1× olive NPT 1/8" pour ID 5.5–8 mm
- Raccords PFA: 2× Ø 1.6 / 2.2 / 3.2 mm plus 1 raccord borgne
