Description

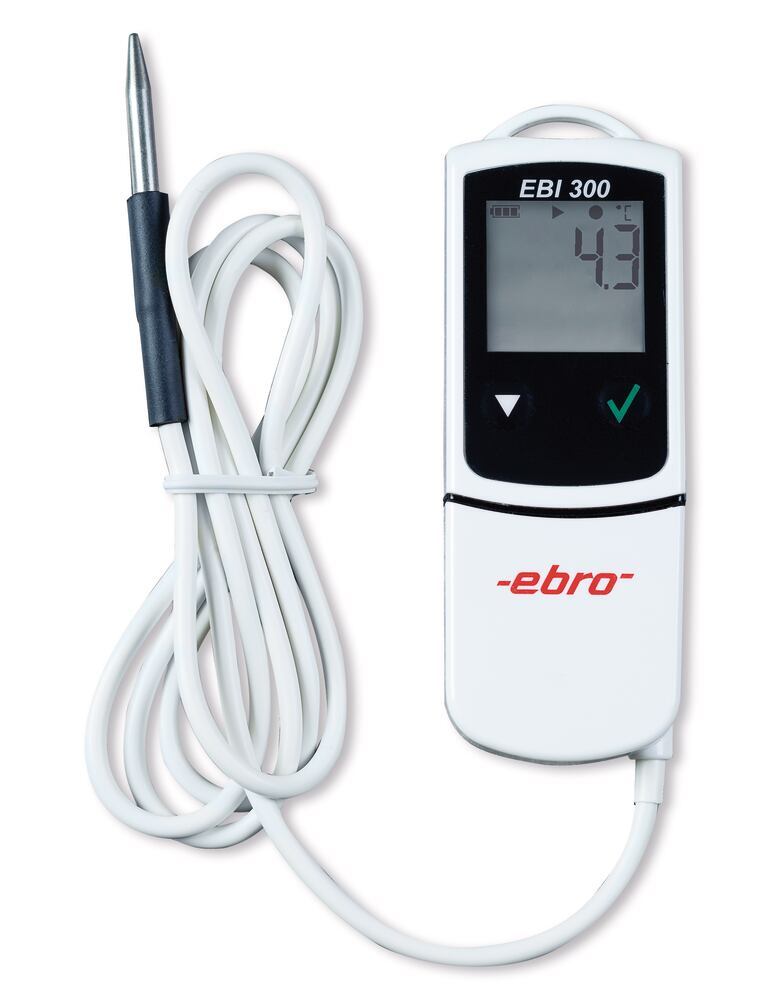

EBI 300 TE data logger, also with external temperature gauge, includes calibration certificate and battery. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For monitoring delicate goods such as medicines, vaccines and food. With factory calibration certificate.
- Integrated USB port for connecting the logger directly to the PC; no interface required
- With internal NTC temperature sensor. An external sensor can also be connected via the USB port
- With alarm management (visual when limit value is breached)
- Data is read out automatically via PDF report with all important measurement data (graphical temperature curve, instances of limit values being exceeded, min./max. values)
- Windows-compatible software: logger programming, data readout, graphical and tabular display, protocol printout, data export to Microsoft® Excel and PDF. FDA 21 CFR Part 11 functionality can be selected as an option. Available to download free of charge
- The logger can be programmed regardless of the software at www.ebi300.com
- Compliant with DIN EN 12830/HACCP and ATP
For external temperature gauge: stainless steel measuring rod, L 50 mm x Ø 4 mm, pointed at the front. PVC connecting cable, L 1 m, waterproof.
Delivery incl. external temperature gauge, calibration certificate and battery.
Technical Information
| Type | EBI 300-TE |
| Calibration | factory calibration (test points: -20, 0, +60 °C) |
| Version | with internal and external temperature gauge |
| Parameters | temperature |
| Temperature measuring range | -30 to +70 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.5 °C (-20 to +40 °C) ±0.8 °C (outside) |
| Sensor type | NTC |
| Display | yes |
| Data memory | 40,000 measured values |
| Measuring cycle | 1 min to 24 h |
| Port | USB (PC, sensor) |
| IP rating | 65 |
| Min./max. function | yes |
| L x W x H | 91 x 33 x 14 mm |
| Sensor: Ø x L | 4 x 50 mm |
| Weight | 140 g |
| Power supply | 1x CR 2450 button cell (3 V) |
