Description

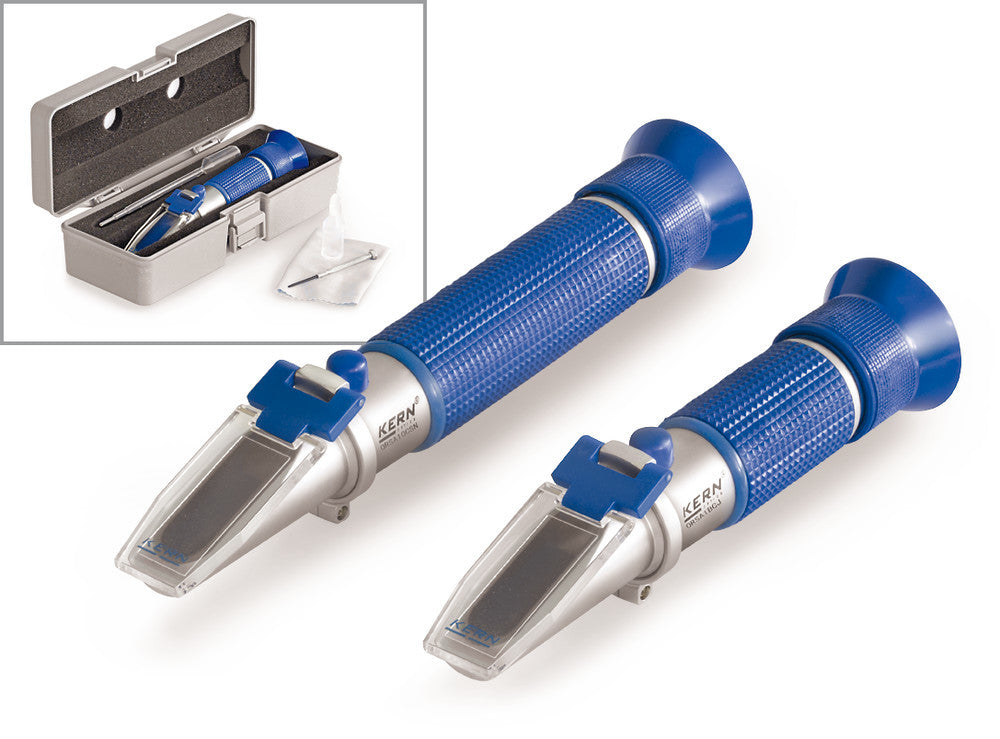

Handh. refractometer, ORA 2PA (with ATC), Analogue
For measuring the refractive index of transparent substances in a liquid state.
- Eyepiece with dioptre compensation
- Scale is precisely calculated and checked, with very thin and clear lines
- Without or with automatic temperature compensation (ATC)Measuring temperature with ATC: 10 to 30 °CMeasuring temperature without ATC: 20 °C
For measuring the specific urine weight (density) and the serum content (serum protein in urine). Optional output of the measurement result in Brix or refractive index.
Delivery incl. calibration solution and storage box.
Technical Information
| Type | ORA 2PA |
| Application | Hospitals, doctors’ surgeries, medical training centres, care facilities |
| Scale | Serum protein, urine (spec. wt.), refractive index |
| Measuring range | 0-12 g/100 ml, 1.000-1.050 (spec. weight, 1.3330-1.3600 nD |
| Resolution | 0.2 g/100 ml, 0.002 (urine, spec. weight.), 0.0005 nD |
| Temp. compensation | Yes |
| Temperature compensation range | +10 to +30 °C |
