Description

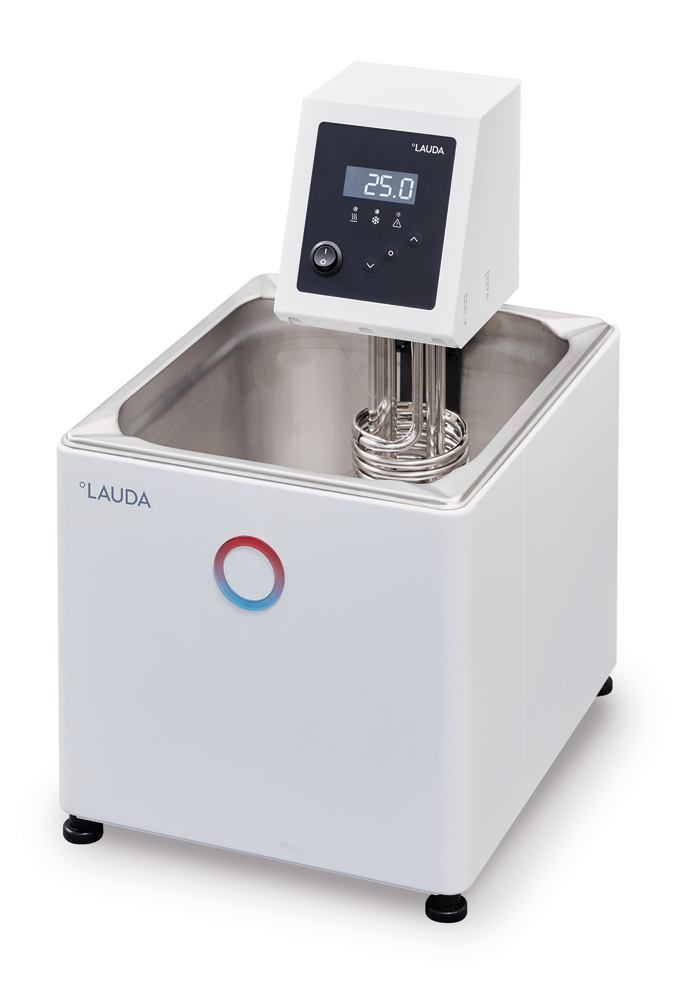

Immersion thermostat with bath, Alpha A 12, +25 to +100 °C, Bath volume 8 to 12 l
- 3-button operation
- LED display with 0.1 °C display resolution
- Display of actual and setpoint values
- With timer function (max. operating time 99 h, 59 min)
- Heating and malfunction indicator lamp
- Pump capacity can be reduced to 5 l/min
- Thermostats are fixed using a fixing clamp, therefore also suitable for other similar standard bath tubs (min. bath depth 150 mm)
- Can be fitted with pump circulation set for temperature control of external sealed applications (please order separately)
- I (NFL) = non-flammable liquids
Delivery incl. stainless steel bath tub.
Technical Information
| Type | Alpha A 12 |
| Operating temperature | +25 to +100 °C |
| Temperature constancy | ±0,05 K |
| Display resolution | 0,1 °C |
| Heating output | 1500 W |
| Max. pump pressure | 200 mbar |
| Max. flow | 15 l/min |
| Bath volume | 8-12 l |
| Bath opening | 235 x 161 mm |
| Inner depth | 200 mm |
| Outer width | 270 mm |
| Outer depth | 332 mm |
| Outer height | 420 mm |
| Safety class | I (NFL) |
