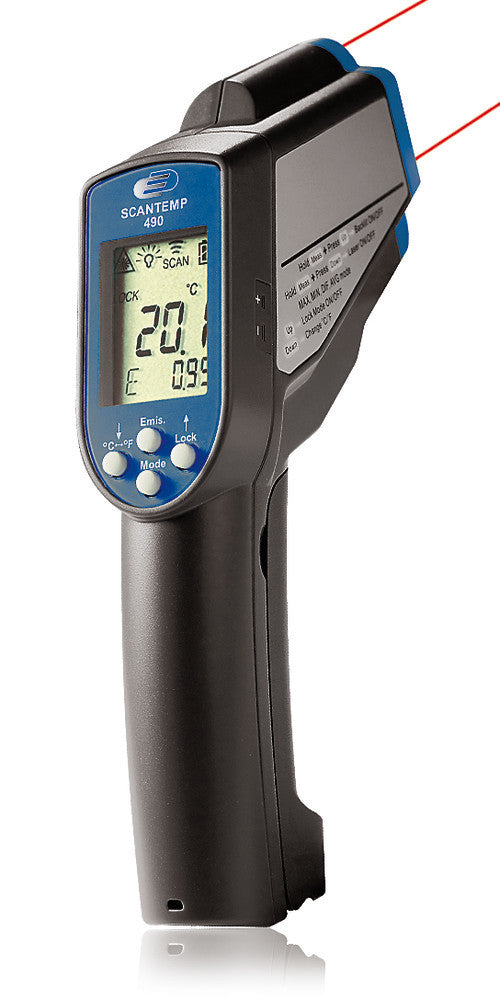

Infrared thermometer Scantemp 490, measuring range -60.0 - +1000 °C
- Infrared measuring range of up to +500 °C
- Mini TE input for NiCr-Ni (type K) thermocouple sensor available
- Min/max/hold function
- Storage of differential and mean values
- Visual and audible alarm when limits are exceeded
- LCD display for simultaneous display of measured value and min/max or limit values
- Emission level can be adjusted
- With backlit display
With double spot laser for indicating the actual measurement area in each measuring distance.
Delivery incl. batteries. No temperature sensor is included, please order separately if required.
Technical Information
| Type | Scantemp 490 |
| Parameters | temperature |
| Infrared measuring range | -60 to +1000 °C |
| Thermocouple input measuring range | -64 to +1370 °C |
| Temperature resolution | 0.1 °C (up to +999.9 °C) 1 °C (from 1000 °C) |
| Temperature accuracy | infrared: ±2 °C or 2% (largest value applies) thermocouple input: ±1 °C or 1% (largest value applies) |
| Connection | Mini TE |
| Measuring distance : measuring spot ratio | 50:1 |
| Measurement spot marking | yes |
| Emissivity | 0,10-1,00 |
| W x D x H | 45 x 145 x 215 mm |
| Weight | 380 g |
| Power supply | 2x battery Micro/AAA 1.5 V |
