Description

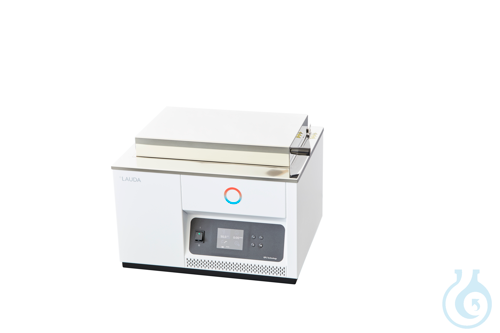

LAUDA Hydro H 16 A
Water bath 230 V; 50/60 Hz
Features:
Simple to operate water bath
TFT display with clear display of all process data
Setting and displaying temperature values in increments of 0.1°C.
Setting the timer's time values in hours (h) and minutes (min).
Membrane keypad with concise symbols
Digital setpoint adjustment
Adjustable trigger points for over- and under-temperature alarms up to max. +/- 10 K
Temperature display can be switched from °C to °F
1-point temperature controller
Optical and acoustic alarm for low-level and over/under temperature
as well as for sensor break/short-circuit
Electronic monitoring of the temperature controller
Three application-specific timer functions.
With integrated circulation system to improve spatial temperature stability
Bath interior, cover, sieve plate and heating element are made of stainless steel.
Bath vessel with drain valve
Heat insulating lid made of stainless steel, double-walled with inner curvature
prevents condensate from dripping back into the vessels
Lid and perforated tray as standard.
Technical Features:
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 1.5 kW
Size of bath (W x D x H): 400 x 245 x 165 mm
Bath volume min. / max.: 7.5 / 13.9 L
Overall dimensions (WxDxH): 500 x 440 x 345 mm
Weight: 16 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)
