LAUDA Hydro H 24 Bain-marie 230 V; 50/60 Hz

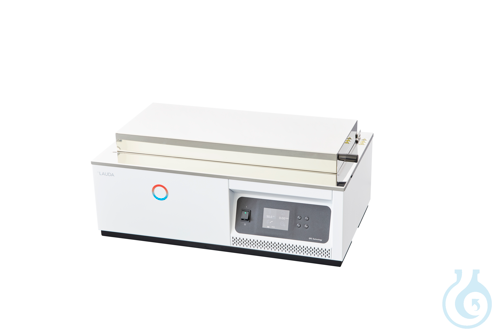

LAUDA Hydro H 24 water bath is a laboratory water bath for controlled heating applications in the working range 25 to 100 °C. Process data appear on a TFT display, with temperature set and indicated in 0,1 °C steps and timer values entered in hours and minutes through a foil keypad with clear symbols. Digital setpoint setting, switchable °C/°F display and a one-point temperature controller facilitate everyday laboratory use. Adjustable over- and undertemperature alarm points up to ±10 K, plus optical and acoustic alarms for low water, temperature deviation and sensor break or short circuit, strengthen process safety; electronic functional monitoring of the temperature controller is built in. Three application-specific timer functions are offered. The bath body, cover frame, sieve bottom and heater are stainless steel, and the bath vessel is fitted with a drain cock. A heat-insulating, double-walled stainless steel lid with inner curvature reduces condensate drip-back into vessels; lid and sieve bottom are supplied as standard. From manufacturer Lauda, the bath measures 600 × 245 × 165 mm with a usable volume of 11,3 to 20,9 L, external dimensions of 700 × 440 × 275 mm and a weight of 18 kg. Maximum heating power is 1,5 kW on 230 V; 50/60 Hz with angled Schuko (CEE7/7) mains cable, temperature constancy ±0,1 K and ambient range 10 to 40 °C.

This article is part of Water & oil baths, in Heating, drying & cooling.

Key features

• Pack size: 1 pc
• Working temperature range: 25 … 100 °C
• Temperature constancy: ±0,1 K
• Heating power max.: 1,5 kW
• Bath size (W×D×H): 600 × 245 × 165 mm
• Bath volume min./max.: 11,3 / 20,9 L
• Technical Information Sheet:
