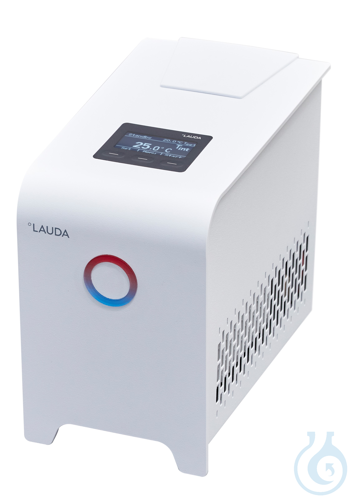

LAUDA LOOP L 100 Thermoelectric circulator 100-240 V; 50/60 Hz

LAUDA LOOP L 100
Thermoelectric circulator 100-240 V; 50/60 Hz

Features:
Easy to use recirculation thermostat with integrated cooling system
Bright and high-contrast graphic OLED display
User friendly menu navigation in plain language
Facile 3-key user interface
RS 232 interface
Pump connectors with fast couplings for simple change of applications
Operates with non flammable liquids (water,water/glycol)
Quiet and low vibration level operation due to refrigerant free cooling technology
Compact overall size and low weight
Air cooled system

Technical Features (according to DIN 12876):
Working temperature range: 4 ... 80 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 0.2 kW
In / Outlet connection thread (outside): Quick C. 1/43
Filling volume max.: 0.28 L
Overall dimensions (WxDxH): 175 x 301 x 266 mm
Weight: 7 kg
International protection: I / NFL
Noise level: 57 dB(A)
Net Weight: 6.5 kg
Power consumption max.: 0.24 kW
Pump Pressure max.: 0,8 bar
Pump flow rate max. (pressure): 3 L/min
Power supply: 100-240 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling Capacity:
20 °C; Ethanol; 0,12 kW (50 Hz); 0,12 kW (60 Hz)
10 °C; Ethanol; 0,06 kW (50 Hz); 0,06 kW (60 Hz)
