Description

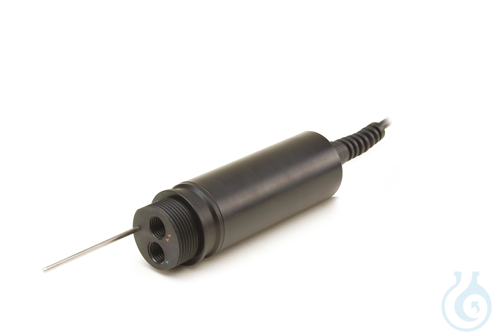

Multiparameter probe for HI98195, without sensors, 20 m cable is a durable probe housing for sensors measuring pH, redox potential, conductivity and temperature with the HI98195 multiparameter meter. The Quick Connect DIN interface provides a fast, secure and watertight link to the handheld unit. Sensors are detected automatically when attached; parameters for unused ports are deactivated or omitted from the display. Screw connections and colour-coded ports make on-site sensor exchange simple and error-resistant. A multi-core shielded and reinforced cable of 20 m length offers a tensile load rating of 68 kg for non-continuous use. Two ports accommodate pH or pH/ORP and conductivity sensors. The assembly is IP68 protected for freshwater, brackish water or seawater applications and may be immersed to a maximum depth of 20 m. Without cable the probe measures 342 mm in length and 46 mm in diameter and weighs 570 g. Wetted parts comprise an ABS body, nylon threads, ABS/AISI 316 protective sleeve, AISI 316 temperature probe and EPDM O-ring seals. Supplied without sensors and protective cap as one piece from manufacturer Hanna Instruments for multiparameter field and laboratory monitoring.
This article is part of Dissolved oxygen & multiparameter meters, in pH & electrochemistry.
Key features
- Pack size: 1 pc
- Cable length: 20 m
- Sensor ports: two (pH or pH/ORP, conductivity)
- Protection class: IP68
- Maximum immersion depth: 20 m
- Dimensions (without cable): 342 mm × 46 mm Ø
