Description

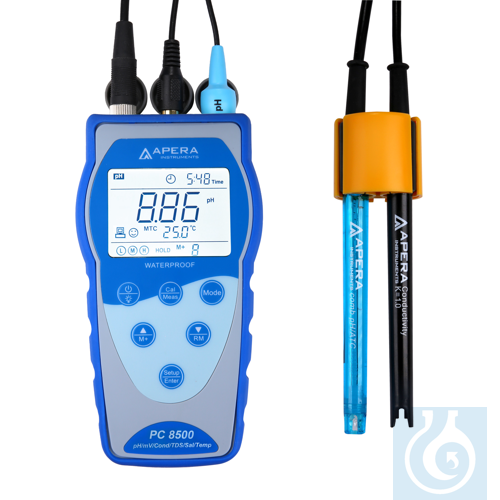

The PC8500 from Apera Instruments is a handy and easy-to-use meter for the determination of pH, conductivity (EC), TDS, salinity, ORP (electrode sold separately e.g. 301Pt-C) and temperature. It is protected by a silicone cover and is waterproof and dustproof (IP57), making it particularly well suited for field use, even in harsh environments. The 201T-F pH electrode features a unique low-resistance glass membrane for fast and accurate pH measurements. The 2031T-S conductivity electrode is based on our BPB (Brush-resistant Platinum Black) electrode technology and is characterized by its precision and very wide measuring range (0 - 200 mS/cm). Both electrodes are equipped with an integrated temperature sensor, which enables automatic temperature compensation (ATC) in each case.
The PC8500 has a memory function and GLP data management with storage for up to 500 memory groups. It can be connected to a PC or laptop via USB to either read out the memory groups or perform real-time storage.
- Equipped with the 201T-F pH electrode and the 2031T-S conductivity electrode, each with integrated temperature sensor
- Silicone case provides safe & firm grip and protects from shocks
- Waterproof and dustproof (IP57) for use in harsh environments
- Fold-out stand for convenient indoor operation
- Quick and easy 1- to 3-point calibration
- Large, illuminated LCD simultaneously displays conductivity value, pH value and temperature, as well as additional measurement and calibration information
- Self-diagnosis supports calibration or troubleshooting
- GLP data management (500 memory groups) with data output via USB, also with real-time storage function
- BNC connector is compatible with LabSen® series electrodes for even more application possibilities
Technical Specifications
| pH | Measuring range | -2.00 to 16.00 pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | ±0.01 pH ±1 digit | |
| Temperature compensation | 0 to 100 ° C (automatic or manual) | |
| calibration | 1 to 3 points, automatic | |
| mV | Measuring range | ±2000 mV |
| Resolution | 0.1/1 mV | |
| Accuracy | ±0.1% F.S ±1 digit | |
| Conductivity (EC) | Measuring range | 0 to 200 mS/cm: (0.00 ~ 19.99) μS/cm;(20.0 ~ 199.9) μS/cm; (200 ~ 1999) μS/cm; (2.00 ~ 19.99) mS/cm; (20.0 ~ 199.9) mS/cm TDS: 0.10 to 100 g/l |
| Resolution | 0.01/0.1/1 μS/cm; 0.01/0.1 mS/cm | |
| Accuracy | ±1,0% F.S ±1 digit | |
| Cell constant | 0,1/1/10 cm-1 | |
| Temperature compensation | 0 to 50 °C (automatic or manual) | |
| calibration | 1 to 3 points, automatic or manual | |
| Temperature | Measuring range | 0 to 100 °C |
| Resolution | 0,1 °C | |
| Accuracy | ±0,5 °C ±1 digit | |
| Further | Memory locations | 500 records |
| Memory values | Numbering, date, time, Measured value, unit, temperature | |
| Interface | USB | |
| Power supply | 3 x AA batteries / DC 5V (USB port) | |
| Housing protection class | IP57 | |
| Electrode connections | BNC (pH/ ORP), 8-pin (conductivity), RCA (temperature) | |
| Dimensions / Weight | 88x170x33 mm / 313 g with case: 360x270x76 mm / 1,4 kg |
A complete set contains:
- PC8500 pH/conductivity meter
- 201T-F pH electrode
- 2301T-S Conductivity electrode
- pH calibration solution (pH 4.00; pH 7.00; pH 10.01) 50ml each
- EC calibration solution (84 μS/cm; 1413 μS/cm; 12.88 mS/cm) 50ml each.
- USB cable
- USB stick with PC-Link software
- Electrode clip
- Screwdriver
- Manual
- Carrying case
The meter is RoHS and EC certified and has a 3 year warranty (6 months on the electrode).
