Description

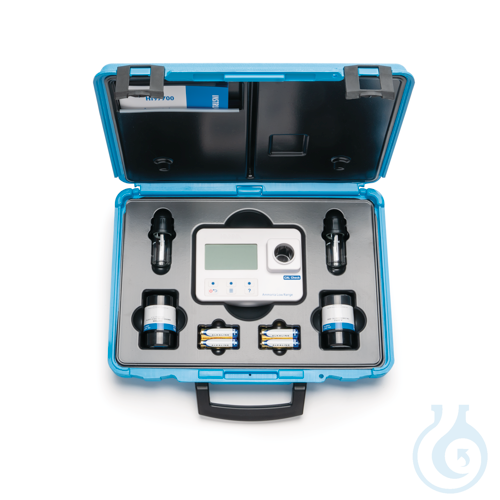

The HI97715C ammonia medium range photometer is a portable, battery-powered instrument for photometric determination of ammonia from 0 to 10,00 mg/L as ammonia-nitrogen by the Nessler method; results can also be shown as ammonia or ammonium. Dedicated single-parameter meters in the HI97xxx series from manufacturer Hanna Instruments succeed the HI96xxx line and combine reliability and accuracy with simple operation. An advanced optical system uses an LED with a narrow-band interference filter for precise, repeatable readings. The optics are sealed against dust, dirt and external water, and the holder positions round 24,6 mm cuvettes consistently. CAL Check with NIST-traceable standards enables performance verification and recalibration at any time. A built-in tutorial guides sample preparation and reagent volumes step by step. German menu guidance, storage of 200 readings, GLP with last calibration recall, automatic shut-off, battery-level display, reaction timer and clear error messages support routine use. The IP67-rated unit runs on three 1,5 V AA batteries for more than 800 measurements, uses wavelengths of 525 nm and 610 nm with a silicon photocell detector, and is supplied in a carrying case including standards for field and laboratory ammonia monitoring in water.
This article is part of Photometers & spectrophotometers, in Spectroscopy & photometry.
Key features
- Pack size: 1 pc
- Measurement range: 0 to 10,00 mg/L (as ammonia-nitrogen)
- Method: Nessler
- Wavelength: 525 nm, 610 nm
- Cuvette type: round, 24,6 mm diameter
- Protection rating: IP67
Récemment consulté
Vous aimerez peut-être aussi
Questions about Portable Photometer for Ammonia Medium Range with CAL Check
What is this article?
Portable Photometer for Ammonia Medium Range with CAL Check is the article on this page. Luminix Health distributes Hanna Instruments for laboratory use. It sits in Photometers & spectrophotometers, inside Spectroscopy & photometry, in Instruments de précision.
A photometer reads absorbance at one or a few wavelengths. A spectrophotometer scans or selects many. Both send light through a cuvette or a well. The wavelength range, UV or visible, and the bandwidth decide what can be measured. A visible-only instrument cannot read a nucleic acid at 260 nm.
A photometer or spectrophotometer sends light through a sample and reads how much was absorbed. In the range where the Beer–Lambert relation holds, absorbance tracks concentration. A refractometer reads how a liquid bends light, which tracks dissolved solids. A polarimeter reads the rotation of polarised light, the classical measurement for sugars. The lamp, the wavelength and the cuvette path length are the three things that have to be right before the number means anything. The optical quantities trace to NIST and the BIPM.
