Description

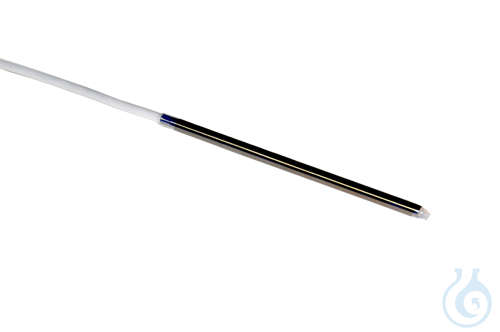

Resistance thermometer WT-K-6/200-2000 PHYSICS 0,01 °C is a Pt100 cable resistance thermometer for precise laboratory temperature measurement. Configured to DIN EN 60751 Class A in 4-wire technique, it combines a stainless steel protective tube of 6 mm diameter and 200 mm nominal length with a directly attached connection cable. The measuring tip and the adjoining 20 mm of cable carry a PTFE coating, while the 2 m lead is VA wire braid with Teflon insulation for mechanical robustness and chemical resistance. The operating range covers −50 °C to +200 °C. Connection is made via a Physics plug that provides 0,01 °C resolution and is compatible with PHYSICS 100 and PHYSICS 300 instruments. This PTFE-sheathed assembly (WT-K-6/200-2000-So) from manufacturer Schneider is intended for applications that require Class A Pt100 accuracy together with a durable cable interface. Supplied as one piece, the sensor supports reliable temperature acquisition in research, quality control and process monitoring environments where PTFE protection of the tip is advantageous.
This article is part of Laboratory glass thermometers, in Temperature measurement.
Key features
- Pack size: 1 pc
- Product type: WT-K-6
- Temperature sensor: Pt100, DIN EN 60751 Class A, 4-wire
- Protective tube: ø 6 mm, nominal length 200 mm
- Cable: 2 m VA braid/Teflon, PTFE tip coating
- EAN: 4058072027551
Récemment consulté
Vous aimerez peut-être aussi
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about RESISTANCE THERMOMETER, WT-K-6/200-2000 PHYSICS 0,01°C #Standard
What is this article?
RESISTANCE THERMOMETER, WT-K-6/200-2000 PHYSICS 0,01°C #Standard is the article on this page. Luminix Health distributes Schneider for laboratory use. It sits in Laboratory glass thermometers, inside Temperature measurement, in Instruments de précision.
A liquid-in-glass thermometer is a calibrated column, often with a stated immersion depth, total or partial. The range and the division decide the reading. A partial-immersion thermometer read at the wrong depth is wrong by design.
A thermometer reports a temperature. A liquid-in-glass thermometer is a calibrated column. A digital thermometer is a sensor and a display, and the sensor, not the display, is what is calibrated. An infrared thermometer reads a surface and depends on emissivity. A data logger stores the reading over time. Without a stated uncertainty and a calibration point, the number is only an indication. The scale is maintained by the BIPM and compared by EURAMET. Accreditation is BELAC.
