Description

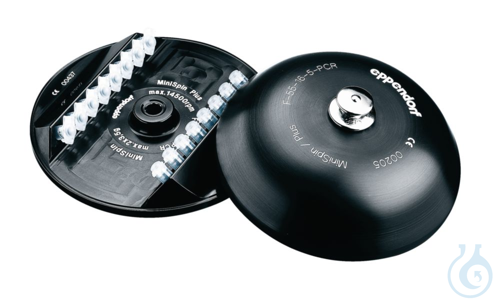

Rotor F-55-16-5 PCR with aluminium lid is a fixed-angle rotor for 2 × 8 PCR tube strips on MiniSpin® and MiniSpin® plus centrifuges. It offers 16 sample positions at a 55° angle and accepts vessels with a maximum diameter of 5 mm, supporting routine PCR handling in molecular biology and life-science laboratories. The aluminium rotor lid is included for secure closure during runs. Designed for MiniSpin®/MiniSpin® plus platforms, this complete rotor assembly from manufacturer Eppendorf enables simultaneous processing of two PCR strips in a compact benchtop format. The 16-place layout streamlines preparation and post-amplification steps where small-volume PCR vessels must be spun reliably. With a net weight of 0,720 kg and a packaging volume of 0,007 m³, the unit is suited to laboratories that need a dedicated PCR-strip rotor for the MiniSpin® series. Fixed-angle geometry and the matching lid help maintain stable tube seating throughout centrifugation of strip-format samples.
This article is part of PCR plates, tubes & strips, in Microplates, PCR & reaction tubes.
Key features
- Pack size: 1 pc
- Rotor model: F-55-16-5 PCR
- Sample positions: 16
- Fixed angle: 55°
- Max. vessel diameter: 5 mm
- Lid material: Aluminium
- Technical Information Sheet:
